Stainless Steel Flexible Hose

Hengshui Huiya New-Mat Technology Co., Ltd.
Stainless Steel Flexible Hose thumbnail-1
Stainless Steel Flexible Hose thumbnail-2
Stainless Steel Flexible Hose thumbnail-3
Stainless Steel Flexible Hose photo-1

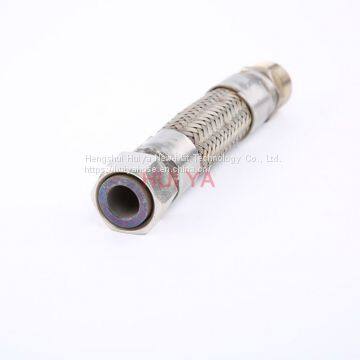

Stainless Steel Flexible Hose photo-2

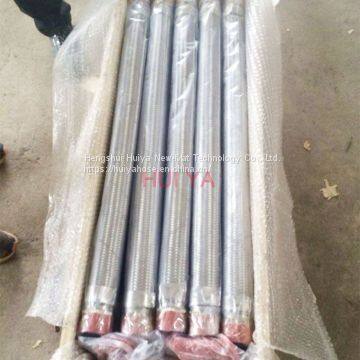

Stainless Steel Flexible Hose photo-3
Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HUIYA
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin,Shanghai,Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HUIYA
Place of Origin China

Stainless Steel Flexible Hose

PRODUCT PARAMETERS

Metal flexible hose is made of stainless steel corrugated hose and outer braided layer (one or multiple layers of wire or steel belt net) with joints or flange at both ends. It is used for conveying all kinds of medium. Its characteristic is: corrosion-resistance, high temperature resistance, low temperature resistance, light weight, small volume, and good flexibility.

Metal flexible hose is widely used in the fields of petroleum, chemical industry, aerospace, metallurgy, electricity, gas, building, mechanical, construction, iron and steel, paper making, fabric, medicine, food and vessels for conveying water, steam, oil, chemicals, etc.

Inner tube: T321 corrugated pipe      gas Metal Flexible Hose

Reinforcement: 1 or 2 stainless steel 304 braided layer

Working pressure: 200-3250 psi.

Working temperature: from -280 °C to 420 °C.

Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.

                                 High pressure stainless steel braided flexible hose technical data

Item name

Braid layers

I.D.

O.D.

Min Bend Radius

Pressure at 20℃

Weight/foot

Static

Dynamic

WP.

BP.

lbs

inch

inch

inch

inch

psi

psi

HYFH-4-1

1

1/4

0.51

2.25

4.5

2500

10000

0.91

HYFH-4-2

2

0.56

3

6

3250

13000

0.3

HYFH-6-1

1

3/8

0.67

3

6

2625

10500

0.31

HYFH-6-2

2

0.73

4

8

3250

13000

0.51

HYFH-8-1

1

1/2

0.83

4.5

7.5

2000

8000

0.39

HYFH-8-2

2

0.89

6

10

3200

12800

0.63

HYFH-12-1

1

3/4

1.16

6

9

1525

6100

0.59

HYFH-12-2

2

1.26

8

12

2625

10500

0.96

HYFH-16-1

1

1

1.43

6.75

10.5

1375

5500

0.73

HYFH-16-2

2

1.54

9

14

2050

8200

1.1

HYFH-20-1

1

1-1/4

1.87

4.5

13.5

1125

4500

1.32

HYFH-20-2

2

1.98

6

18

1800

7200

2.02

HYFH-24-1

1

1-1/2

2.19

5.25

16.5

1025

4100

1.56

HYFH-24-2

2

2.25

7

22

1750

7000

2.55

HYFH-32-1

1

2

2.65

6.75

18

850

3400

1.93

HYFH-32-2

2

2.78

9

24

1325

5300

3.14

HYFH-40-1

1

2-1/2

3.42

7.5

19.5

625

2500

2.72

HYFH-40-2

2

3.53

10

26

1125

4500

4.23

HYFH-48-1

1

3

3.98

11.25

24

563

2250

3.2

HYFH-48-2

2

4.09

15

32

1000

4000

4.72

HYFH-64-1

1

4

4.92

15

30

363

1450

3.79

HYFH-64-2

2

5.03

20

40

625

2500

5.48

HYFH-96-1

1

6

7.12

22.5

45

275

1100

7.01

HYFH-96-2

2

7.26

30

60

413

1650

9.57

HYFH-128-1

1

8

9.34

30

60

200

800

11.38

HYFH-128-2

2

9.56

40

80

300

1200

15.45

Note: The data are based on 20 ℃. Pressure will decrease as the ambient temperature increases.
