SAE 100R4 hydraulic rubber hose

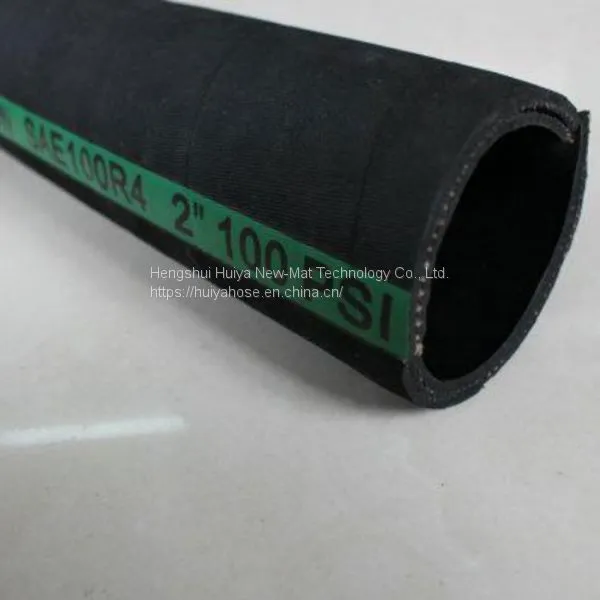

High Pressure oil resistant SAE 100R4 hydraulic rubber hose
PRODUCT PARAMETERS
SAE 100R4 wire inserted low pressure hydraulic hose is frequently applied to suction & return line, anti-static delivery line, and vacuum applications for petroleum-based and water-based hydraulic fluids. It is constructed with an inner tube of oil-resistant synthetic rubber, a reinforcement consisting of a ply, or plies, of woven or braided textile fibers with a suitable spiral of body wire, and an oil and weather resistant synthetic rubber cover.
Construction: This hose shall consist of an inner tube of oil resistant synthetic rubber, a reinforcement consisting of a ply or plies of woven or braided textile fibers with a suitable spiral of body steel wire, together with an oil and weather resistant synthetic rubber cover.
SCOPE OF APPLICATION
This hose is used for petroleum base hydraulic fluids within a temperature range of -40℃~+100℃.
hydraulic rubber hose manufacturers:Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.
Item |
Metric Size |
Inch Size |
SAE Dash size |
I.D |
O.D |
Max W.P |
Min B.P |
Min B.R |
||
Standard(mm) |
mm |
|||||||||
mm |
Inches |
Dash |
Min |
Max |
Min |
Mpa |
Psi |
Mpa |
mm |
|
HYR4-19 |
19 |
3/4 |
12 |
18.2 |
19.8 |
34.9 |
2.1 |
305 |
8.4 |
125 |
HYR4-25 |
25 |
1 |
16 |
24.6 |
26.2 |
41.3 |
1.7 |
250 |
6.8 |
150 |
HYR4-32 |
31.8 |
1-1/4 |
20 |
30.6 |
33.0 |
50.8 |
1.4 |
200 |
5.6 |
200 |
HYR4-38 |
38 |
1-1/2 |
24 |
36.9 |
39.3 |
57.2 |
1.1 |
150 |
4.2 |
255 |
HYR4-51 |
51 |
2 |
32 |
49.2 |
52.4 |
69.9 |
0.7 |
100 |
2.8 |
300 |
HYR4-63 |
63 |
2-1/2 |
40 |
61.9 |
65.1 |
82.6 |
0.4 |
60 |
1.6 |
355 |
HYR4-76 |
76 |
3 |
48 |
74.6 |
77.8 |
95.3 |
0.4 |
60 |
1.6 |
460 |
HYR4-89 |
89 |
3-1/2 |
56 |
87.3 |
90.5 |
107.9 |
0.3 |
40 |
1.2 |
530 |
