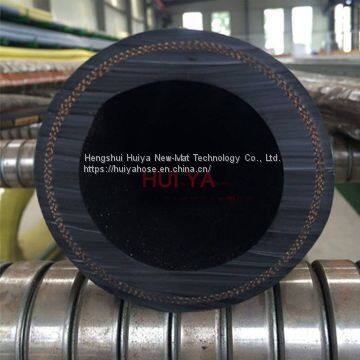

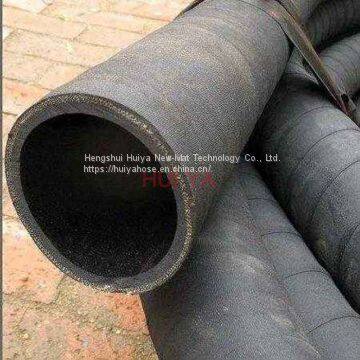

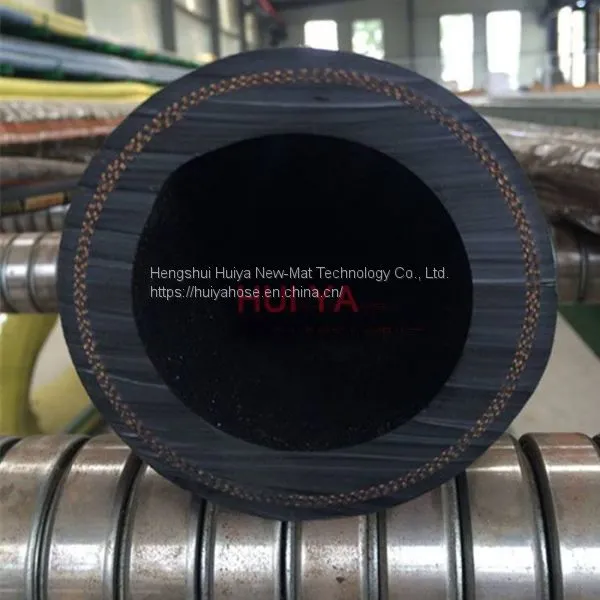

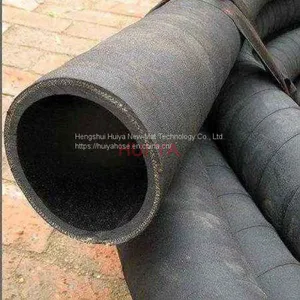

Sand Blasting Hose
High Abrasion Resistant Rubber Sand Blast Hose
PRODUCT PARAMETERS
Application:
The sand blasting hose is used for conveying sand or other abrasive materials engineered for sand/shot blasting purposes in ordnance factories, steel furniture manufacturing workshops, heavy engineering industries etc.
Construction:
Tube: High quality wear-resistance rubber.
Cover: High quality rubber material is good at anti-aging and wear resistance.
Reinforcement: Multilayer spiral fabric reinforcement.
Temperature: -20 °C to +70°C (-4 ℉ to +158 ℉)
Hot Sale Multipurpose hose:Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.
Sand Blasting Hose Technical Specification | ||||||||
ID | OD | Max W.P | Min B.P | Length | Weight | |||
inch | mm | mm | Psi | Mpa | psi | Mpa | m | kg/m |
1/2 | 13 | 27 | 174 | 1.2 | 696 | 4.8 | 20 | 0.43 |
5/8 | 16 | 29 | 174 | 1.2 | 696 | 4.8 | 20 | 0.56 |
3/4 | 19 | 35 | 174 | 1.2 | 696 | 4.8 | 20 | 0.74 |
1 | 25 | 39 | 174 | 1.2 | 696 | 4.8 | 20 | 1.20 |
1 1/4 | 32 | 49 | 174 | 1.2 | 696 | 4.8 | 20 | 1.30 |
1 1/2 | 38 | 60 | 174 | 1.2 | 696 | 4.8 | 20 | 1.50 |
2 | 51 | 71 | 174 | 1.2 | 696 | 4.8 | 20 | 2.10 |
2 1/2 | 64 | 85 | 174 | 1.2 | 696 | 4.8 | 20 | 2.80 |
3 | 76 | 97 | 174 | 1.2 | 696 | 4.8 | 20 | 3.65 |
3 1/2 | 89 | 103 | 174 | 1.2 | 696 | 4.8 | 20 | 4.20 |
4 | 102 | 129 | 174 | 1.2 | 696 | 4.8 | 20 | 5.70 |
