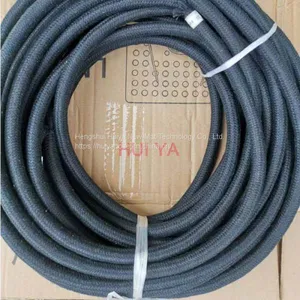

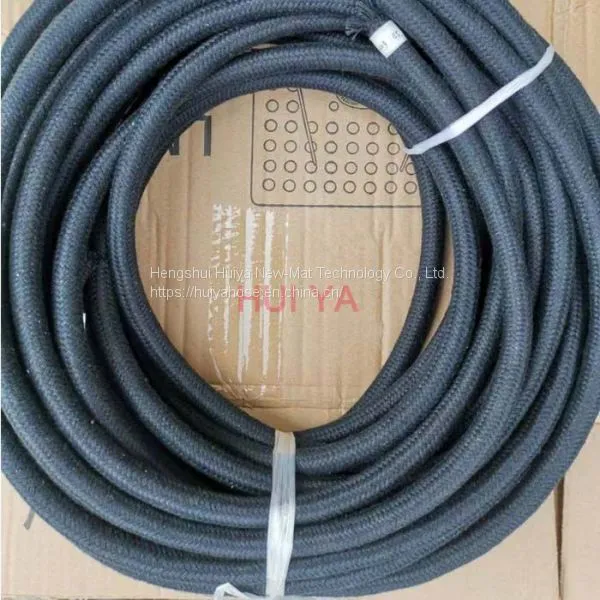

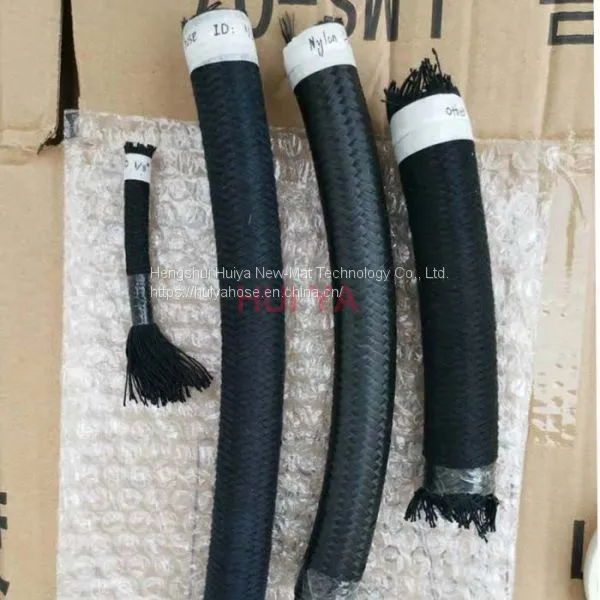

Fuel suction hose
PRODUCT PARAMETERS
Fuel hose
Applications:
Used as oil return line transporting oil, gasoline, diesel, lubricants and other mineral oil
on the condition of positive pressure
Construction:
Tube: Black NBR
Reinforcement: One fiber braid
Outer Shield: High tensile braided fiber with low shrink gray
Temperature Range:30°c-+110°c,-34°~+212F
Standard: Din73379 2B
Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.
Sizes and technical parameters:
No. |
ID |
0D |
WP |
BP |
||
Inch |
mm |
Inch |
mm |
bar |
bar |
|
1 |
1/8" |
3.2 |
23/64“ |
9 |
20 |
80 |
2 |
5/32" |
4 |
25/64" |
10 |
20 |
80 |
3 |
3/16M |
4.8 |
7/16" |
11 |
20 |
80 |
4 |
1/4" |
6.3 |
1/2" |
12.7 |
20 |
80 |
5 |
5/16" |
7.9 |
35/64“ |
14 |
20 |
80 |
6 |
3/8" |
9.5 |
5/8” |
16 |
20 |
80 |
7 |
15/32" |
12 |
3/4" |
19 |
20 |
80 |
8 |
1/2" |
12.7 |
25/32" |
20 |
20 |
80 |
9 |
5/8" |
16 |
61/64" |
24 |
10 |
40 |
10 |
3/4" |
19 |
1-9/64" |
28.8 |
10 |
40 |
11 |
1" |
25.4 |
1-3/8" |
35 |
10 |
40 |
