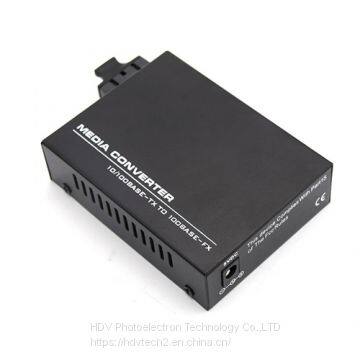

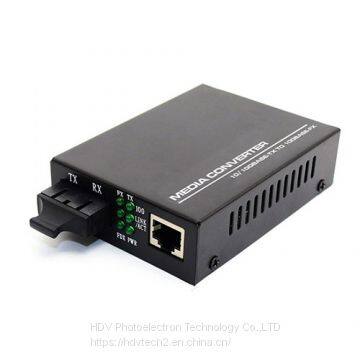

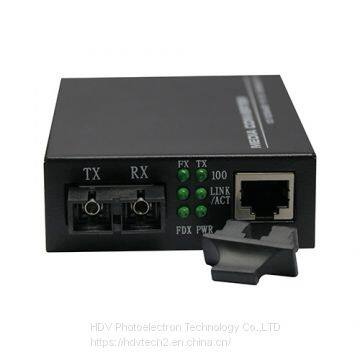

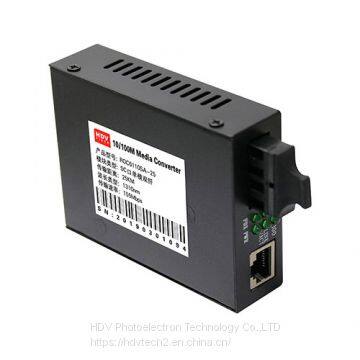

Fast Delivery 10/100M Dual Fiber Zte Fiber Media Converter
Power adapter
1.Introduction
10/100M adaptive fast Ethernet optical media converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100 Base-TX and 100 Base-Fx network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 120 km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
2.Features
In accordance with Ethernet standards IEEE802.3 10Base-T, IEEE802.3u 100Base-T and 100Base-FX
Supported Ports: SC for optical fiber; RJ45 for twisted pair
Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
Auto MDI/MDIX supported without need of cable selection
Up to 6 LEDs for status indication of optical power port and UTP port
External and built-in DC power supplies provided 128 K's data buffer RAM
Support for low-delay time pure data transmission and full/half-duplex flow control.
Built-in watch-dog timer to monitor any error in internal data exchange
In accordance with Ethernet standards IEEE802.3 10Base-T, IEEE802.3u 100Base-T and 100Base-FX
Supported Ports: SC for optical fiber; RJ45 for twisted pair
Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
Auto MDI/MDIX supported without need of cable selection
Up to 6 LEDs for status indication of optical power port and UTP port
External and built-in DC power supplies provided 128 K's data buffer RAM
Support for low-delay time pure data transmission and full/half-duplex flow control.
Built-in watch-dog timer to monitor any error in internal data exchange
3.Technical Parameters
Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter | ||||||||||
| Number of Network Ports | 1 channel | |||||||||
| Number of Optical Ports | 1 channel | | ||||||||
| NIC Transmission Rate | 10/100 Mbit/s | |||||||||
| NIC Transmission Mode | 10/100M adaptive with support for automatic inversion of MDI/MDIX | |||||||||
| Optical Port Transmission Rate | 100Mbit/s | |||||||||
| Operating Voltage | AC 220V or DC +5V | |||||||||
| Overall Power | <1W | |||||||||
| Network Ports | RJ45 port | |||||||||
| Optical Specifications | Optical Port: SC Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um | |||||||||
| Data Channel | IEEE802.3x and collision base backpressure supported Working Mode: Full/half duplex supported Transmission Rate: 100Mbit/s with error rate of zero | |||||||||
Some Product Modes and port Technical Parameters of Optical Port | ||||||||||
Desk Type Dual-Optical Single-Mode/Multi-Mode Media Converter | ||||||||||
P/N | Wavelength (nm) | Optical Port | Electric Port | Optical Power (dBm) | Receiving Sensitivity (dBm) | Transmission Range (km) | ||||
| 8110MA-05V-8S | 850 | SC | RJ-45 | -8~ -3 | ≤-19 | 0.55 | ||||
| 8110MA-2F-3S | 1,310 | SC | RJ-45 | -20~ -15 | ≤-34 | 2 | ||||
| 8110SA-10F-5S | 1,550 | SC | RJ-45 | -15~ -8 | ≤-34 | 10 | ||||
| 8110SA-20F-3S | 1,310 | SC | RJ-45 | -15~ -3 | ≤-34 | 20 | ||||
| 8110SA-40F-3S | 1,310 | SC | RJ-45 | -8~ -3 | ≤-34 | 40 | ||||
| 8110SA-60F-3S | 1,310 | SC | RJ-45 | -5~0 | ≤-34 | 60 | ||||
| 8110SA-80D-5S | 1,550 | SC | RJ-45 | -5~0 | ≤-34 | 80 | ||||
| 8110SA-100D-5S | 1,550 | SC | RJ-45 | -3~3 | ≤-36 | 100 | ||||
| 8110SA-120D-5S | 1,550 | SC | RJ-45 | 0~5 | ≤-36 | 120 | ||||
1) Operating Voltage
AC 220V/ DC +5V
2) Operating Humidity
Operating Temperature: 0℃ to +50℃
Storage Temperature: -20℃ to +70℃
Humidity: 5% to 90%
Storage Temperature: -20℃ to +70℃
Humidity: 5% to 90%
4. Product Application picture
