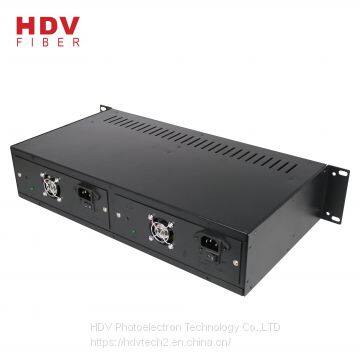

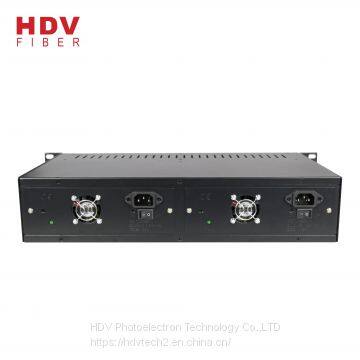

High quality 2U 14 Port 19 Inch Rack Type media converter Rack
Introduction:
HDV-E14 is a 14-slot 19'' Rack-Mount Chassis System provides housing for up to 14 HDV series media converters.Designed for continuous operation,th chassis is equipped with redundant power supplies (optional).Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis.HDV-E14 rack-mount chassis eliminates the external power adapters for HDV series media converters and organizes multiple converters in a single unit,which makes it the perfect solution for managing multiple HDV series converters.
Features:
1.Provides housing for up to 14 HDV series media converters.
2.Support AC 100~240V 50/60HZ.
3.Each card modules are hot swappable.
4.Modular power supply design,easy maintenance,better shielding,preventing the normal operation of the power generated electromagnetic signal interference module group.
5.Standard chass is can be installed in the engine room rack,easy to managed and maintained.
6.Support simultaneous operation of several module type (module type) media converters at different rates,which greatly improves system adaptability.
7.Each transceiver module are hot swappable independently,which can also work cooperatively.
8.Power protection:Overvoltage protection,overcurrent protection and short circuit protection.
9.The design that is exquisite and beacutiful,light weight,good ventilated and thermally conductive can ensure normal and stable operation of the system.
1.Provides housing for up to 14 HDV series media converters.
2.Support AC 100~240V 50/60HZ.
3.Each card modules are hot swappable.
4.Modular power supply design,easy maintenance,better shielding,preventing the normal operation of the power generated electromagnetic signal interference module group.
5.Standard chass is can be installed in the engine room rack,easy to managed and maintained.
6.Support simultaneous operation of several module type (module type) media converters at different rates,which greatly improves system adaptability.
7.Each transceiver module are hot swappable independently,which can also work cooperatively.
8.Power protection:Overvoltage protection,overcurrent protection and short circuit protection.
9.The design that is exquisite and beacutiful,light weight,good ventilated and thermally conductive can ensure normal and stable operation of the system.
Specification:
| Slots Provided | 14 slots |
| Structure | 2U Pack mounted |
| Power Input | AC 100~240V 50/60HZ |
| Power Output | DC 5V |
| Power Configuration | Redundant Power supply |
| LED Indication | Power |
| Max Power Consumption | 65W |
| Operating Temperature | 0~50℃ |
| Working Humidity | 5%~90%Non-Condensing |
| Storage Temperature | -40~85℃ |
| Storage Humidity | 5%~90% Non-Condensing |
| Dimensions | 428*230*90mm(L*W*H) |
| Warranty | 2 Years |
