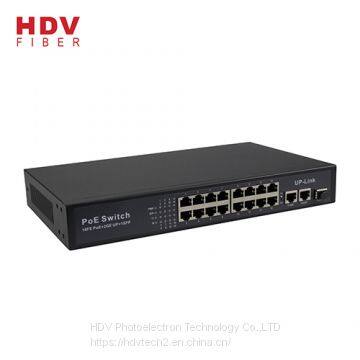

New Product 2GE Uplink+16FE POE Port +1*1000M SFP 100M 16 Ports POE Switch

Product

16+2+1 PoE Switch

Fixed Port

16*10/100Base-TX  PoE port(Data/Power)

2*10/100/1000Base-TX uplink RJ45 port (Data)

1*1000M SFP

PoE Port

1-16 port supports PoE, Max POE Distance 250Meter

Function

100M:100Meter POE, the transmission rate is 100Mbps

250M: Extend 250Meter POE, VLAN Mode, the transmission rate is 10Mbps

Network Protocol

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3x

IEEE 802.3z 1000BASE-X

IEEE 802.3af/at

PoE Standard

IEEE802.3af/at

Port Specification

10/100/1000BaseT(X)Auto

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

9.2Gbps

Packet Forwarding

6.62Mpps

MAC Address

2K

Buffer

2.5M

Transmission Distance

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(150 meter)

1000BASE-TX : Cat6 or later UTP(150 meter)

1000BASE-SX:62.5μm/50μm MMF(2m~550m)

1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Power Pin

Default 1/2(+),3/6(-);Optional order 4/5(+),7/8(-)

Single Port Power

Average 15.4W;MAX 30W

Total power/Input voltage

MAX 300W (AC100-240V 50/60HZ)

Power Input

Built-in power AC:100~240V 50-60Hz 1A

Operating Temperature/Humidity

-10~+55°C;5%~90% RH Non coagulation

Storage Temperature/Humidity

-40~+75°C;5%~95% RH Non coagulation

Product size/Packing size(L*W*H)

31*18.5*4.4CM/34.2*25.4*7.8CM

N.W/G.W(kg)

2kg/2.4kg

Installation

Rack-mount(optional machine hanger spare parts)

Certificate

CE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;RoHS;
