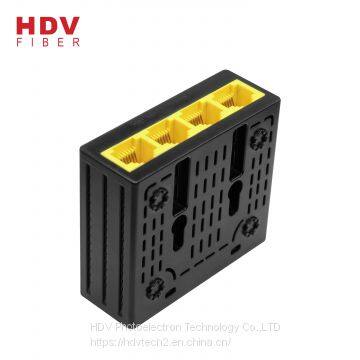

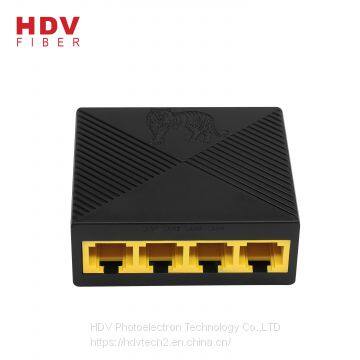

Help CenterTelecommunication Equipment 4Rj45 10 / 100 Mbps Fiber Optic to Rj45 Mini Media Converter
Related Products
-
10/100M Ethernet Media Converter Single Fiber BIDI Optic Mini Media ConverterUS$ 6.5 - 9MOQ: 100 Pieces -
FTTH 10/100/1000M WDM Gigabit Ethernet Fiber Optic Media ConverterUS$ 13 - 18MOQ: 100 Perches
-
Fast Delivery 10/100M Dual Fiber Zte Fiber Media ConverterUS$ 1 - 11MOQ: 100 Pieces
-
China OEM Single Fiber Ports 2 Rj45 Ports SFP Media ConverterUS$ 1 - 13MOQ: 100 Pieces
-
SFP Media Converter 10/100/1000 Base Media Converter 20km Fiber Optic Media ConverterUS$ 6 - 8MOQ: 100 Pieces
Model |
ZX-1M4WS33OC-M |
Product |
Fast Ethernet4+1 Switch |
Fixed Port |
4*10/100Base--TX RJ45 port (Data) 1*100M Optical Fiber Port(optional 1310/1550) |
Network Protocol |
IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE802.3x |
Port Specification |
10/100BaseT(X) Auto |
Transmission Mode |
Store and Forward(full wirespeed) |
Bandwidth |
155Mbps |
Packet Forwarding |
7.2Mpps |
MAC Address |
2K |
Buffer |
2.5M |
Transmission Distance |
10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) Single mode single fiber(MAX 20KM) Single mode double fiber (MAX 20KM) Multiple mode double fiber(MAX 850M/2KM) Optional 3-100KM Optical Fiber Module |
Watt |
≤10W; |
LED Indicator |
PWR:Power LED FX:(Optical fiber LED) 1X/2X/3X/4X:Port LED Port:(Orange= Fast Ethernet LED+Green=Link LED) |
Power |
External power DC 5V 2A |
Operating Temperature/Humidity |
-15~+65°C;5%~90% RH Non coagulation |
Storage Temperature/Humidity |
-40~+75°C;5%~95% RH Non coagulation |
Product size/Packing size(L*W*H) |
60mm*53mm*22mm 80mm*64mm*50mm |
N.W/G.W(kg) |
0.047kg/0.094kg |
Installation |
Desktop (optional wall hanger+machine hanger parts) |
Lightning Protection level |
3KV 8/20us; IP30 |
Certificate |
CE mark, commercial;CE/LVD EN60950; |
Warranty |
Whole device for 2 year |
Applications:
