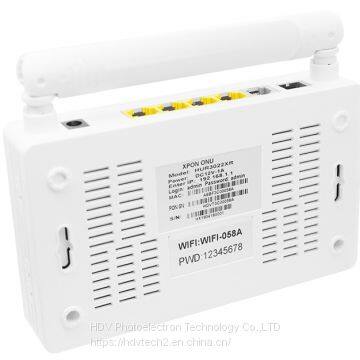

Help CenterXPON Both Gpon and Epon ONU 1GE 3FE Phone for Family Gateway WIFI With 2 Antennas
Related Products
-
Hot Sale Wifi Onu Xpon Onu 1Ge 3Fe Catv OntUS$ 21 - 26MOQ: 100 Pieces -
High Quality FTTH 1GE+Wifi Fiber Router Voice XPON EPON GPON ONT ONUUS$ 18 - 23MOQ: 100 Pieces
-
Both GPON And EPON XPON WIFI ONU 1GE+3FE+Pots Family Gateway With 2 AntennasUS$ 19 - 24MOQ: 100 Pieces
-
Add to CompareShare Network Equipment 1G3F+ Catv+Voice Port Ont Witihout Wifi XPON ONUUS$ 22 - 29MOQ: 100 Pieces
-
New Product Fiber Optic Without Antenna Gpon 1 Ge Xpon ONUUS$ 13 - 17MOQ: 100 Pieces
1. Overview
1G3F+WIFI+POTS series is designed as HGU(Home Gateway Unit) in deferent FTTH solutions by HDV, The carrier-class FTTH application provides data service access.1G3F+WIFI+POTS series is designed by Realtek chipset 9603C
2.Functional Feature
Support ONU auto-discovery/Link detection/remote upgrade of software
WAN connections support Route and Bridge mode
Route mode supports PPPoE/DHCP/ static IP
Support WIFI Interface and multiple SSID
Support QoS and DBA
Support port Isolation and port vlan configuration
Support Firewall function and IGMP snooping multicast feature
Support LAN IP and DHCP Server configuration;
Support Port Forwarding and Loop-Detect
Support TR069 remote configuration and maintenance
Support Pots interface for VoIP Service
Specialized design for system breakdown prevention to maintain stable system
3.Hardware Specification
Technical item | Details |
PON Interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) |
Receiving sensitivity: ≤-27dBm | |
Transmitting optical power: 0~+4dBm | |
Transmission distance: 20KM | |
Wavelength | Tx: 1310nm, Rx: 1490nm |
Optical Interface | SC/APC Connector |
POTS interface | 1 FXS, RJ11 connector |
LAN Interface | 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
Wireless | Compliant with IEEE802.11b/g/n, |
Operating frequency: 2.400-2.4835GHz | |
support MIMO, rate up to 300Mbps, | |
2T2R,2 external antenna 5dBi, | |
Support: Multiple SSID | |
Channel: Auto | |
Modulation type: DSSS, CCK and OFDM | |
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
LED | 12, For Status of POWER, LOS, PON, SYS,LAN1~LAN4 ,WIFI, WPS, Internet, FXS |
Push-Button | 3,For Function of Reset, WLAN, WPS |
Operating Condition | Temperature: 0℃~+50℃ |
Humidity: 10%~90%(non-condensing) | |
Storing Condition | Temperature: -30℃~+60℃ |
Humidity: 10%~90%(non-condensing) | |
Power Supply | DC 12V/1A |
Power Consumption | ≤6W |
Dimension | 155mm×92mm×34mm(L×W×H) |
Net Weight | 0.24Kg |
4.Ordering information
Product Name | Product Model | Descriptions |

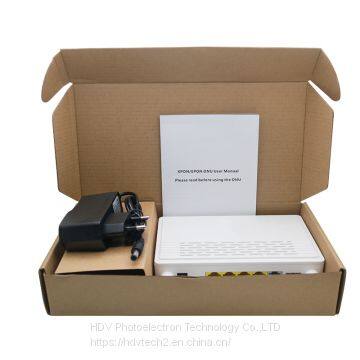

SFF Type XPON ONU | 1G3F+WIFI+POTS | 1x10/100/1000Mbps Ethernet, 3 x 10/100Mbps Ethernet , 1 SC/APC Connector, 1 FXS Connector, 2.4GHz WIFI, Plastic Casing, External power supply adapter |
5.Application
Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
Typical Business:INTERNET,IPTV,VOD,IP Camera,VoIP etc
Figure: 1G3F+WIFI+POTS Application Diagram
