Home > Products > Sponge Foaming Machine > Horizontal Circular cutting foam machinery

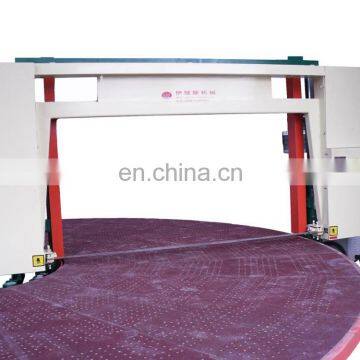

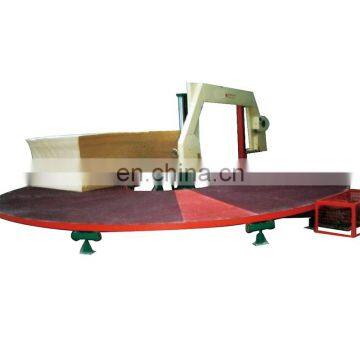

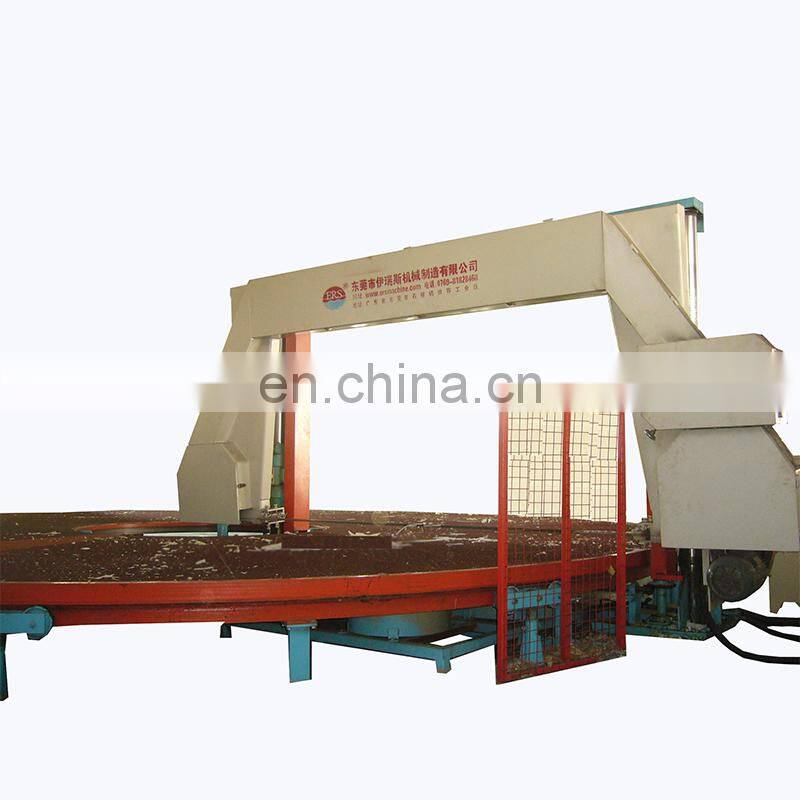

Horizontal Circular cutting foam machinery
- 5 Set / Sets per Month
- Shenzhen port China
- T/T Credit Card
You May Like
-
high speed auto feeding fabric roll die cutting machine
-
rolling to roll automatic feeding leather/fabric roll die cutting machine
-
high speed auto feeding fabric roll press machine
-
Automatic Fabric Rags Cloth Roll Die Cutting Machine To Sheet
-
two-side auto-feeding hydraulic automatic die cutting machine
-
auto-feeding leather and fabric cutting machine for roll materials
Product Details
| Brand Name | ERS Foam Machine | Place of Origin | Guangdong, China | |
| Certification | CE Certificate | |||
| Voltage | 220V/380V | |||
| Application | foam slices continous cutting | Rated Power | 8.92kw | |
| Condition | New | Power(W) | 8.92kw | |
| Dimensions | L7500*W7000*H2500mm | Max. Cutting Depth | H1200mm | |
| Saw Blade Diameter | 10000mm | No-Load Rotational Speed | 0-3.5r/min |
Product Description
This machine mainly puts many block foam on the worktable cutting slices at the same time, adopt fully automatic digital control, and setting the number as need cutting thickness and foam density by control box. The worktable runs automatically. The turning speed of worktable is adjustable. Continuously cutting ,the production efficiency is very high ( worktable also choose adding to vacuum equipment).
Model | ERS-HC01 | ERS- HC02 | ERS- HC03 |
cutting sponge size | L2000*W1500*H1200mm (4pcs) | L2000*W1500*H1200mm(5pcs) | L2000*W1500*H1200mm (8pcs) |
Cuttingspongethickness | 2-150mm | 2-150mm | 2-150mm |
worktable turning speed | 0-3.5r/min | 0-3.5r/min | 0-2.5r/min |
worktable diameter | diameter 6m | diameter 7m | diameter 10.5m |
blade length | 8940mm | 10000mm | 10240mm |
total power | 8.12kw | 8.92kw | 10.52kw |
machine external size | L7000*W6500*H2500mm | L7500*W7000*H2500mm | L11500*W11000*H2500m |
