Whirlpool SPA Hot Tub Bathtub Edge Cutting Trimming Machine

Whirlpool SPA Hot Tub Bathtub Edge Cutting Trimming Machine thumbnail-1
Whirlpool SPA Hot Tub Bathtub Edge Cutting Trimming Machine thumbnail-2
Whirlpool SPA Hot Tub Bathtub Edge Cutting Trimming Machine thumbnail-3
Whirlpool SPA Hot Tub Bathtub Edge Cutting Trimming Machine thumbnail-4
Whirlpool SPA Hot Tub Bathtub Edge Cutting Trimming Machine thumbnail-5
Whirlpool SPA Hot Tub Bathtub Edge Cutting Trimming Machine photo-1
Whirlpool SPA Hot Tub Bathtub Edge Cutting Trimming Machine photo-2
Whirlpool SPA Hot Tub Bathtub Edge Cutting Trimming Machine photo-3
Whirlpool SPA Hot Tub Bathtub Edge Cutting Trimming Machine photo-4
Whirlpool SPA Hot Tub Bathtub Edge Cutting Trimming Machine photo-5
US$ 5200 - 5800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YEED
Place of Origin:
China
Model Number:
TM002
Contact Supplier Request Quote Chat Now
Hangzhou Yeed Machinery Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YEED
Place of Origin China
Model Number TM002
Type Other
Certification CE, ISO9001: 2000
After-sales Service Provided Engineers available to service machinery overseas
Voltage 380V
Condition New
Power(W) 7.5KW
Dimensions 200*200CM
Max. Cutting Depth 65CM
Detailed Product Description

We make acrylic bathtub forming machines, bathtub forming moulds

The acrylic bathtub/tray making line need the equipments as follows,

1.acrylic bathtub forming machines--9800USD

2.bathtub forming moulds--about 650USD/piece

3.resin mixer--550USD/piece

4.resin spray gun with fiber chopper(automatic)--5500USD/set

5.bathtub edge trimming machine--5600USD/set

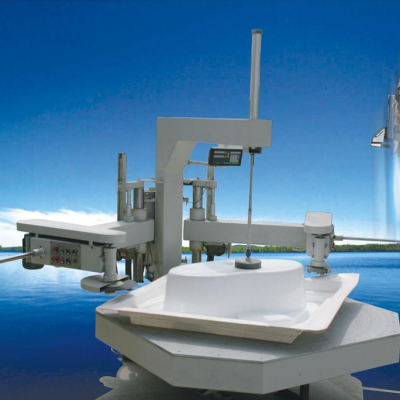

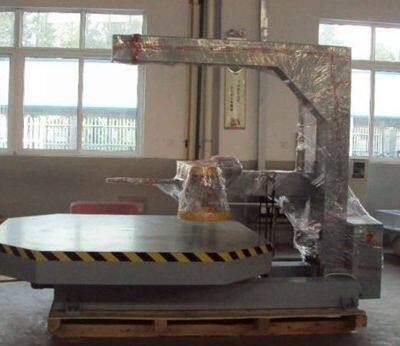

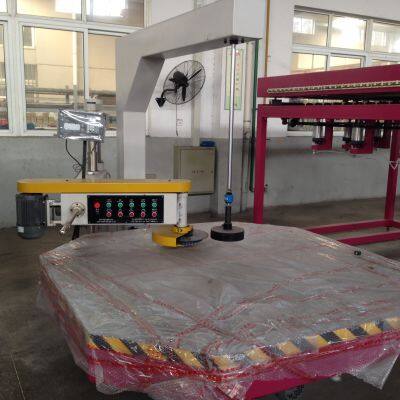

The detail information of the trimming machine:

The machine tool is a kind Of special equipment used for edge trimming of bathtub in steam room Its worktable can be classified into 2000×2000mm worktable and 2400×2400 worktable, which makes the product adapt to edge trimming of bathtub of different sizes. General grinding wheel blade, tdngsten carbide alloy saw blade and special diamond grinding wheel blade may be used, which makes it have wide application. Overall welding is applied and the worktable is given stress treatment. The process precision is high. There is no interface around the cylinder body. The machine bed can add tumbler digital readout device according to requirements of customers, which is the first choice for sanitary factory to update equipments.


Main technical parameter
1 Dimension working table (L×W)…………………………2000×2000(2200×2200 or 2400×2400)mm

2 Maximum distance between work table center to vertical arm………1500mm

3 Maximum distance between work table and pressure plate………….1120mm
4 Rotate speed of work table (adjustable)………………………………..0-2r/min
5 Maximum ascend and descend distance of the tumbler……………...50-400mm
6 Dimension of common used grinding wheel……………………………Φ400×Φ25.4mm
7 Rotate speed of main axis………………………………………………..3650 r/min
8 Power of main motor………………………………………………………N=3KW
9 Motor power of work table………………………………………………..N=0.37KW
10 Power of the maximal rising height of tumbler………………………..N=0.37KW
11 Operation power…………………………………………………………0.4～0.6Mpa
12 Appearance dimension (L×W×H)...............................................3280×2400×2850mm
13 Machine bed weight…………………………………………………1300kg


Product Tags: bathtub trimming machine , bathtub edge cutting machine , bathtub cutting machine
