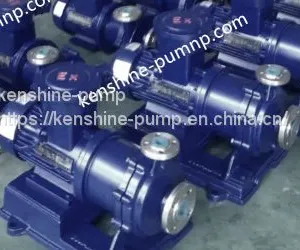

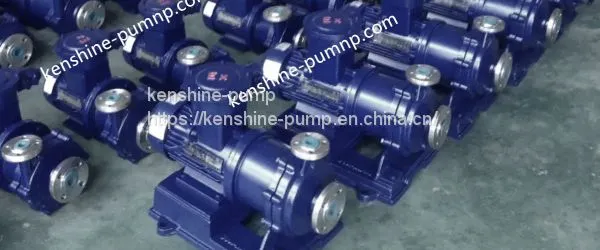

CQB Stainless steel no leakage magnetic drive pump
CQB type stainless steel magnetic drive pump is a new type of completely leak-free corrosion resistant pump developed by the national joint design group of magnetic pump. Its technical and economic indexes are comparable to the level of similar foreign products in the late 1980s, which is the supplement and improvement of CQ type magnetic pump.
The main parts of CQB stainless steel pump adopts full stainless steel material and the pump is used to convey the organic acid, organic compound, alkali, neutral solution etc. and has good corrosion resistance, double helix carbon graphite bearing and the adaptation of the hard alloy bushing, strong wear resistance to ensure the service life of pump. It is an optimal pump to convey corrosive mediums without leakage. The ideal pump for conveying corrosive media without leakage can directly replace IH chemical process pump.
CQB type magnetic drive pump applicable range
CQB series magnetic pumps are widely used in petroleum, chemical, metallurgy, pharmaceutical, electroplating, environmental protection and other industries. CQB Stainless steel magnetic drive pump can transport flammable, explosive, highly toxic, valuable liquid below 100℃.Adopt magnetic drive principle to convey corrosive medium and no leakage.
Flow: 3.2-100m3/h head: 20-80m power: 0.75-75kw
Specification sheet:
| model | Flow （m3/h） | Head (m) | Speed(rpm) | motor power(KW) |
| CQB32-20-125 | 3.2 | 20 | 1.1 | |
| CQB32-20-160 | 32 | 1.5 | ||
| CQB40-25-105 | 6.3 | 12.5 | 1.1 | |
| CQB40-25-125 | 20 | 2.2 | ||
| CQB40-25-160 | 32 | 3 | ||
| CQB40-25-200 | 50 | 5.5 | ||
| CQB50-40-85 | 12.5 | 8 | 1.1 | |
| CQB50-32-105 | 12.5 | 1.5 | ||
| CQB50-32-125 | 20 | 3 | ||
| CQB50-32-160 | 32 | 4 | ||
| CQB50-32-200 | 50 | 7.5 | ||
| CQB50-32-250 | 80 | 18.5 | ||
| CQB65-50-125 | 25 | 20 | 2900 | 4 |
| CQB65-50-160 | 32 | 7.5 | ||
| CQB65-40-200 | 50 | 15 | ||
| CQB65-40-250 | 80 | 22 | ||
| CQB80-65-125 | 50 | 20 | 7.5 | |
| CQB80-65-160 | 32 | 15 | ||
| CQB80-50-200 | 50 | 22 | ||
| CQB80-50-250 | 80 | 37 | ||
| CQB100-80-125 | 100 | 20 | 15 | |
| CQB100-80-160 | 32 | 22 | ||
| CQB100-65-200 | 50 | 37 | ||
| CQB100-65-250 | 80 | 55 | ||
| CQB150-150-200 | 200 | 50 | 55 | |
| CQB200-200-400 | 400 | 32 | 1450 | 75 |
