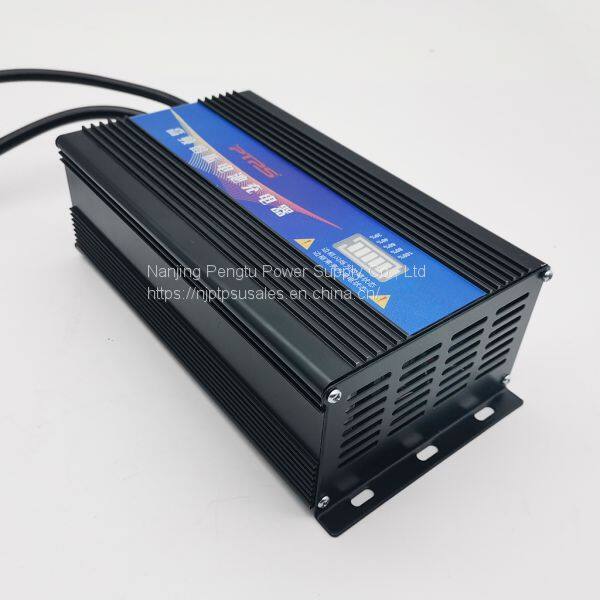

Help CenterPBC-210 Series 24V15A EV Charger Small Size Light Weight and High Efficiency
Related Products
-
PBC-230 Series 1KW Lead-acid Battery or Lithium Battery ChargerUS$ 75 - 90MOQ: 50 Pieces -
PBC170 Series Bare Board Battery ChargerUS$ 50 - 55MOQ: 50 Pieces
-
PBC170 Series Lead-acid or Lithium Battery Portable Chargers Output 12V10A/12V15A/24V8A/36V5A/48V5AUS$ 45 - 50MOQ: 50 Pieces
-
1.3kw Series Portable Battery Charger EV Battery Charger Output 36V30AUS$ 115 - 130MOQ: 50 Pieces
-
2kw Series Portable Battery Charger With CAN Control EV Battery Charger Output 24V50AUS$ 150 - 160MOQ: 50 Pieces
Product introduction and application areas
This series of chargers adopts MCU intelligent control mode; it is suitable for rich liquid lead-acid batteries, maintenance-free lead-acid batteries, lithium batteries, nickel-hydrogen batteries, nickel-chromium batteries, etc.; it can be used in electric sweepers, electric sightseeing cars, golf carts, The battery packs of communication, electric power, and ships are cyclically charged.
Technical parameters
.Input AC voltage range:190-240VAC;45-65HZ
.Input AC maximum current:7A@220VAC
.Max Efficiency:93.0%(Full Load@220VAC)
.Noise:≤45dB
.Working temperature:-20°C~＋55°C(No condensation)
.Storage temperature:-40°C~＋95°C
Product specifications
.Dimensions:223.00*116.00*71.70mm
.Weight:1.5kg±0.3kg
Multiple protection
.Output over current protection .Input over voltage protection
.Output over voltage protection .Input under voltage protection
.Output short circuit protection .Over temperature protection
.Output reverse connection protection .Output no-load protection
.Fully automatic shutdown

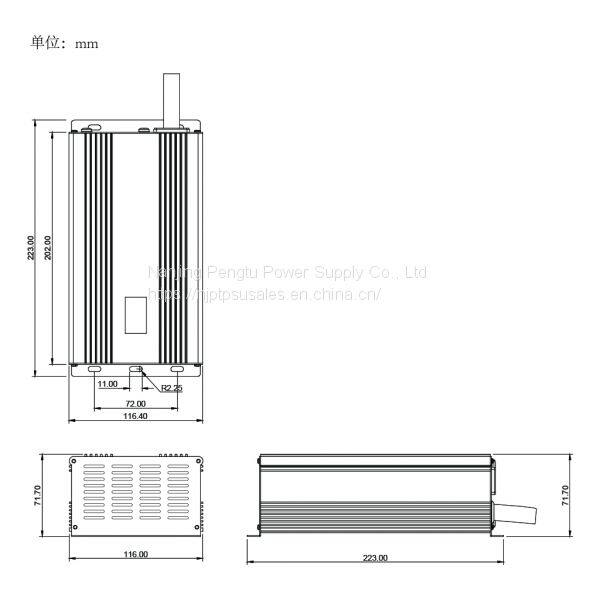

Mechanical Size&Model selection
Model |
Battery pack rated voltage |
Maximum output voltage |
Maximum output current |
PBC-200-24V15A |
24V |
34V |
15A |
PBC-200-48V15A |
48V |
68V |
15A |
PBC-200-60V10A |
60V |
85V |
10A |
PBC-200-72V10A |
72V |
105V |
10A |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
