1100W Series Sealed Portable charger

Product introduction and application areas

The 1100W Series Sealed Portable charger are designed with aluminum profile structure. They are suitable for liquid-rich lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. They can be used to cycling charge and floating charge the battery in electric car, electric motorcycle, sightseeing car, patrol car, forklift, communication, electric power, ship,etc.

Technical parameters

. Ac input voltage range: 200-240VAC;45-65HZ

. AC max input current: 6A@220VAC

. Max Efficiency: 90% (Full Load)

. Noise: ≤55dB

.Working temperature:-30℃~＋55℃

.Storage temperature:-40℃~＋95℃

Product specifications

.Dimensions:262*142*78mm

. Net weight: 2.0kg

Multiple protection

.Output over current protection       .Output reverse connection protection

.Output over voltage protection       .Over temperature protection

.Output short circuit protection        .Fully charge automatic shutdown

.Output no-load protection

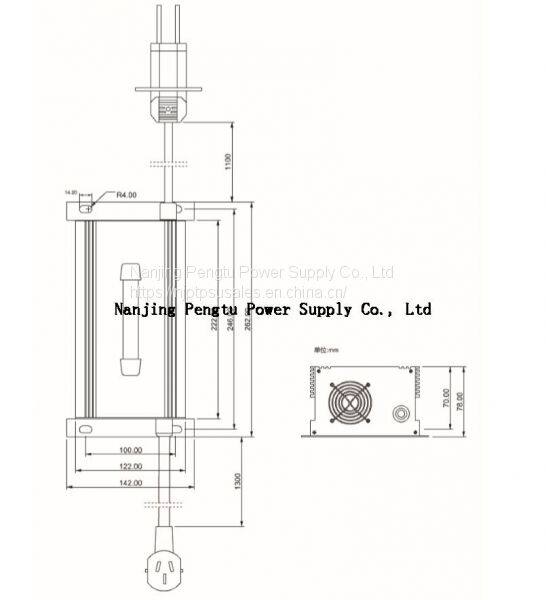

Mechanical Size&Model selection

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.
