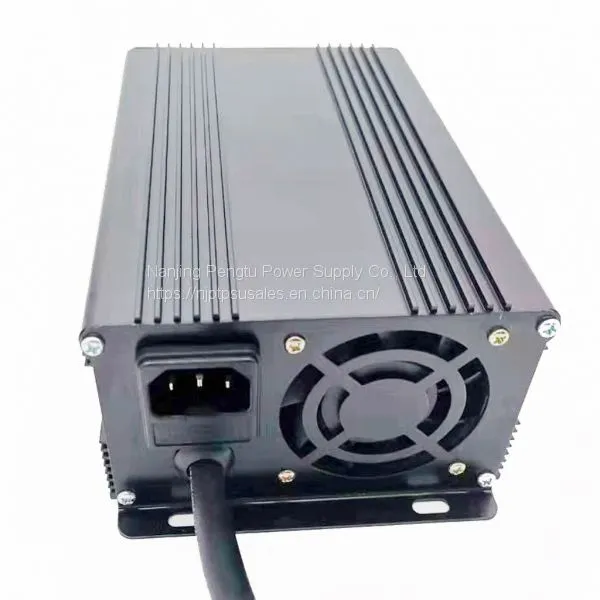

UBC-170 series 300Watt Smart 12V15A Battery Charger with Desulfation
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C PayPal Other
- 15 days
- ACREL ADW300W Wireless Power Monitor Meter Support Modbus Protocol For Power Consumption Monitoring Din Rail Three Phase
- ACREL ADW300W-4GHW Din Rail Three Phase 4G Wireless Power Monitor Meter Support Modbus Protocol For Power Consumption Monitoring
- ADW300W--WF wireless metering instruments optional communication modes external split core CT LCD display power monitoring
- Acrel ADW300-4GHW Din rail Wireless smart energy meter Optional 4G 2G WiFi NB-IoT LoRa RS485 MODBUS-RTU three phase
- Acrel intelligent WF Wireless smart energy meter ADW300-WF three phase din rail with CE certificate for building factory grids
- Acrel ADW300W/C equipped with 3 split core CTS wireless smart energy meter Convenient to collect and manage electricity
Product Details
Brand Name: | Pengtu | Place of Origin: | China | Model Number: | UBC-170-12V15A |
Output Power: | 300W | Output Current: | 15A | Output Frequency: | 50-60HZ |
Output Voltage: | 12V | Input Voltage: | 110VAC or 220VAC |
Product Description
Specification:
UBC170-12V15A | |
Charging Rate | 15A |
RecommendedBattery Capacity | 90-150AH |
Input Voltage | 110VAC and 220VAC, 50-60HZ |
Charging Voltage | 14.7V or adjust to battery's specification |
Restart battery voltage | 12.7V or adjust it according to clients' requirments |
Humidity | 5-95% With package |
Altitude | ≤3000m,Work normally |
High temperature ambient operating | ﹢40℃,Features OK |
Low temperature ambient operating | ﹣20℃, Features OK |
High temperature storage | ﹢70℃,Work normally after recovery under normal temperature for 2 hours |
Low temperature storage | ﹣40°C,Work normally after recovery under normal temperature for 2 hours |
Housing material | Aluminum |
Cooling | Fan cooling |
Charging mode | Multi-stage (max8)full automatic switch mode,(reverse) pulse charging |
Appropriated Battery | 12V lead acid battery,AGM,AGL,GEL,VRLA,SLA,FLOODED,WET |
Dimensions | 194*117*73mm |
Weight | 1.45kg (including box) |
Display | 4cm*1.5cm digital in English |
Guarantee | 1year |
Main Features:
1.Compact & Delicate & Energy Saving -- Switch Mode Tech
Small and light, as we adopt the switch mode technology or called Switching Power Supply technology. Compared withtraditional Linear Power technology, ours is more energy saving as more than 85% electric energy is transferred to battery chemical energy duringcharging process while traditional tech can onlytransfer 40%.The tech is suitable for all types of lead acid batteries (wet,flooded, maintenance free, VRLA, AGL,AGM, GEL, etc)as well as lithium, lipo batteries.
2.Automatic-- MCU control
MCU system is applied. The whole charging process is monitored. Multi-stage charging automatically proceeds. No need for manual interference.
Automatically stops charging when the battery is full. You can leave the charger connected to the battery infinitelywithout the risk of overcharging. Once the battery is full, the charger monitors the battery’s voltage intermittently. If battery’s capacity decreases or voltage drops under set level, the charger can start again to charge battery to its full.
3.Multi-stage charging-- full charge but never overcharge& save battery & save energy
Max 8 stage: pre-charging, soft charging, main charging (bulk charging), secondary charging, high constant voltage charging (absorption charging), 3-minute test, Float charging, End maintenance charging.
This way can well transfer electricity into battery according to battery’s absorption ability. On the one hand, save energy; on the other hand, protect battery from over-charging, therefore less gassing less temperature rising. Float charging and End maintenance charging also help protect battery and prolong its lifetime.
4.Recover Battery Capacity--Pulse & Reverse Pulse Tech
Pulse and reverse pulse technology is applied. The charger generates pulseand reverse pulse to reduce battery’simpedance,gassing and temperature rise,restore the sulfate into liquid to recover battery capacity, therefore to prolong its lifetime. Pulse charging also can help charge fast and fully.Pulse Charging might not be applicable to Lithium, Lipo, Li-ion battery, which need constant current to charge.
5.Digital Display& Indicator
Our charger has 4-digital display.
Digital display will show battery'scharging voltage and current and error code and more information. Float charging will have time count-down, so that user knows when battery can be ready.
Indicator lights can be added and defined as requested.
The display can be customized or re-defined.
6.More Protection
Tester function: If battery has abnormal state, the charger will display error code and reminds User to check battery whether it is good or bad.
Polarity Protection: Prevents the output leads from sparking due to accidental reverseconnection or short circuit.
Overcharge and Over-voltage Protection: never worry about overcharging or over-voltage as charger automaticallystops when battery reaches set voltage or current.
7.Customization
We can change parameter to meet different applications. Make charger specifically for your battery.
If you have any specific requirements or want to know any information about the products,please feel free to contact us.njptsaleseva@pengtucharger.com
