PBC-230 Series 1KW Lead-acid Battery or Lithium Battery Charger
- Shanghai
- T/T L/C PayPal Other
- 15 days
You May Like
-
PBC170 Series Bare Board Battery Charger
-
PBC170 Series Lead-acid or Lithium Battery Portable Chargers Output 12V10A/12V15A/24V8A/36V5A/48V5A
-
100-200W Half Brick DC/DC Converter 24/48/110/300vdc to 12/24/28/48vdc
-
PDF Series 200-400VDC Input Full Brick Power Supply Dc/dc Converters 24/48/110/300vdc to 12/24/28/48vdc
-
PDB-A Series 9-154VDC Input Power Supply Dc/dc Converters 18/24/48/110vdc to 12/24vdc
-
PDB-C2/C4 Series 40-200w Input 18/24/48/110/550/600vdc Output 12/15/24/48vdc DC/DC Converters Power Supply
Product Details
| Brand Name | Pengtu | Place of Origin | China | |
| Model Number | PBC-230-12/24V30A | Output Power | 300-1000W | |
| Output Current | 30A | Output Frequency | 45-65hz | |
| Output Voltage | 12/24V | Input Voltage | 190-240V |
Product Description
Product introduction and application areas
This series charger adopts MCU intelligent control method; suitable for liquid-rich lead-acid batteries, maintenance-free lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-chromium batteries, etc .; can be used for electric sweepers, electric pallet trucks, electric stackers Wait for the battery pack to cycle.
Technical parameters
.Input AC voltage range:190-240VAC;45-65HZ
.Input AC maximum current:10A@220VAC
.Max Efficiency:90.0%(Full Load@220VAC)
.Noise:≤65dB
.Working temperature:-20°C~+55°C(No condensation)
.Storage temperature:-40°C~+95°C
Product specifications

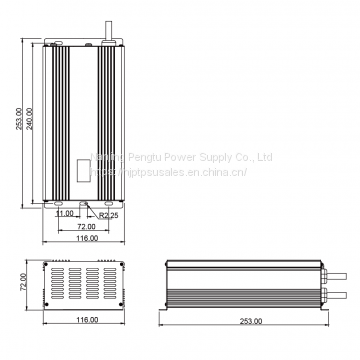

.Dimensions:253.00*116.00*72.0mm
.Weight:1.9kg±0.3kg
Multiple protection
.Output over current protection .Input over voltage protection
.Output over voltage protection .Input under voltage protection
.Output short circuit protection .Intput over current protection
.Output reverse connection protection .Over temperature protection
.Fully automatic shutdown .Output no-load protection
Model selection
Model | Battery pack rated voltage | Maximum output voltage | Maximum output current |
PBC-230-12V30A | 12V | 17V | 30A |
PBC-230-24V30A | 24V | 34V | 30A |
Remark:Only typical models are listed. For other models, please determine the power, input voltage,output voltage and output current,then contact us.njptsaleseva@pengtucharger.com
