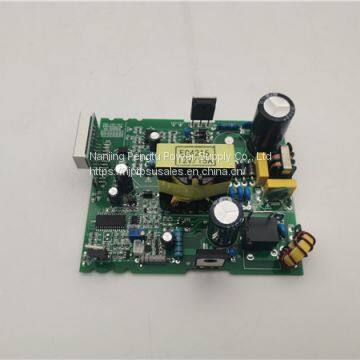

Help CenterPBC170 Series Bare Board Battery Charger
Related Products
-
PBC170 Series Lead-acid or Lithium Battery Portable Chargers Output 12V10A/12V15A/24V8A/36V5A/48V5AUS$ 45 - 50MOQ: 50 Pieces -
1.3kw Series Portable Battery Charger EV Battery Charger Output 36V30AUS$ 115 - 130MOQ: 50 Pieces
-
2kw Series Portable Battery Charger With CAN Control EV Battery Charger Output 24V50AUS$ 150 - 160MOQ: 50 Pieces
-
3kw Series Portable Battery Charger With CAN Control EV Battery Charger Output 48V50AUS$ 380 - 400MOQ: 50 Pieces
-
6.6kw Series Portable Battery Charger With CAN Control EV Battery Charger Output 96V60AUS$ 615 - 630MOQ: 50 Pieces
Product introduction and application areas
This series of chargers adopts MCU intelligent control mode; it is suitable for rich liquid lead-acid batteries, maintenance-free lead-acid batteries, lithium batteries, nickel-hydrogen batteries, nickel-chromium batteries, etc.; it can be used in electric sweepers, electric sightseeing cars, golf carts, The battery packs of communication, electric power, and ships are cyclically charged.
Technical parameters
.Input AC voltage range:180-260VAC;45-65HZ
.Input AC maximum current:15A@220VAC
.Max Efficiency:93.0%(Full Load@220VAC)
.Noise:≤45dB
.Working temperature:-20°C~＋55°C
.Storage temperature:-40°C~＋95°C
Product specifications
.Dimensions:193.00*116.40*71.70mm
.Weight:1.0kg±0.3kg
Multiple protection
.Input over current protection .Output reverse connection protection
.Output over voltage protection .Output short circuit protection
.Output no-load protection .Fully automatic shutdown
Mechanical Size&Model selection
Model |
Battery pack rated voltage |
Maximum output voltage |
Maximum output current |
PBC-170-12V10A |
12V |
15V |
10A |
PBC-170-12V12A |
12V |
15V |
12A |
PBC-170-12V15A |
12V |
15V |
15A |
PBC-170-24V8A |
24V |
30V |
8A |
PBC-170-36V5A |
36V |
45V |
5A |
PBC-170-48V5A |
48V |
60V |
5A |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
