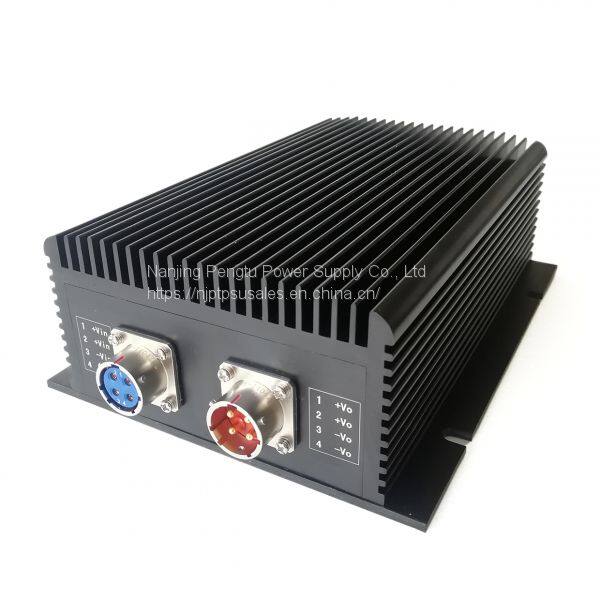

1kw Series 27V35A DC/DC Converter Charger

Name: 1kw Series 27V35A DC/DC Converter Charger
Brand: PENGTU
Availability: InStock

FOB Price

US$ 200 - 210 / Piece

10 Pieces(Min. Order)

Port Shanghai
Payment TermsT/T L/C PayPal Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	PENGTU	Place of Origin	China
Model Number	PD1K0E27ZM35	Output Power	1KW
Output Current	35A	Output Frequency	45-65HZ
Output Voltage	27V	Input Voltage	200-450VDC

Product Description

Product introduction and application areas

1kw series 27V35A DC/DC converter charger.This series products are adopted the modular design,widely used for lights,wipers,horns and dc air conditioners in electric bus,City trolleybuse,tramcar,subways and BTS,100%electric car and hybrid electric car.

Technical parameters

.Input voltage range:200-450VDC/200-750VDC(for option)

.Rated Output voltage:14VDC/27VDC(for option)

.Max output power:1KW

.Max Efficiency:94%(Full Load)

.Noise:≤45dB

.Protection grade:IP65

.Working temperature:-30°C~＋55°C

.Storage temperature:-40°C~＋95°C

Product specifications

.Dimensions:240*182*81mm

.Net weight:3.5kg

Multiple protection

.Output over current protection .Input over voltage protection

.Output over voltage protection .Input under voltage protection

.Output short circuit protection .Over temperature protection

.Output reverse connection protection

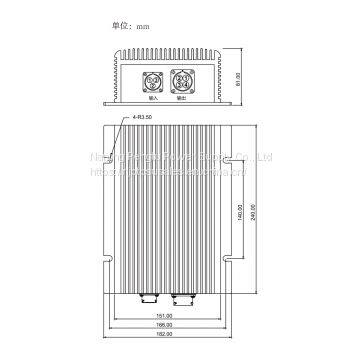

Mechanical Size&Model selection

Item	Input voltage range (Vdc)	Output Voltage (Vdc)	Output current (A)
PD1K0E14ZM70	200-450	14	70
PD1K0E27ZM35	200-450	27	35
PD1K0A24ZM40	18-36	24	40
PD1K0B24ZM40	40-80	24	40
PD1K0C24ZM40	66-154	24	40

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
