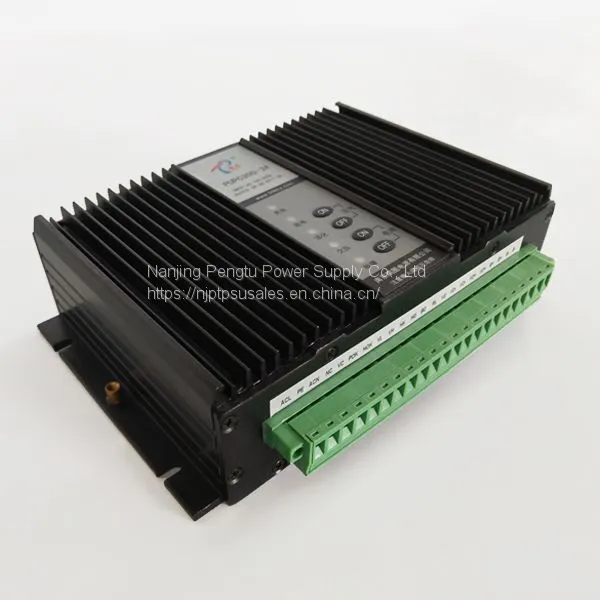

PUPC series 220V to 48V 500W AC/DC converter.Product details are as follows:
※Features
●Wide range of input voltage
●Broadband noise filter of input
●Surge suppress circuit of input
●Comply with UL 1950, IEC950 safety regulation
●Attractive outline design
●Fast dynamic response
Conditions:All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
※Input Characteristic
Voltage range
220VAC (Normal Rated Value): 176～264 VAC
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (Main) ……±0.5%
●Load regulation (Main) ……±0.5%
●Output Current Limited ……120%(Type)
●Output current ………5.6-14.9A for optional
●Output voltage ………24/48V
●Power …………300-800W
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VAC/MIN (Leakage current＜5mA)
●Input-case: >1500 VAC/MIN (Leakage current＜5mA)
●Output-case: >500 VDC/MIN
※Environmental Characteristic
●Case Temperature ………………………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military: -55-+105℃
※Dimension:168.00*110.00*45.00
※Protection Features
●Input under voltage protection ●Output over current protection
●Output short circuit protection ●Over temperature protection
※Model selection
Input V. (Vac) |
Input V. range (vac) |
Output V. (V) |
Peak Curr. (A) |
Ripple&noise pk-pk (mv) |
Efficiency(Typ) |
Models |
|
SING |
220 |
176-264 |
24 |
11.1 |
200 |
84% |
PUPC300-220S24 |
220 |
176-264 |
48 |
5.6 |
300 |
84% |
PUPC300-220S48 |
|
220 |
176-264 |
48 |
9.3 |
300 |
84% |
PUPC500-220S48 |
|
220 |
176-264 |
48 |
14.9 |
200 |
84% |
PUPC800-220S48 |
|
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.

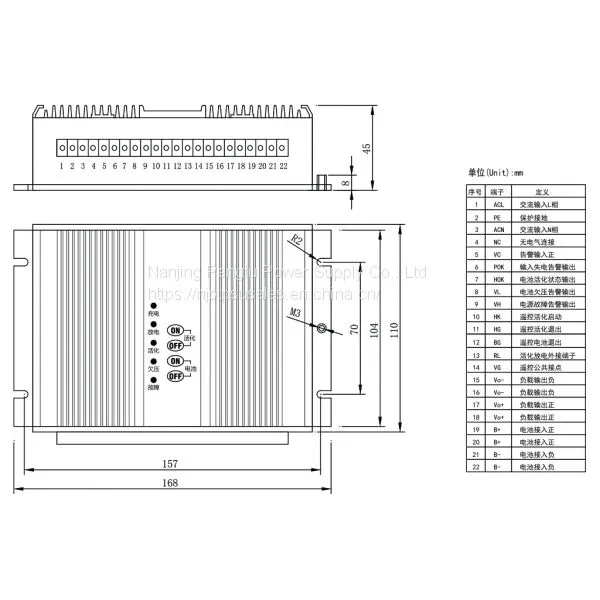

※Mechanical Drawing & Pin definition
