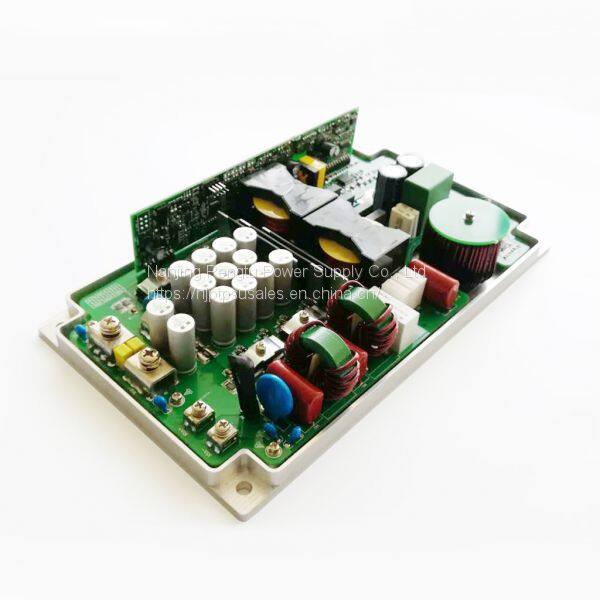

2.5kw Series 27V92A DC/DC Converter Charger
- Shanghai
- T/T L/C PayPal Other
- 15 days
You May Like
-
PBC-170 Series 12V10A EV Charger Small Size Light Weight and High Efficiency
-
PBC-210 Series 24V15A EV Charger Small Size Light Weight and High Efficiency
-
PUPC Series 220V to 48V 500W AC/DC Converter
-
PAB-A Series 220V to 24V 100W AC/DC Converter
-
PAB-B3 Series 220V to 28V 150W AC/DC Converter
-
PAB-C3 Series 220V to 48V 300W AC/DC Converter
Product Details
| Brand Name | PENGTU | Place of Origin | China | |
| Model Number | PD2K5E27YK92 | Output Power | 2.5KW | |
| Output Current | 92A | Output Frequency | 45-65HZ | |
| Output Voltage | 27VDC | Input Voltage | 200-450VDC |
Product Description
Product introduction and application areas
2.5kw series 27V92A DC/DC converter charger.This series products are adopted the modular design,widely used for lights,wipers,horns and dc air conditioners in electric bus,City trolleybus,tramcar,subways and BTS,100%electric car and hybrid electric car.It can be matched with fan cooling and water cooling.
Technical parameters
.Input voltage range:200-450VDC/200-750VDC(for option)
.Rated Output voltage:14VDC/27VDC(for option)
.Max Efficiency:94%(Full Load)
.Noise:≤55dB
.Working temperature:-30°C~＋55°C
.Storage temperature:-40°C~＋95°C
.Communication:CAN(for option)
Product specifications
.Dimensions:276*158*16mm
.Net weight:2kg
Multiple protection
.Output overcurrent protection .Input overvoltage protection
.Output overvoltage protection .Input undervoltage protection
.Output short circuit protection .Over temperature protection
.Output reverse connection protection .CAN communication for option

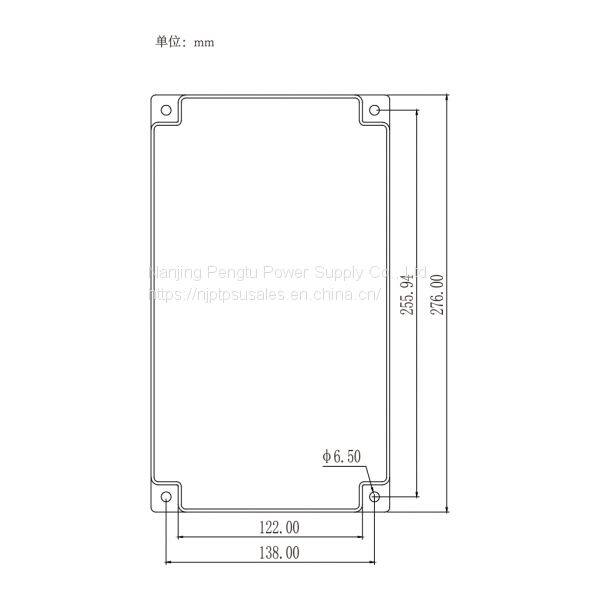

Mechanical Size&Model selection
Item | Input voltage range (Vdc) | Output Voltage (Vdc) | Output current (A) |
PD2K5E14YK178 | 200-450 | 14 | 178 |
PD2K5E27YK92 | 200-450 | 27 | 92 |
PD2K5G14YK178 | 200-750 | 14 | 178 |
PD2K5G27YK92 | 200-750 | 27 | 92 |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
