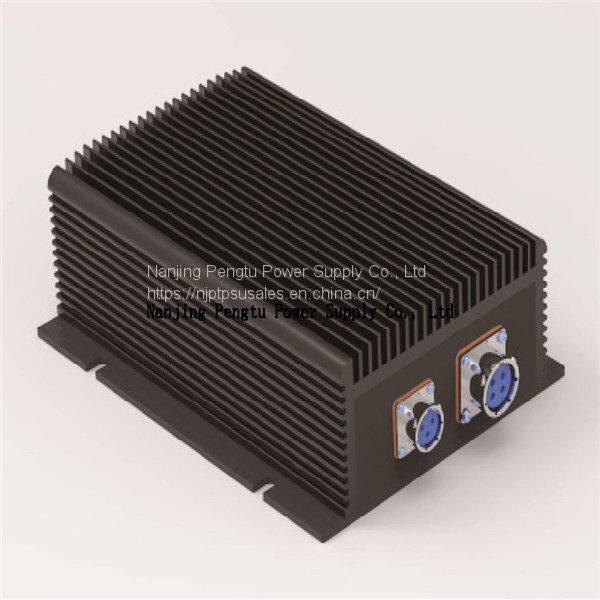

1KW Series DC DC Converter charger.Product introduction and application areas
This series products are adopted the modular design,widely used for lights,wipers,horns and dc air conditioners in electric bus,City trolleybuse,tramcar,subways and BTS,100%electric car and hybrid electric car.
Technical parameters
.Input voltage range:200-450VDC/200-750VDC(for option)
.Rated Output voltage:14VDC/27VDC(for option)
.Max output power:1KW
.Max Efficiency:94%(Full Load)
.Noise:≤45dB
.Protection grade:IP65
.Working temperature:-30°C~＋55°C
.Storage temperature:-40°C~＋95°C
Product specifications
.Dimensions:240*182*81mm
.Net weight:3.5kg
Multiple protection
.Output over current protection .Input over voltage protection
.Output over voltage protection .Input under voltage protection
.Output short circuit protection .Over temperature protection
.Output reverse connection protection

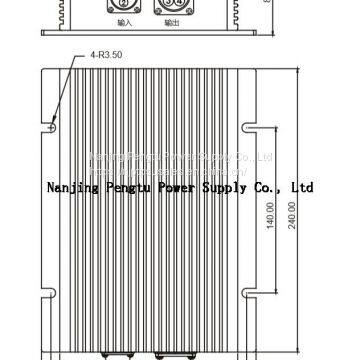

Mechanical Size&Model selection
Item |
Input voltage range (Vdc) |
Output Voltage (Vdc) |
Output current (A) |
PD1K0E14ZM70 |
200-450 |
14 |
70 |
PD1K0E27ZM35 |
200-450 |
27 |
35 |
PD1K0A24ZM40 |
18-36 |
24 |
40 |
PD1K0B24ZM40 |
40-80 |
24 |
40 |
PD1K0C24ZM40 |
66-154 |
24 |
40 |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.
