Product introduction and application areas

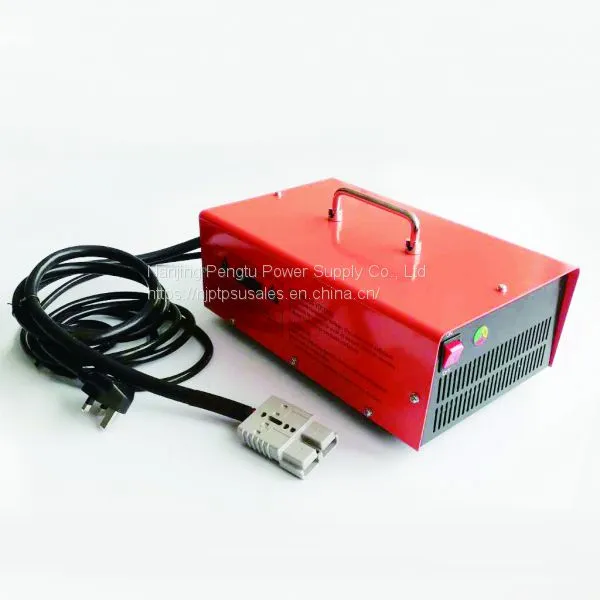

3kw series 48V50A sealed portable charger;it is suitable for lead-acid liquid-filled batteries,lead-acid maintenance-free batteries,lithium batteries,etc.;it can be used for battery charging of electric light trucks,sightseeing cars,patrol cars,dining cars,forklifts,etc.
Technical parameters
. AC input voltage range: 180-260VAC;45-65HZ
. Power factor: ≥0.98
. Max Efficiency: 93% (Full Load)
. Noise: ≤65dB
. Protection grade: IP20
. Working temperature:-30℃~＋55℃
. Storage temperature:-40℃~＋95℃
Product specifications
. Dimensions:368*220*145.5mm
. Net weight:6.0kg
Optional advanced configuration
. Can be with CAN bus;
. Optional low pressure auxiliary 12v;
. Can be connected with three-color indicator light;
. Charging lock function(The vehicle power system can be locked through the relay during charging process);
. Can add CC, CP to meet the charging needs of various occasions;
Multiple protection
.Output over current protection .Input under voltage protection
.Output over voltage protection .Over temperature protection
.Output short circuit protection .Fully charge automatic shutdown
.Output no-load protection .CAN failure protection
.Output reverse connection protection
Mechanical Size&Model selection
Item |
Battery Rated Voltage |
Max Output Voltage |
Max output current |
PA3K0N48FB50 |
48V |
66V |
50A |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
