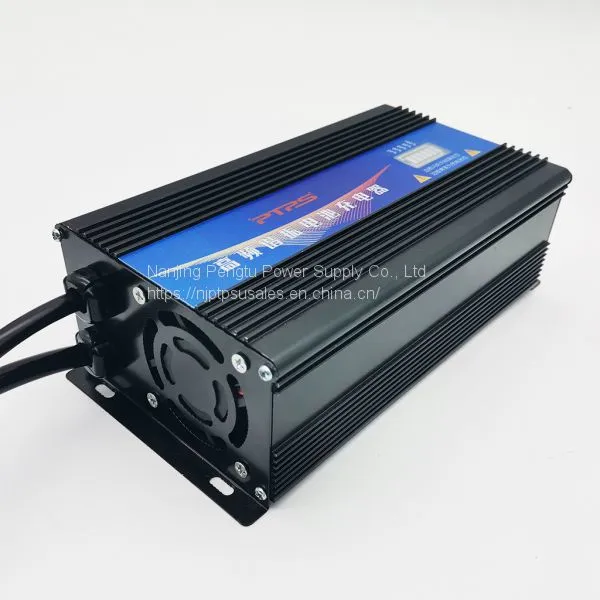

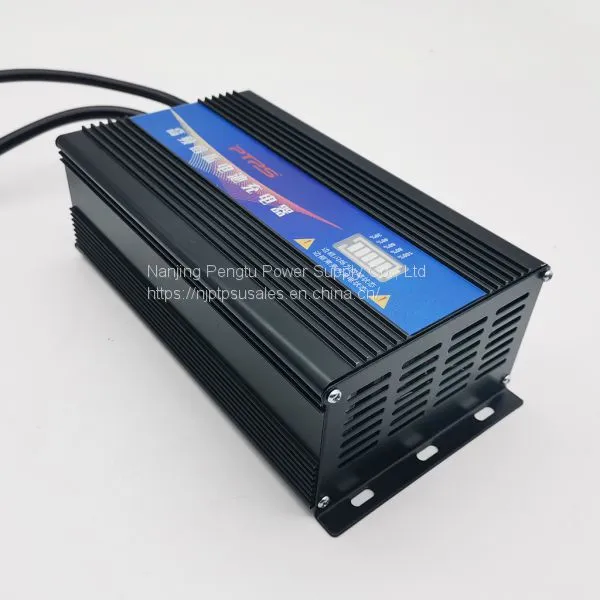

Help CenterPBC210 Series High Frequency Resonant Battery Charger
Related Products
-
700W Series 60V10A Sealed Portable ChargerUS$ 20 - 30MOQ: 100 Pieces -
1.1kw Series 48V15A Sealed Portable ChargerUS$ 30 - 40MOQ: 100 Pieces
-
1.3kw Series 36V30A Sealed Portable ChargerUS$ 100 - 110MOQ: 20 Pieces
-
2kw Series 72V25A Sealed Portable ChargerUS$ 100 - 110MOQ: 20 Pieces
-
3kw Series 48V50A Sealed Portable ChargerUS$ 362 - 382MOQ: 5 Pieces
Product introduction and application areas
This series of chargers adopts MCU intelligent control mode; it is suitable for rich liquid lead-acid batteries, maintenance-free lead-acid batteries, lithium batteries, nickel-hydrogen batteries, nickel-chromium batteries, etc.; it can be used in electric sweepers, electric sightseeing cars, golf carts, The battery packs of communication, electric power, and ships are cyclically charged.
Technical parameters
.Input AC voltage range:190-240VAC;45-65HZ
.Input AC maximum current:7A@220VAC
.Max Efficiency:93.0%(Full Load@220VAC)
.Noise:≤45dB
.Working temperature:-20°C~＋55°C(No condensation)
.Storage temperature:-40°C~＋95°C
Product specifications
.Dimensions:223.00*116.00*71.70mm
.Weight:1.5kg±0.3kg
Multiple protection
.Output over current protection
.Input over voltage protection
.Output over voltage protection
.Input under voltage protection
.Output short circuit protection
.Over temperature protection
.Output reverse connection protection
.Output no-load protection
.Fully automatic shutdown
Mechanical Size&Model selection
Model |
Battery pack rated voltage |
Maximum output voltage |
Maximum output current |
PBC-200-24V15A |
24V |
34V |
15A |
PBC-200-48V15A |
48V |
68V |
15A |
PBC-200-60V10A |
60V |
85V |
10A |
PBC-200-72V10A |
72V |
105V |
10A |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
Mechanical Size
