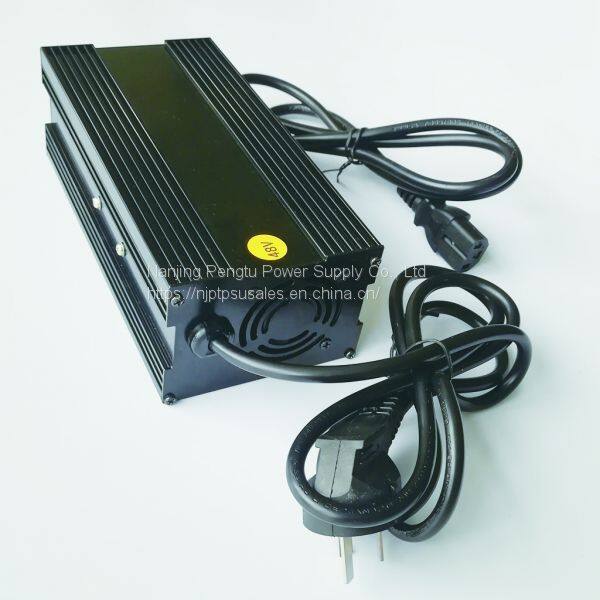

700W Series 60V10A Sealed Portable Charger
Product introduction and application areas
700W series 60V10A sealed portable charger.They are suitable for liquid-rich lead-acid batteries,sealed(colloidal)lead-acid batteries,lithium batteries,nickel-metal hydride batteries,nickel-cadmium batteries,etc.They can be used to cycling charge and floating charge the battery in electric car,electric motorcycle,sightseeing car,patrol car,forklift,communication,electric power,ship,etc.

. AC input voltage range: 200-240VAC;45-65HZ
. AC max input current: 3.6A@220VAC
. Max Efficiency: 90% (Full Load)
. Noise: ≤65dB
. Working temperature:-30℃~+55℃
. Storage temperature:-40℃~+95℃
Product specifications
. Dimensions:193*93*64mm
. Net weight: 1.2kg
Multiple protection
.Output over current protection .Output reverse connection protection
.Output over voltage protection .Over temperature protection
.Output short circuit protection .Fully charge automatic shutdown
.Output no-load protection

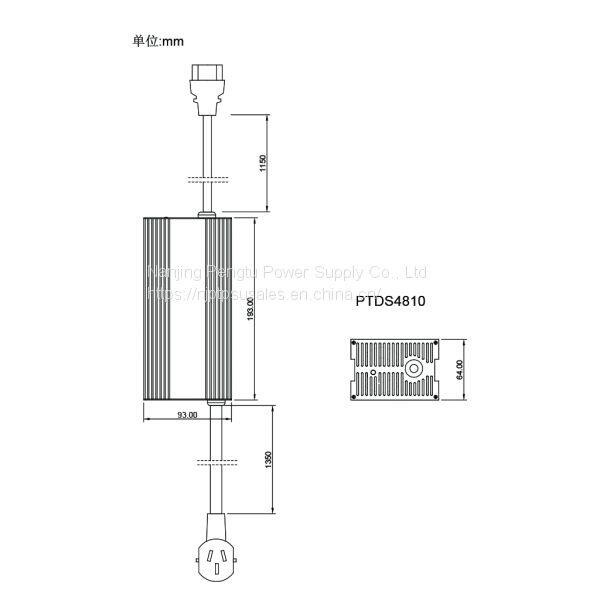

Mechanical Size&Model selection

Item |
Battery Rated Voltage |
Max Output Voltage |
Max output current |
PTDS4805 |
48V |
68V |
5A |
PTDS4810 |
48V |
68V |
10A |
PTDS6005 |
60V |
85V |
5A |
PTDS6010 |
60V |
85V |
10A |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.
