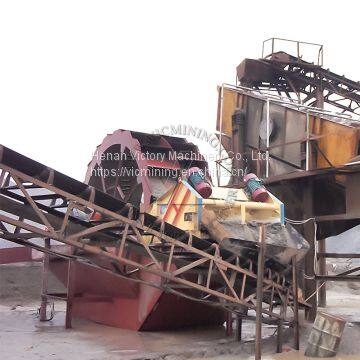

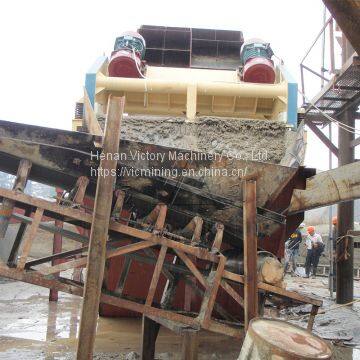

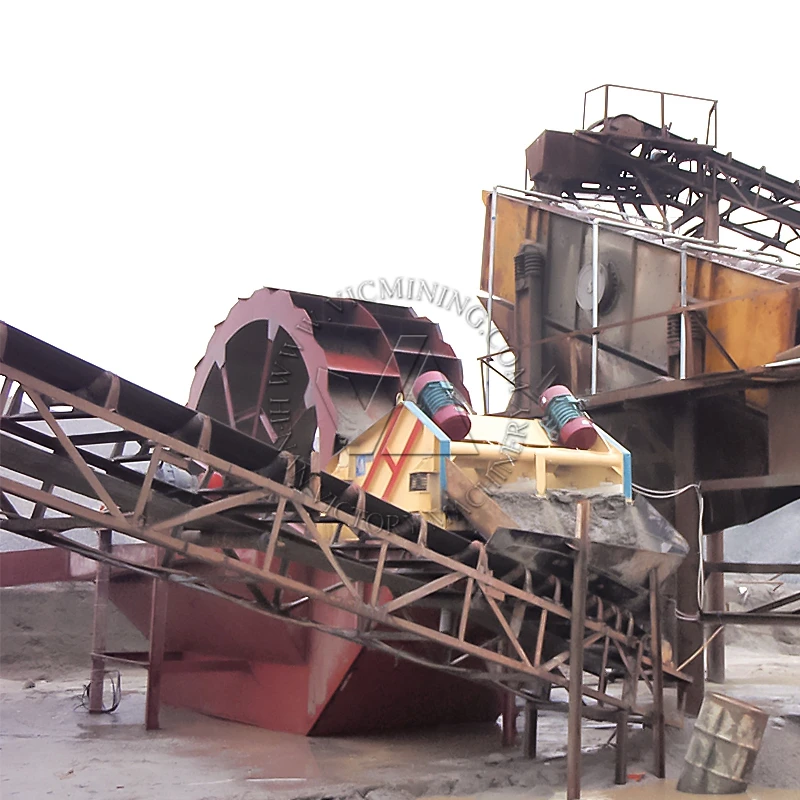

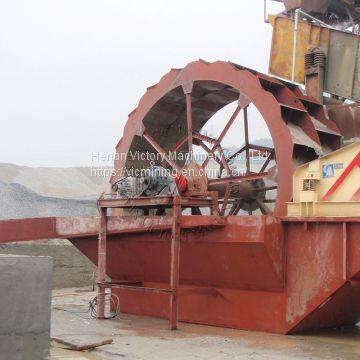

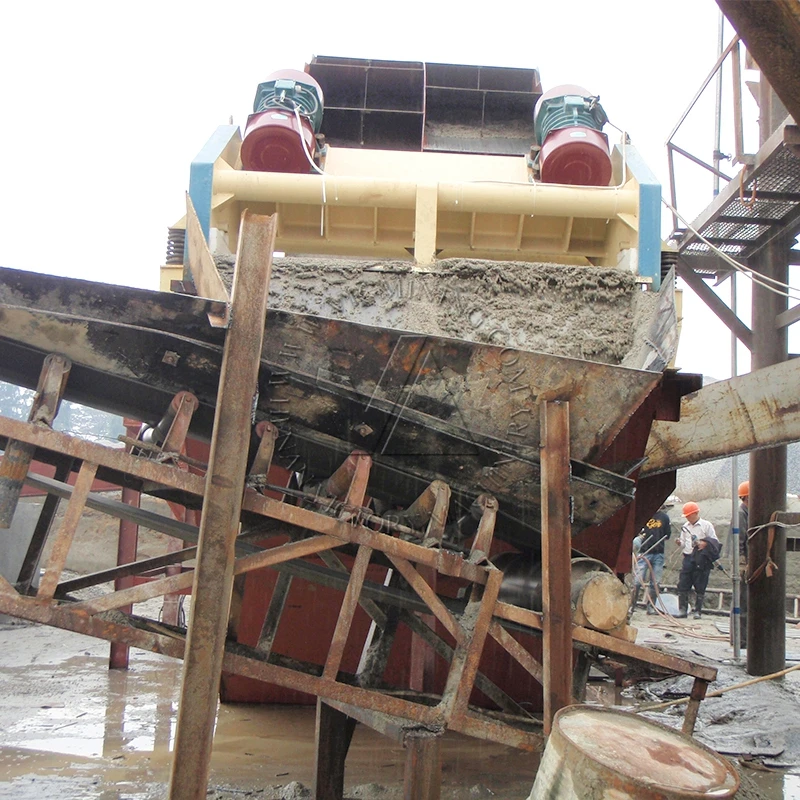

The wheel bucket type sand washing machine is a kind of washing equipment, which can clean and separate the stone powder and soil in thesand. Its novel sealing structure and reliable transmission device ensurethe effect of cleaning and dewatering. It is an effient sand washing equipment used in cooperation with the sand making machine. The wheelbucket sand washing machine is widely used in many industries, such asconstruction site, sandstone plant, concrete dam site of hydropowerstation, etc. it has the advantages of high cle aning degree, reasonablestructure, large processing capacity, small power consumption, and lesssand loss in the process of sand washing. Especially, the driving part of thesand washing machine is isolated from water and sand, so its failure rate ismuch lower than that of the commonly used sand washing machine atpresent, which is the upgrading of domestic sand washing industry The bestchoice.
Performance Features
2, New sealing struc ture, fully enclosed oil bath transmission device
3, The adjustable over flow weir plate ensures the high eficiency and dura bility of the product, and the effect of cleaning and dewatering is good
4. The fine product produced is stable
Move the impeller to rotate slowly, and the sand andgravel will enter into the washing tank, driven by the impeller.Rolldown and grind each other to remove the impurities covering thesurface of sand and stone, and destroy the package.Water vaporlayer covered with sand particles to facilitate dehydration; meanwhile, add water to form strong water flow, and take awayimpurities and foreign matters with small specific gravity, anddischarge them from the overflow outlet washing tank cleaning function. The clean sand is taken away by the blade, and finally thesand is taken from the rotating impeller pour it into the dischargetank to complete the cleaning of sand.
Application
Wheel bucket sand washing machine is widely used in sand and stone plant, mining building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries to wash materials.In the sand making process, it is used to clean the soil and dust in the sand, so as to achieve the purpose of cleaning the sand. It is also used for sand extraction in ore dressing and other operations, or similar process
Parameters of sand washing machine
| Model |
Bucket diameter (mm) |
Roating Speed (r/min) |
Feed granularity (mm) |
Processing capacity (t/h) | Motor Power (kw) |
Dimensions (mm) |
| XS2600 | 2600 | 2.5 | ≤10 | 30-60 | 5.5 | 3200*2270*2672 |
| XS2800 | 2800 | 1.8 | ≤10 | 50-70 | 5.5 | 3700*2500*2990 |
| XS3000 | 3000 | 1.7 | ≤10 | 70-100 | 7.5 | 3900*2700*2990 |
| XS3200 | 3200 | 1.44 | ≤10 | 80-120 | 11 | 3965*3150*3300 |
| XS3600 | 3600 | 1.21 | ≤10 | 120-180 | 15 | 4355*3400*3700 |
| XS4500 | 4500 | 1 | ≤10 | 180-250 | 22 | 5155*3750*4600 |
Customised processing plant
Deliver A Customised Processing Plant Which Will Add Maximum Value for Your Business, Modular Wet Classification For A Variety Of Industrial Sands. Material Testing Lab.100+ Project Engineers,Service Support Team,Lowest Running Costs.
Completed projects
Vietnam sand production line project
Argentina river pebble sand production line project
Nigeria limestone sand production line project
Peru cobble sand production line project
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
