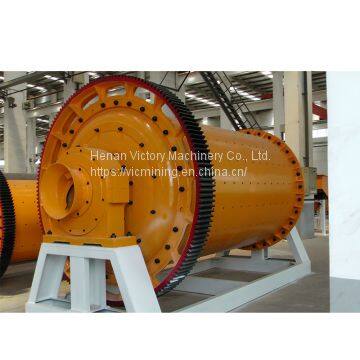

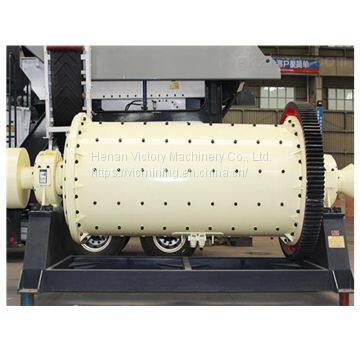

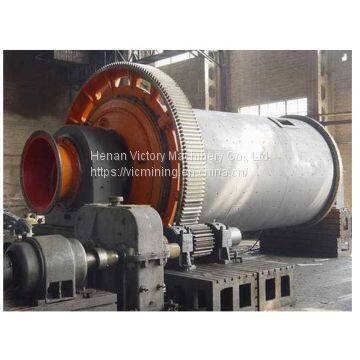

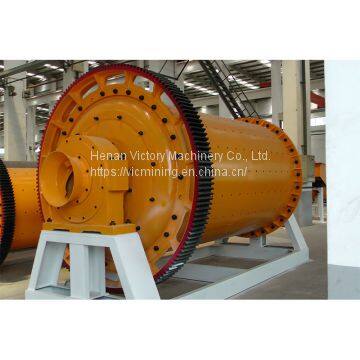

Help CenterHot Selling High Quality The Rod Mill Sand Making Machine For Crushing Line
Related Products
-
Henan Vertical Shaft Engine of Sand Making MachineUS$ 5000 - 8888MOQ: 1 Set -
High Efficiency Impact Fine Crusher SupplierUS$ 5000 - 8888MOQ: 1 Set
-
China Small Stone Roller Crusher Price ListUS$ 5000 - 8888MOQ: 1 Set
-
Hot VSI Series Vertical Shaft Sand Making Machine With PriceUS$ 5000 - 8888MOQ: 1 Set
-
Special The Plate and Frame Filter Press Easy to OperationUS$ 5000 - 8888MOQ: 1 Set
The rod mill sand making machine drives the cylinder to rotateby the motor through the reducer and the surrounding largegear reduction drive or by the low speed synchronous motordirectly through the peripheral large gear reduction drive. Thecylinder is equipped with a suitable grinding medium - steel rod.Under the action of centrifugal force and friction force, the grinding medium is lifted to a certain height and falls in a fallingor falling state. The material to be milled continuously entersthe inside of the cylinder by the feeding port, is crushed by themoving grinding medium, and discharges the product out of themachine through the overflow and continuous feeding forceto carr y out the next process operation.
Performance Features
1.Power saving. 40% less power than old model.
2.Using advanced controllable in-and-out rod grinding type sandmaking machine technology, combined with the particular grindingmaterial with appropriate grinding body, using line contact not traditional change the surface contact, so that the sanding machine'sdischarge granularity is more uniform, higher yield, suitable for orewith different hardness (Mohs hardness5.5- 12).
3.The fineness of discharge can be adjusted. We can adjust the particlesize of the discharge simply, the built-in fineness control device, thedischarge device can be added with the screening device, and the twochecks are performed to ensure that neither the over-grinding nor theunqualified product is mixed into the finished product.
4.Rod mill sand making machine is available in both dry and wet forms.Clients can choose according to their actual situation. For the processing of quartz sand, dolomite, monazite and other products, themill can be equipped with a magnetic separator to remove iron.
Working principle
The rod mill sand making machine drives the cylinder to rotate by themotor through the reducer and the surrounding large gear reductiondrive or by the low speed synchronous motor directly through theperipheral large gear reduction drive. The cylinder is flled with asuitable grinding medium · steel rod. Under the action of centrifugal force and friction force, the grinding medium is lifted to a certain heightand falls in a falling or falling state. The material to be milled continu- ously enters the inside of the cylinder by the feeding port, is crushed bythe moving grinding medium, and discharges the product out of the machine through the overflow and continuous feeding force to carry outthe next process operation.
Product Parameters
| Model | Cyllinder length/diameter (mm) |
Barrel speed (r/min) |
Feed partical size (mm) |
Rowing granularity (mm) |
Processing capacity (t/h) | Motor Power (kw) |
Total Weight (t) |
|
| MBS0918 | 900 | 1800 | 36-38 | ≤25 | 0.833-0.147 | 0.62-3.2 | 18.5 | 5.9 |
| MBS0924 | 900 | 2400 | 36 | ≤25 | 0.833-0.147 | 0.81-4.3 | 22 | 6.7 |
| MBS1224 | 1200 | 2400 | 36 | ≤25 | 0.833-0.147 | 1.1-49 | 30 | 13.9 |
| MBS1530 | 1500 | 3000 | 29.7 | ≤25 | 0.833-0.147 | 2.4-7.5 | 75 | 19.8 |
| MBS1830 | 1830 | 3000 | 25.4 | ≤25 | 0.833-0.147 | 4.8-11.6 | 130 | 349 |
| MBS2130 | 2100 | 3000 | 23.7 | ≤25 | 0.833-0.147 | 14-35 | 155 | 46.5 |
| MBS2136 | 2100 | 3600 | 23.7 | ≤25 | 0.833-0.147 | 19-43 | 180 | 48.7 |
| MBS2430 | 2400 | 3000 | 21 | ≤50 | 0.833-0.147 | 25-65 | 245 | 59.7 |
| MBS2736 | 2700 | 3600 | 20.7 | ≤50 | 0.833-0.147 | 32-86 | 380 | 92.5 |
| MBS2740 | 2700 | 4000 | 20.7 | ≤50 | 0.833-0.147 | 32-92 | 400 | 95 |
| MBS3245 | 3200 | 4500 | 18 | ≤50 | 0.833-0.1470 | 64-180 | 630 | 149 |
Customised processing plant
Deliver A Customised Processing Plant Which Will Add Maximum Value for Your Business. Modular Wet Classification For A Variety Of Industrial Sands. Material Testing Lab.100+ Project Engineers,Service Support Team,Lowest Running Cost.
Completed projects
Vietnam sand production line project
Argentina river pebble sand production line project
Nigeria limestone sand production line project
Peru cobble sand production line project
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
