Automatic pressure riveting machine automatically send nut riveting machine yipeng QY8-500 - c automatic feed pressure riveting pressure riveting machine China factory house

Parameters that

Intake air pressure range:2 bar - 7 bar (0.2 Mpa to 0.7 Mpa)

The power supply voltage:Ac 220 v

Power:0.02 kw

Pressure range of output:0.6 tons to 8 tons infinitely adjustable

Total trip:100 mm (including power trip)

Power stroke:6 mm

High throat:385 mm

Deep throat:500 mm

The fastest frequency of use:1 time / 1 second

Trip gas consumption:1.3 liters / 1 times

Overall dimensions of equipment:(long) 1030 mm * 650 mm (wide) * 2060 mm (high)

The weight of equipment:500 kg

Model description: QY - gas-liquid booster drive (economy, high efficiency, energy saving, environmental protection)

                                  8 - output pressure (tons)

                              500 - deep throat (MM)

                                  C - C type cast steel frame (frame 45 # integral cast steel forming, overall processing)

                                  Z - intelligent pressure controller (control) pressure accurately

The characteristics of the gas and liquid pressurization technology:

1, gas-liquid pressurization technology is a collection of pneumatic and hydraulic combines the advantages of both;

2, 6 bar of ordinary compressed air, driven to produce 2 tons - 100 tons of blunt pressure, without hydraulic system;

3, advanced technical guarantee in place of "soft" no impact vibration, greatly reduces the noise, and greatly improve the machining quality of workpiece stamping die life;

4, unique "adaptive" technology ensure impact pressure to adapt and adjust automatically according to the resistance change, realize the stamping process of * * *;

5, pneumatic control system, simple and reliable, convenient operation and maintenance;

6 work pressure, can according to the processing needs stepless adjustable, full use of pressure control to ensure the consistency of product processing, guarantee in the course of processing is not affected by the thickness of the product error;

7, the advanced seal technology, to ensure long-term free maintenance work;

8 and very low energy consumption.

9, high action frequency.

Matching function configuration:

1, the optional tool to protect system and positive limit oil cylinder. Positive limit is specially designed for soft base material, such as PC board, plastic, glass and aluminum, it makes the fastener when the pressure plate will not be pressure deformation or crushed.

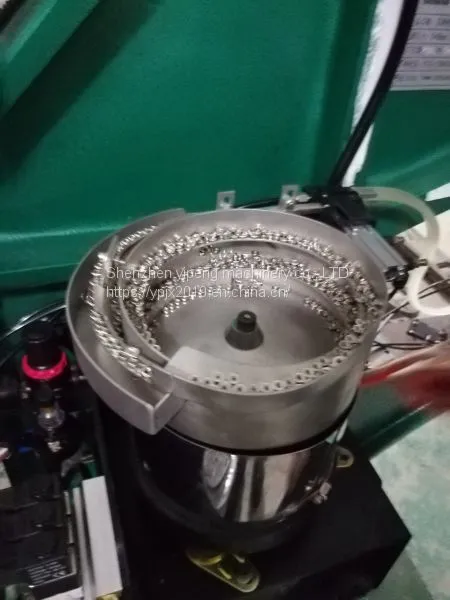

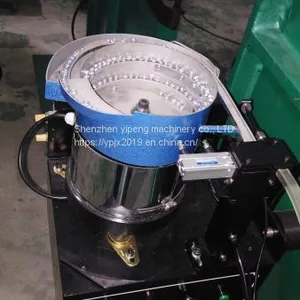

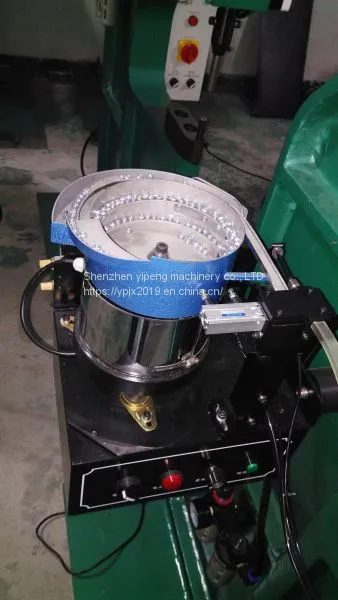

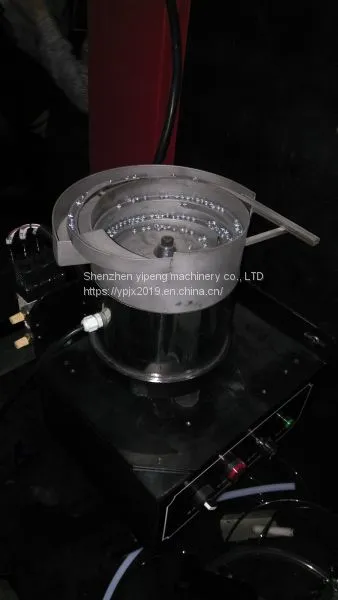

2, optional PEM modular automatic feeding system, provide 3 times the efficiency of manual feeding pressure riveting, lets you in not under the condition of the automatic feeding tray automatically, import, transportation nut, screw and nut column. And can be used to mold HuanXing high speed conveniently and 2 minutes to complete the nut, screw and nut column replacement, to provide as many as 2000 pieces of fastener feed/hour delivery speed.

3, optional leakproof riveting counting system, for each product riveting screw number after processing complete in every product to carry on the prompt, if the product of the number of riveting is not consistent with the number of the riveting, leakproof module will stop the machine and prompt operation personnel, at the same time with the number of total batch processing products. With manual reset and automatic reset can choose two kinds of mode.

4 optional feeding equipment of different specification, automatically send nail tools according to customer's requirements (screw, screw length must be greater than the tail size 1.5 times)

5, optional auxiliary work surface, with the sheet without bending or large workpiece processing, reduce the operating personnel work load, improve work efficiency.

6, optional laser light positioning and allow the operator to quickly on the upper and lower mould, artifacts, riveting screw anchor point, effectively improve the work efficiency.

Scope of application:

Widely used in the chassis cabinets, electrical appliances, LCD stent, self-help housing payment terminals, logistics equipment, communication products and computer shell strong connection between the components.

High output of new torque resistance, resistance to the top of the applicable Yu Gangtong, copper, aluminum and aluminum alloy coin.
