Parameters that
Intake air pressure range:2 bar - 7 bar (0.2 Mpa to 0.7 Mpa)
The power supply voltage:Ac 220 v
Power:0.02 kw
Pressure range of output:0.6 tons to 8 tons infinitely adjustable
Total trip:100 mm (including power trip)
Power stroke:6 mm
High throat:385 mm
Deep throat:500 mm
The fastest frequency of use:1 time / 1 second
Trip gas consumption:1.3 liters / 1 times
Overall dimensions of equipment:(long) 1030 mm * 650 mm (wide) * 2060 mm (high)
The weight of equipment:500 kg
Model description: QY - gas-liquid booster drive (economy, high efficiency, energy saving, environmental protection)
8 - output pressure (tons)
500 - deep throat (MM)
C - C type cast steel frame (frame 45 # integral cast steel forming, overall processing)
Z - intelligent pressure controller (control) pressure accurately

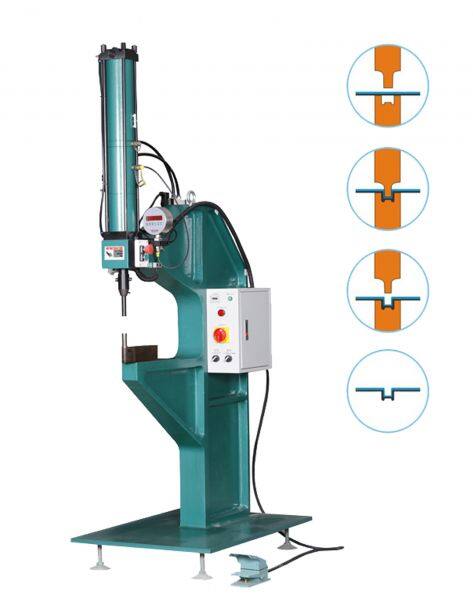

A rivet connection equipment

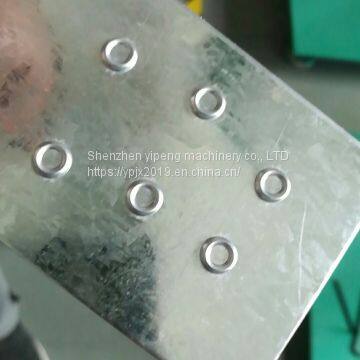

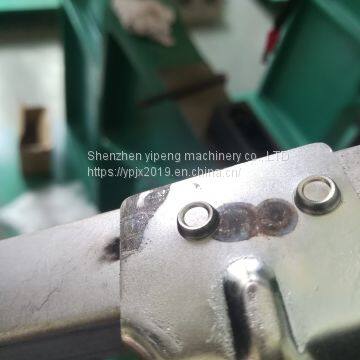

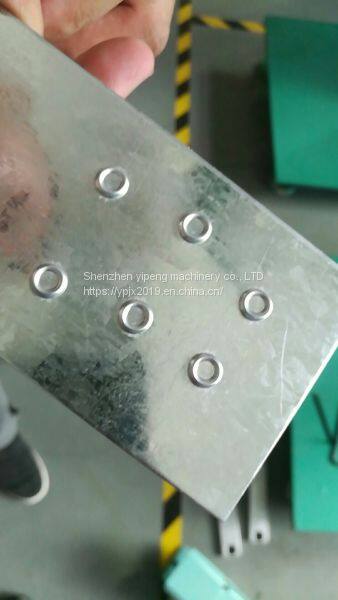

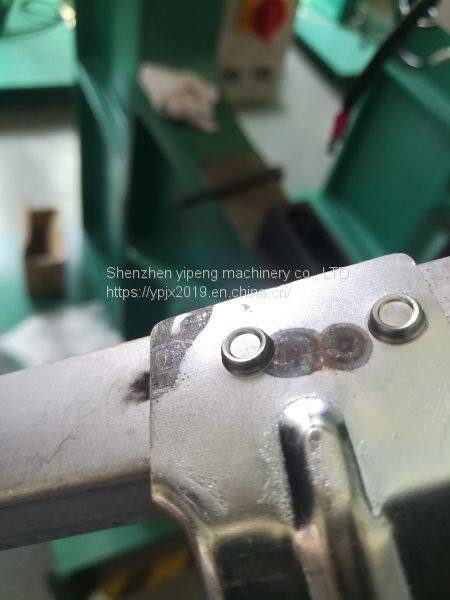

Without rivet connection technology using the pressure riveting machine and special connection mold, through a strong instantaneous high pressure processing, material of cold extrusion deformation according to the panel itself, forming a certain tensile resistance and shear strength of stress concentration inside inlaid dot, can be different material thickness of two layer or multilayer board connected. A rivet connection technology without any requirement on the surface of the plate, the join in the original coating, paint layer on the surface of the plate is not damaged. Connection process automation degree is high, it can be a single point or multi-point connection at the same time.
The application range of the gas-liquid supercharged pressure riveting machine
Widely used in washing machine shell, the automotive industry, aerospace, wind valve, air ducts, communication products, pet cage elevator bridge at the end of the shell and the strong connection between computer shell parts. High output of new torque resistance, resistance to the top of the applicable Yu Gangtong, copper, aluminum and aluminum alloy coin.
