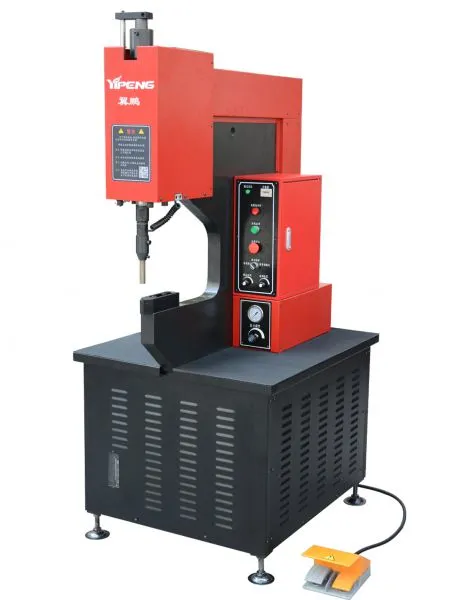

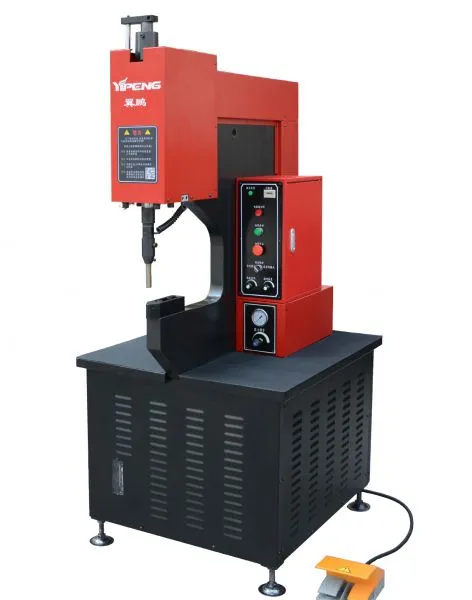

Pressure riveting pressure riveting machine China vendors would YY8-500 - c hydraulic pressure riveting machine

Parameters that

The power supply voltage:Ac 380 v

Power:2.2 kw

Pressure range of output:0 to 8 tons infinitely adjustable

Total trip:110 mm (including power trip)

High throat:380 mm

Deep throat:500 mm

The fastest frequency of use:1 time / 1 second

Overall dimensions of equipment:(long) 840 mm * 1100 mm (wide) * 2020 mm (high)

The weight of equipment:600 kg

The holding time 0 to 5 s

Repeat accuracy + / - 1%

Upper die down speed is 60 mm/s

Model description: YY - hydraulic drive (economy, high efficiency, energy saving, environmental protection)

                                 8 - output pressure (tons)

                             500 - deep throat (MM)

                                 C - C type cast steel frame (frame 45 # integral cast steel forming, the whole processing molding)

Configuration:

Steel frame

Digital display instrument

The pressure protection device

Output power controller

When rolling control

Foot switch 1 foot

The laser positioning device of a cross

Automatic feeding system

USES:

Products are widely used in sheet metal industry, metal and other industries. Applies to a variety of fasteners and panel connection (purchase often-expensive screw, not to take off the screw, panel screws, pressure riveting nut, blind hole nut column, up riveting nut), and a rivet connection, etc.
