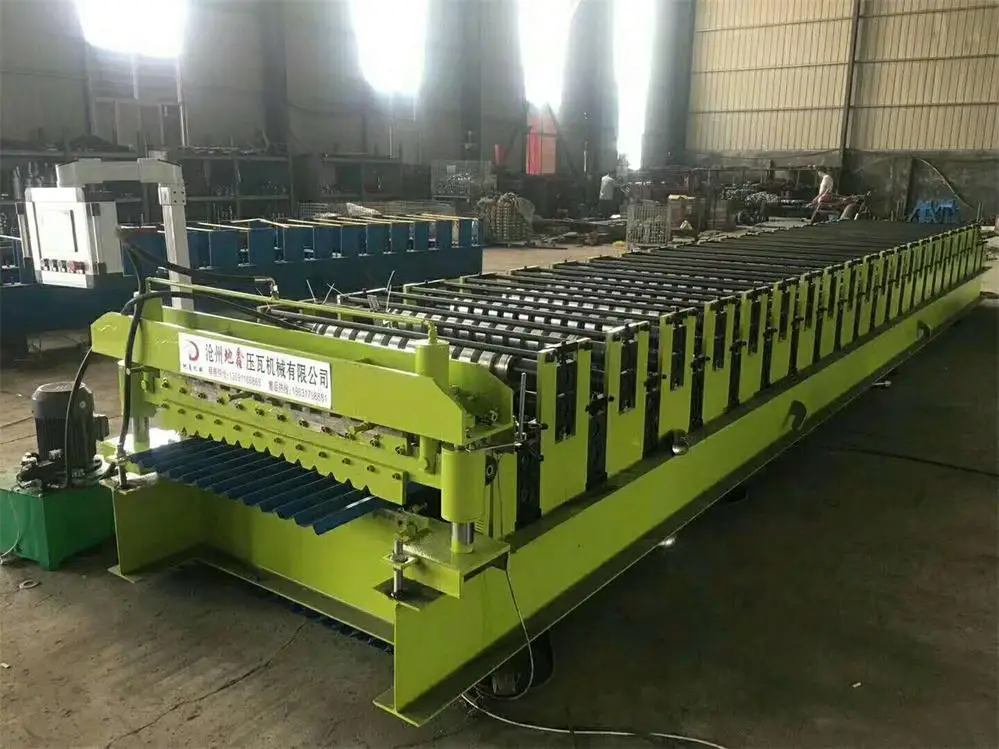

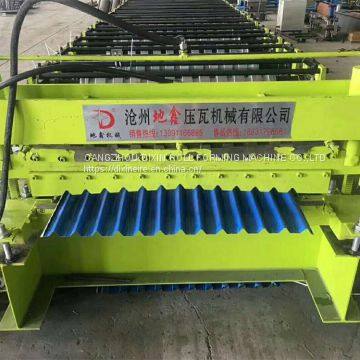

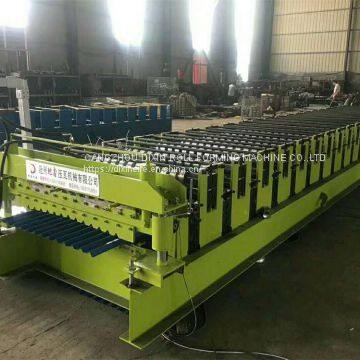

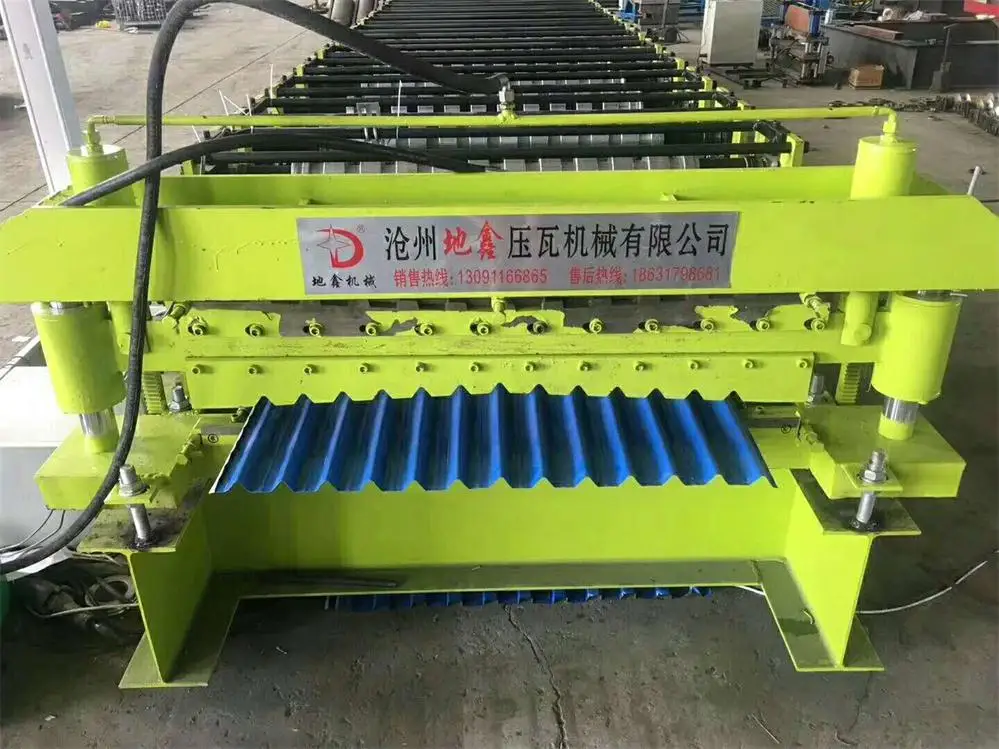

Trapezoidal Roof Sheet Roll Forming Machine trapezoidal metal roofing sheet roll forming machine
Machine Parameter
1.Suitable material |
Color steel sheet , galvanized steel sheet,aluminum sheet |
2.Installation Dimension (L*W*H): |
6.5m*1.5m*1.4m(depend on design) |
3.Main motor power |
3KW with Cycloidal reducer |
4.Hydraulic station power |
3KW |
5. Hydraulic oil pump |
CB-E 310 |
6.Thickness of material |
0.2mm~0.8mm |
7.Diameter of principal axis |
Φ70-90mm |
8.Material expand width |
1000,1200,1250mm |
9.Electric tension |
380V 3phase 50HZ or as the customer's requirements |
10.Material of roller |
High grade 45# forged steel plated with hard chrome plating |

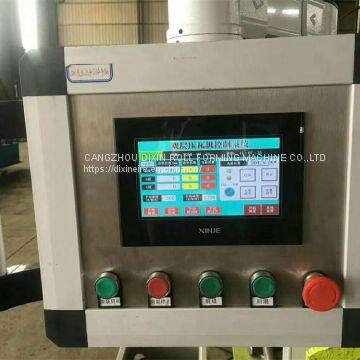

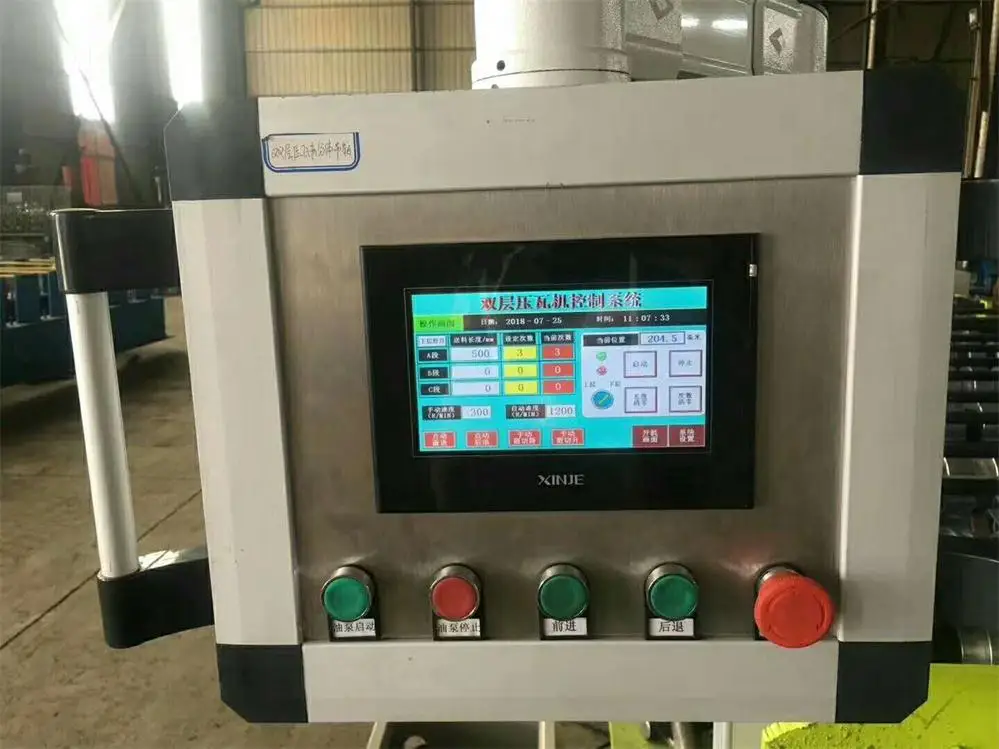

11.Controlling system |
PLC |
12.Processing speed |
3-6m/min |
13.Processing precision within |
1.00mm (depend on design) |
14.Material of cutting blade |
Cr12 mould steel with quenched treatment |
15.Kind of drive |
0.6 inch chain link bearing model 6210 |
16.Roller station |
8-20 Rollers |
17.Roller material |
high grade 45#steel; Cr12 quenching |
18. Leak frame load-bearing |
4.6T |

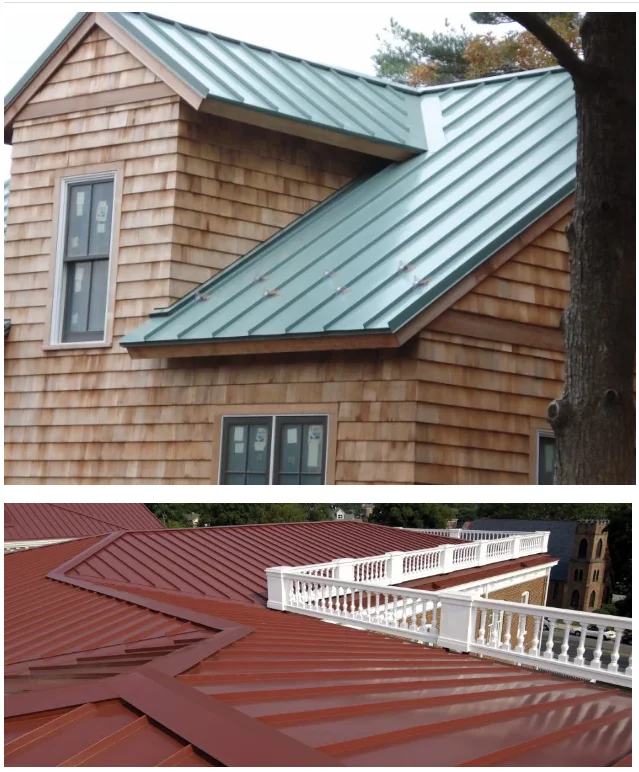

The advantage of IBR sheet includes beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

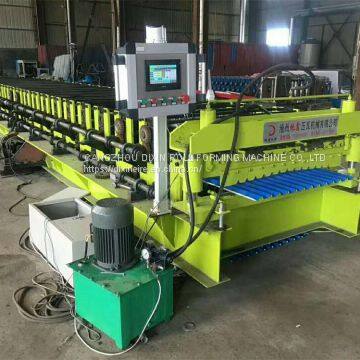

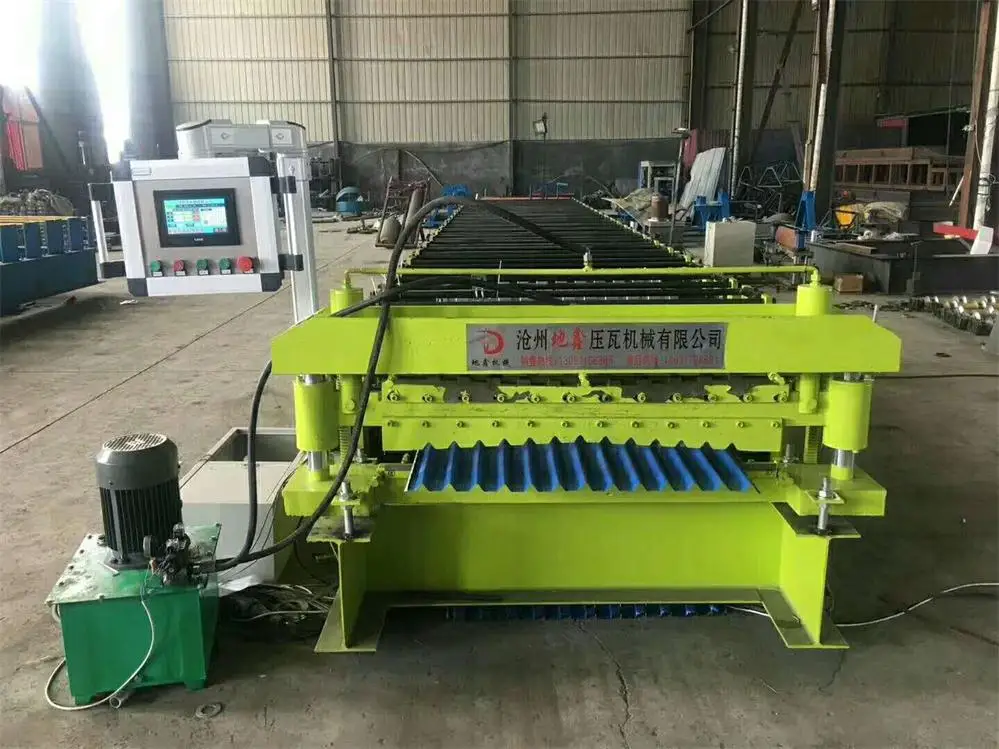

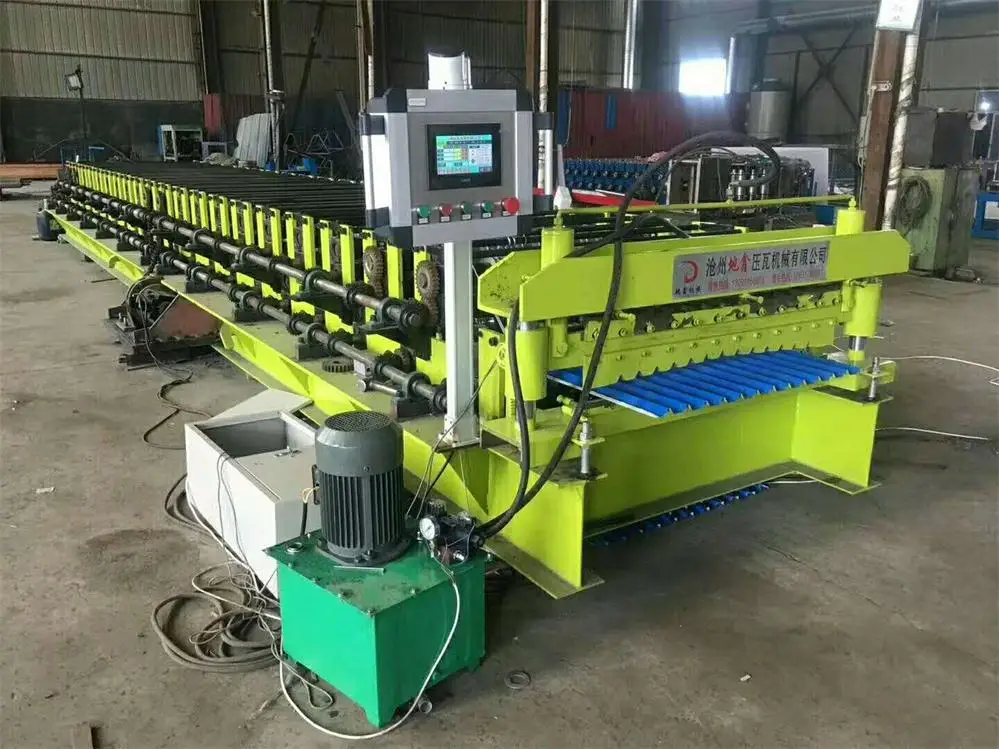

Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table
12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.
After-sale service:
We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
Our machines are sold to the USA market, and feedback very well.

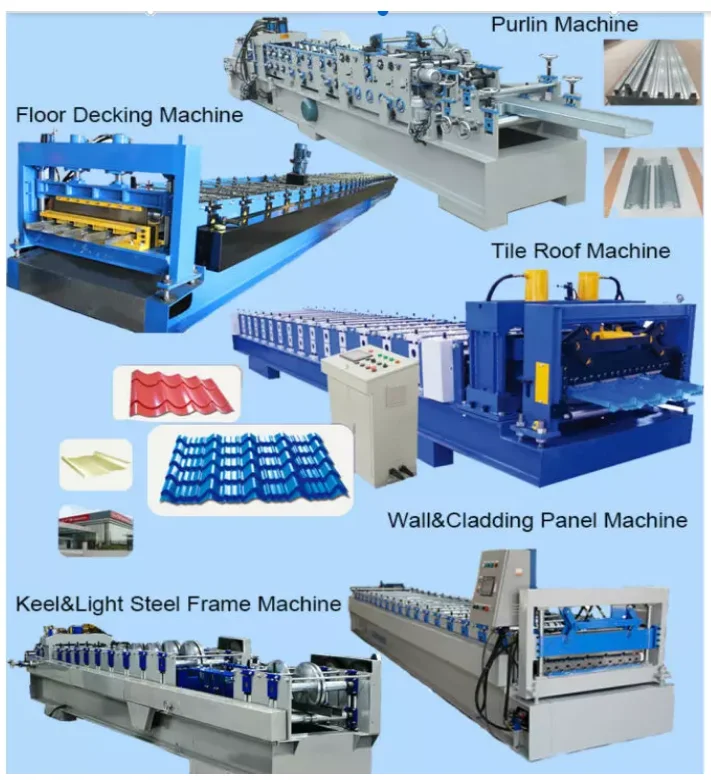

Our main products cover corrugated tile roll forming machine, trapezoidal panel roll forming machine,glazed roofing roll forming machine, C purlin roll forming machine, roll shutter door roll forming machine and so on.
We also can design and produce machines according to customer’s requirement.
If you interested any products, please contact me for further information.
