China products corrugated aluminium zinc roll sheet tile making forming roofing machine
- Strong bull style roofing sheet roll forming machine, also called trapezoidal roofing sheet roll forming machine, corrugated sheet roll forming machine, very popular in Indonesia, Thailand, Philippines, Vietnam, Myanmar.
- The machine can use color steel plate, galvinazed steel plate, G550 full hard galvanizes steel coil, thickness range is 0.25-0.35mm, coil width is 914mm.
- Double layer roofing tile roll forming machines can produce 2 different type roofing sheets as customer's request, each layer has the standalone feeding table, the width is fixed by screw as customer's drawing.
- You can see the structure frame (baffle) we used 40mm cast iron, whole piece cast iron, to make sure the structure more stronger, and can give more precise for the shafts.
- The baffles are positioned by CNC computer, keep each space between two baffles same, and the baffle is double triangle support to strengthen, double bearing, running without noise.
Technical Parameters:
No. |
Item |
Specification |
1 |
Can Formed Material |
PPGI,GI,AI |
2 |
Equipment operation |
Automatic |
3 |
Voltage |
380V 50Hz 3Phase or as your requirement |
4 |
Thickness of sheet (mm) |
0.25-0.35mm |
5 |
Material width(mm) |
As your requirement |
6 |
Cover Width of the sheet after formed |
as your drawing |
7 |
The size of the roll forming machine |
6000mmx1600mmx1400mm |
8 |
Speed |
8-15m/min |
9 |
Diameter of shaft |
70mm |
10 |
Weight of the Machine |
4300-4500KGS |
11 |
Material of rollers |
C45 steel quenched and chromed |
12 |
Motor brand |
Siemens or Guomao |
13 |
PLC |
Siemens or Delta or Mitsubushi |
14 |
Total power (kw) |
8kw |
15 |
Power of hydraulic system |
4kw |
16 |
Power of main molding core |
4kw |

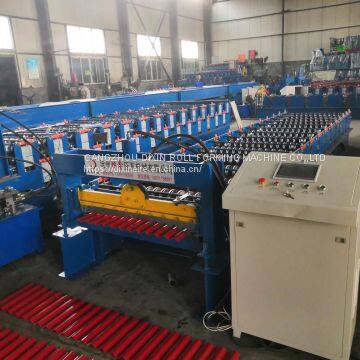

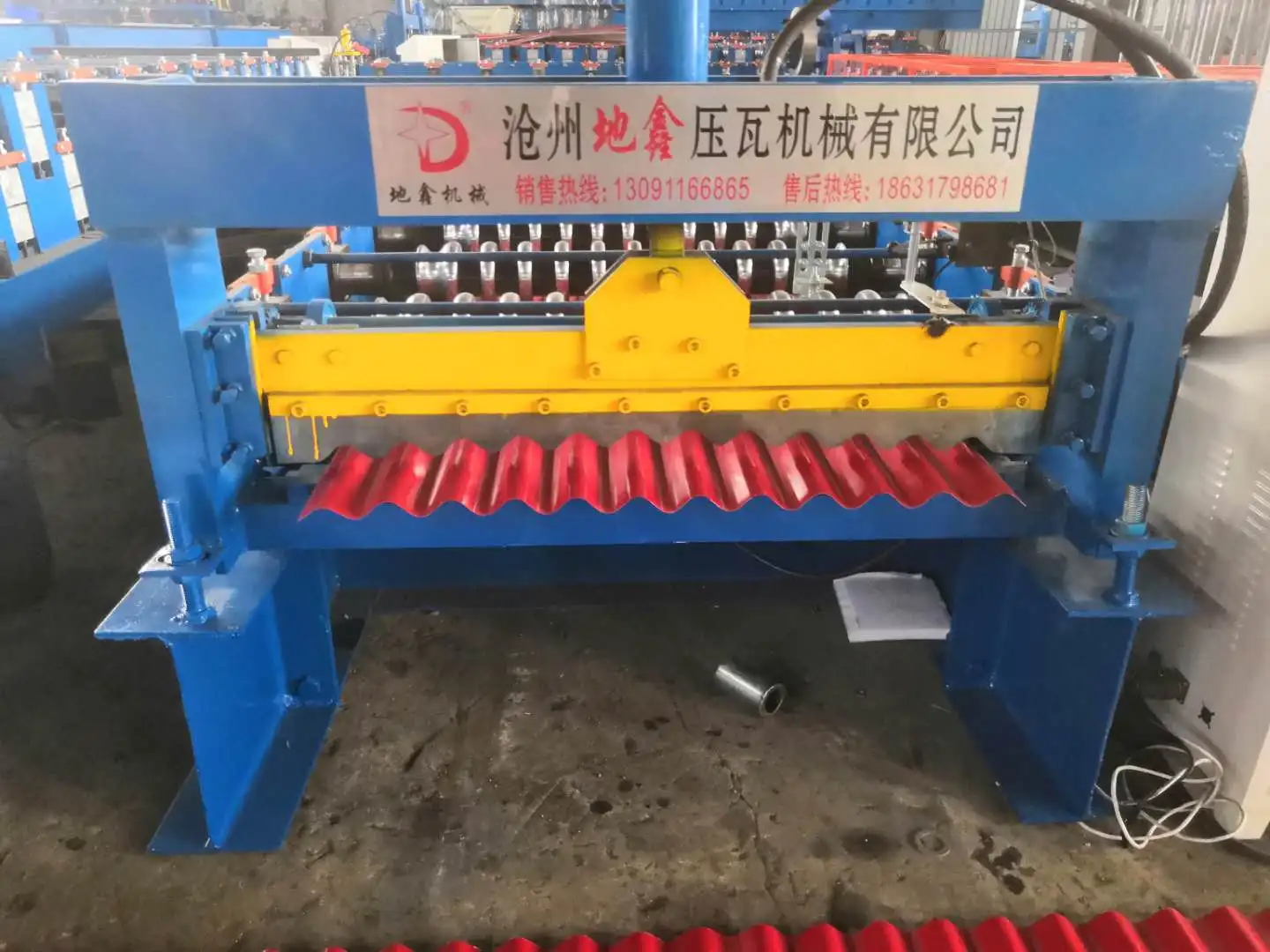

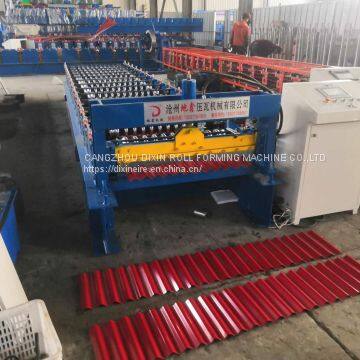

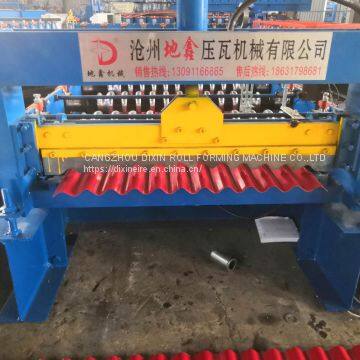

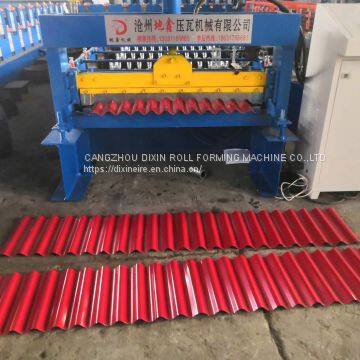

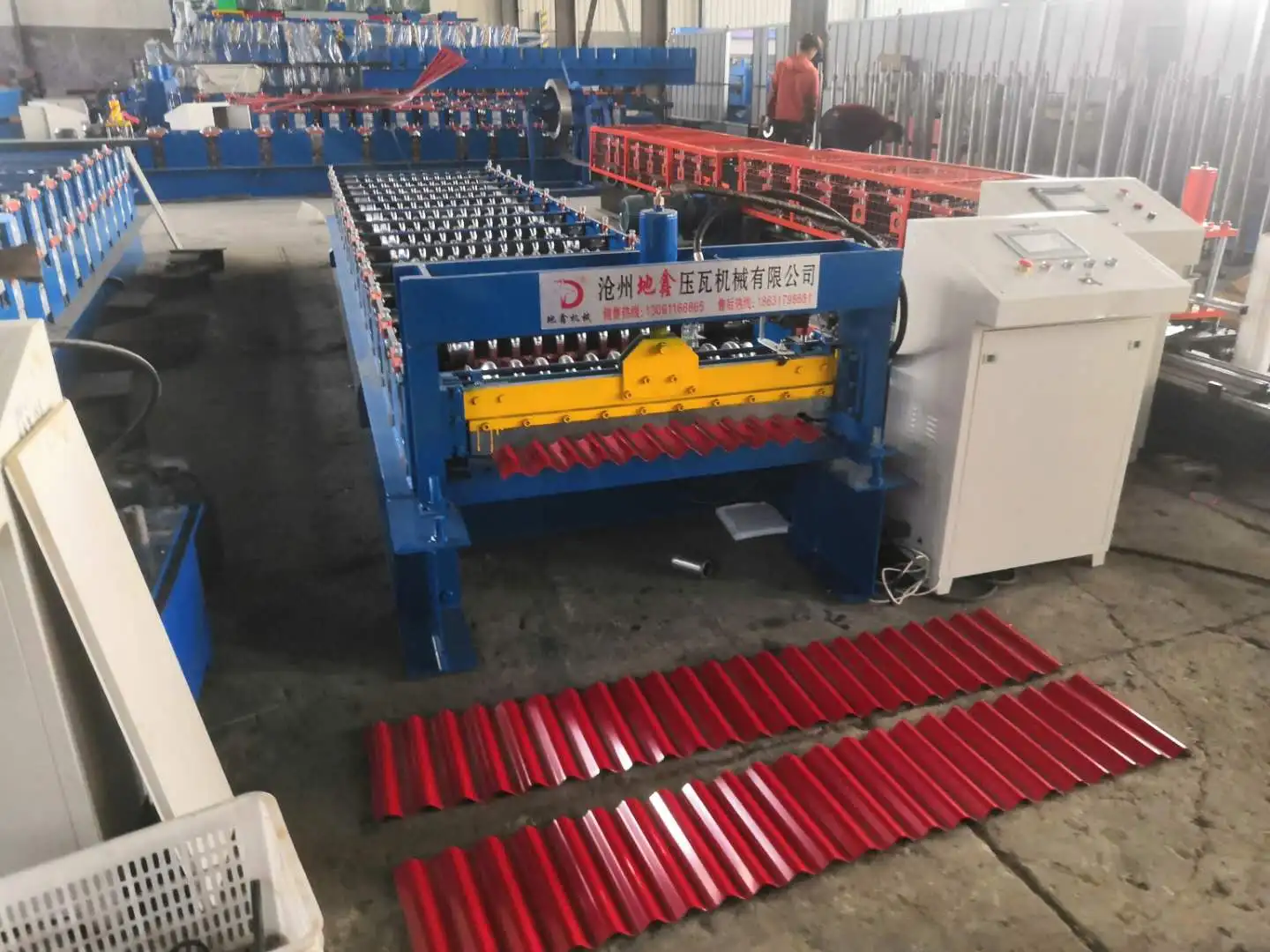

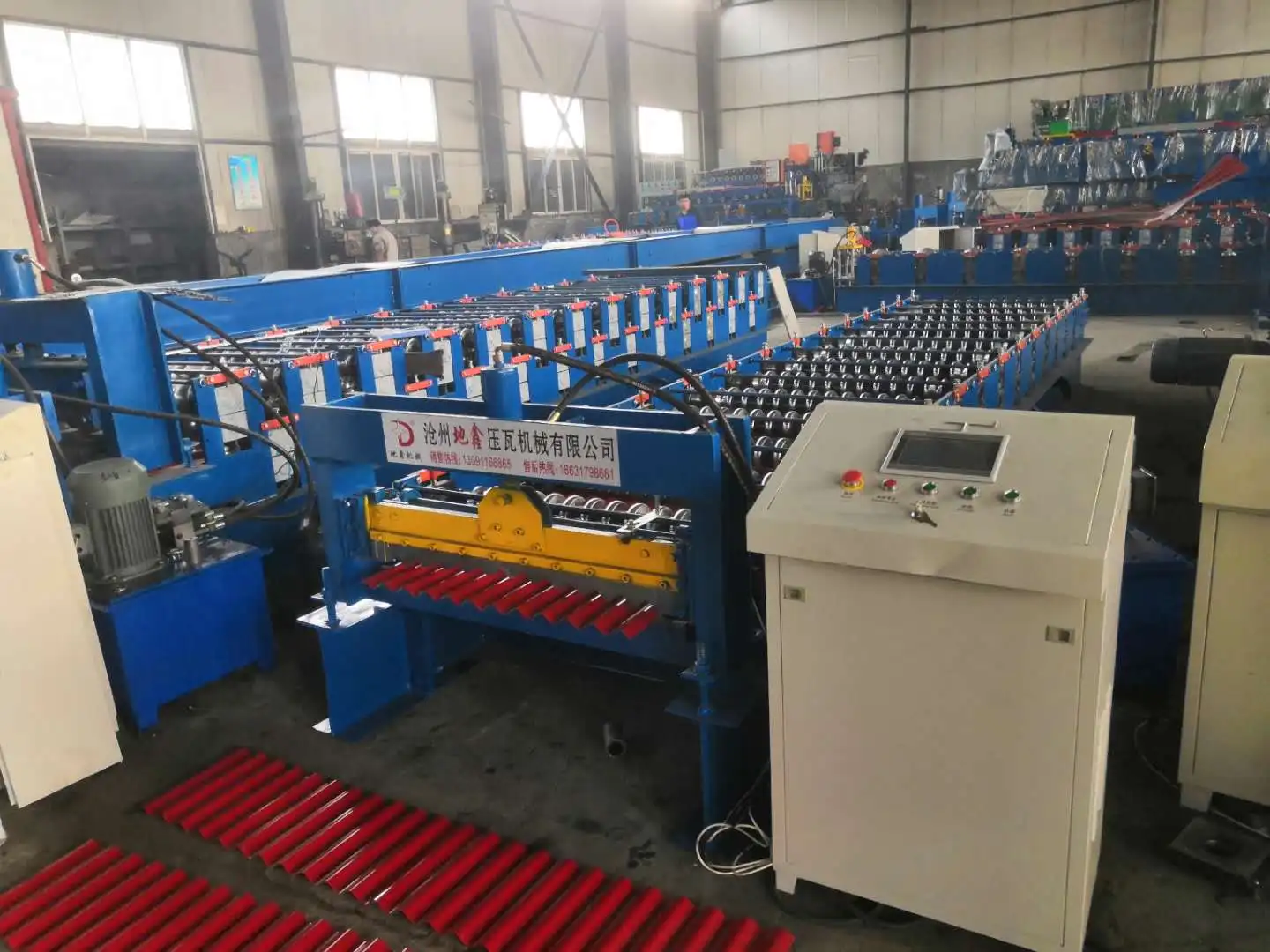

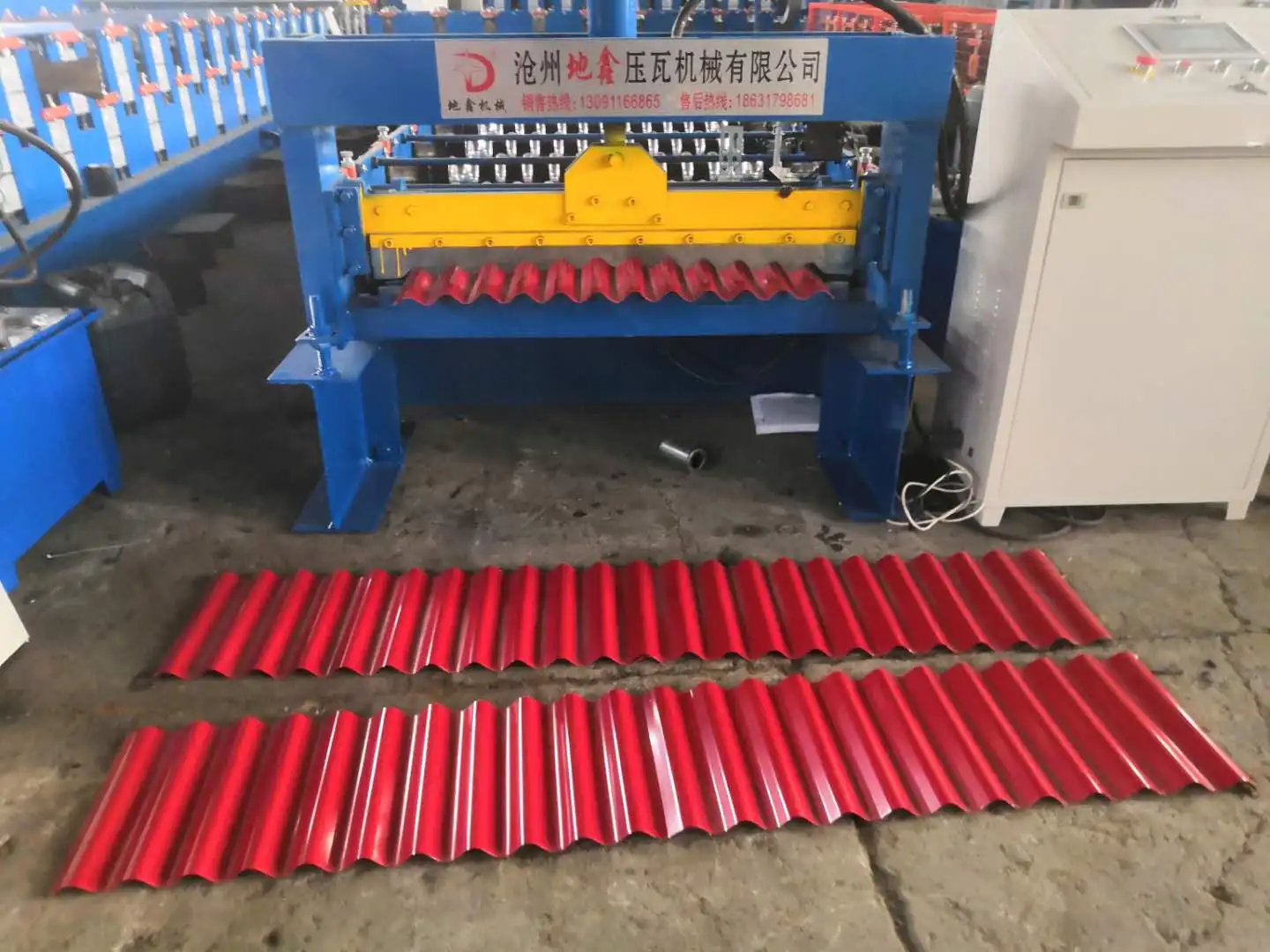

Machine Pictures
Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table
We are special in roll forming machine for nearly 20 years, with high quality and competitive price in China.

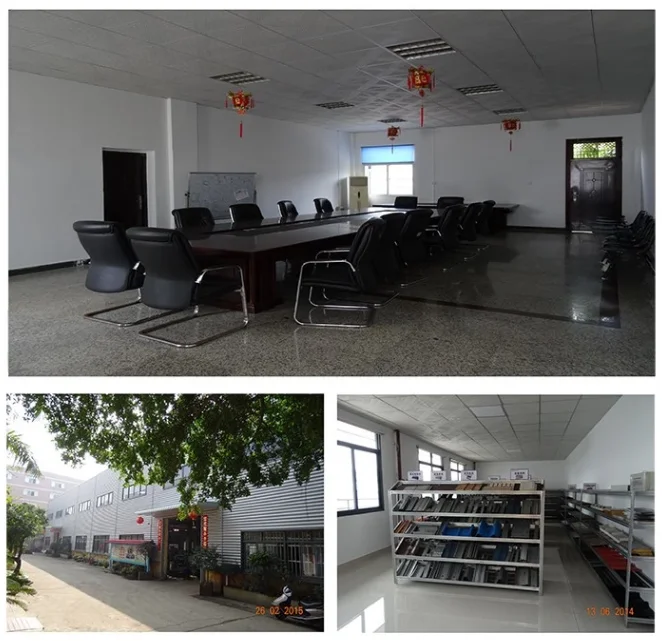

Our company covers an area of 30,000 square meters, including separated workshop for glazed roll forming machine, sandwich panel roll forming machine, C/Z purlin roll forming machine and Plastic coated workshop etc. the showcase workshop with our products open also is waiting for your coming.
our products are popular in Russia, India, UK, USA, Kazakhstan, Tajikstan ,Malaysia, Nigeria, Rumania and Albania etc. more than 50 countries and region with acclaim.
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
If you want to know about more details about our machine ,Please Contact Eire Mobile /what'sapp/Wechat :8615227510182
Quality first, service first, your satisfaction is the driving force of our progress.
