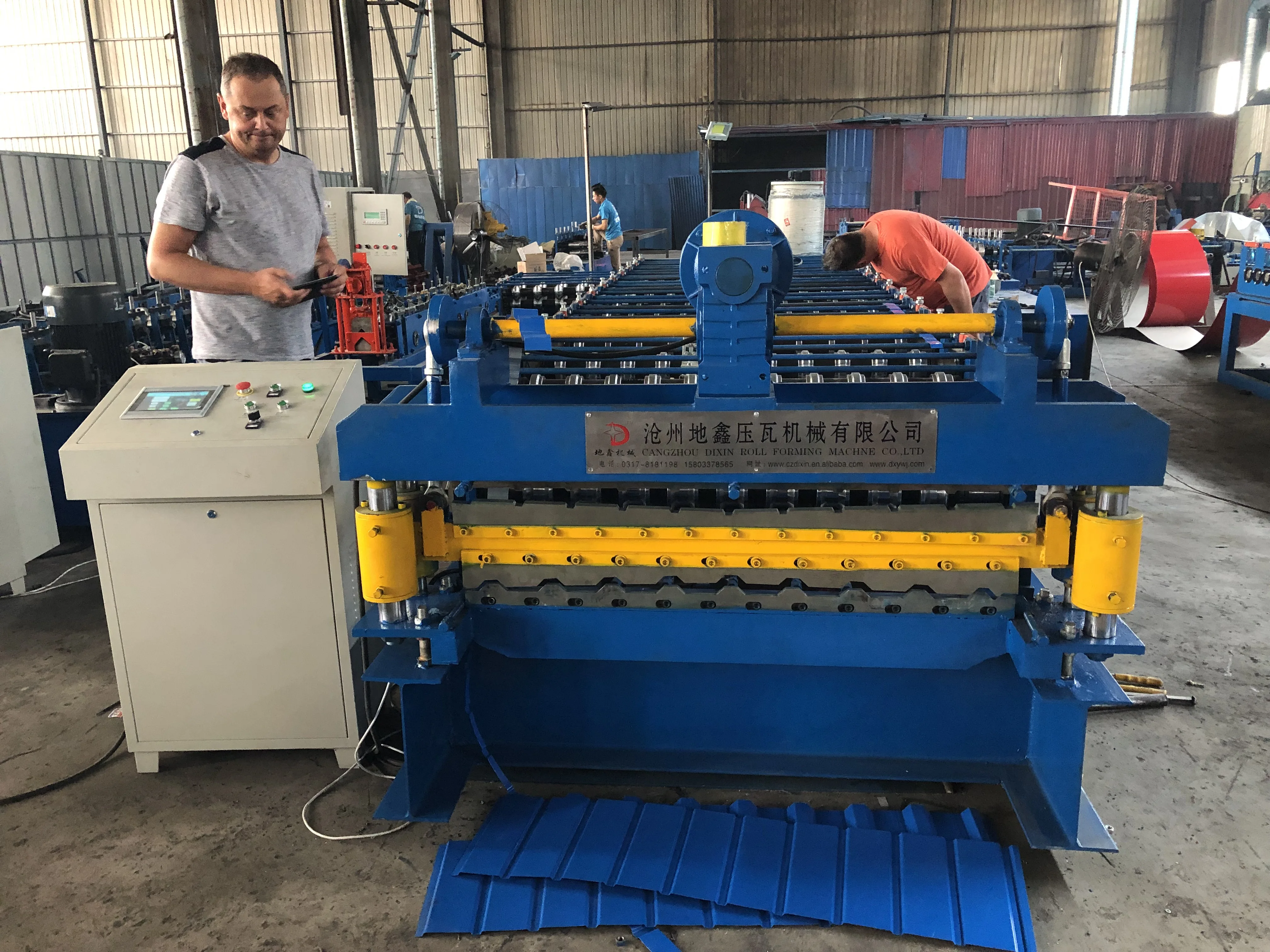

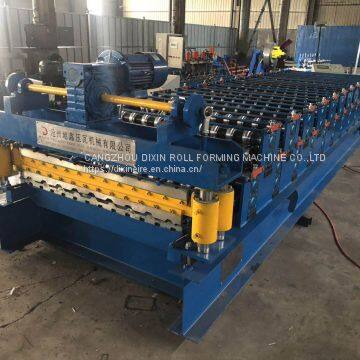

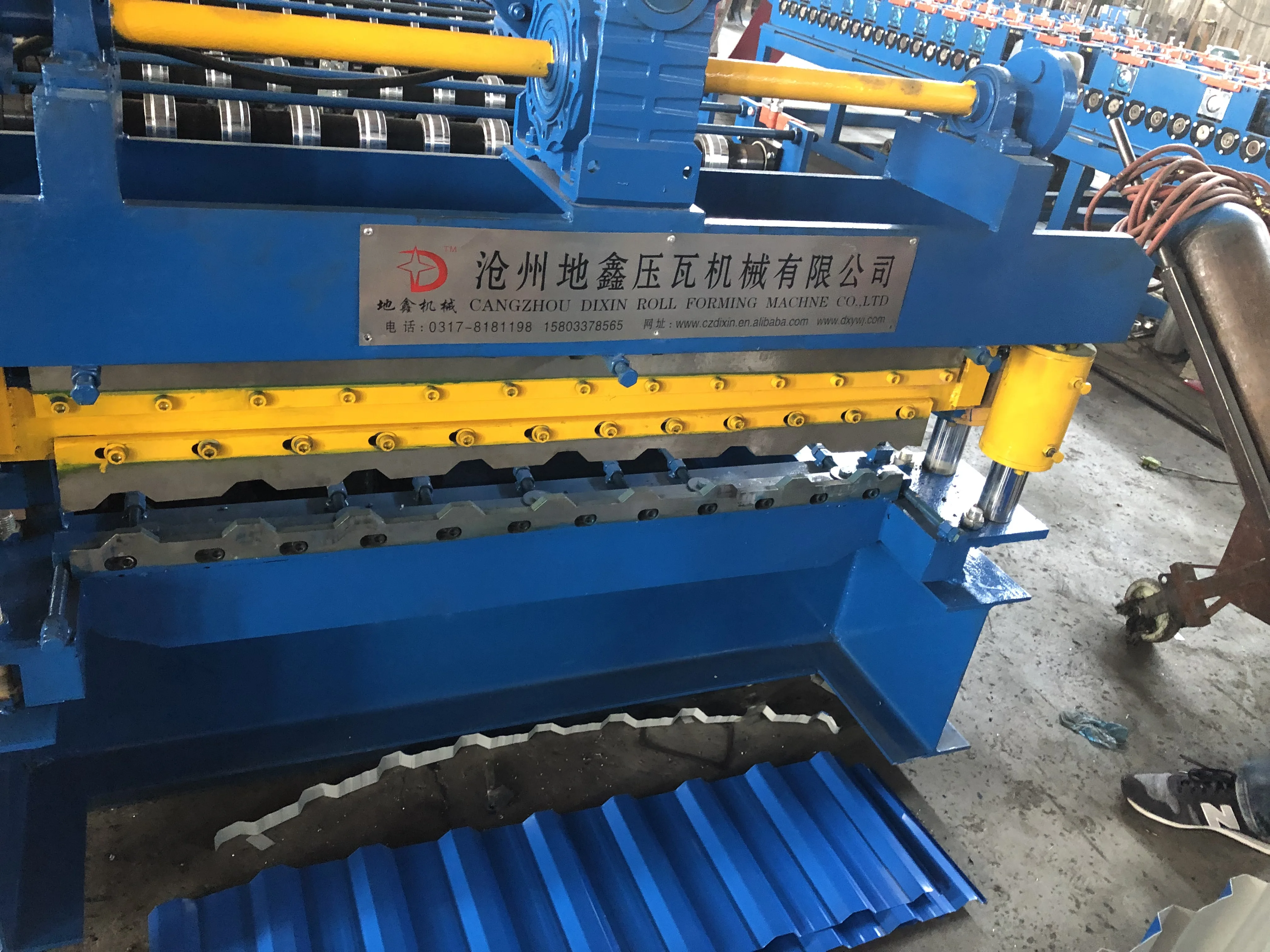

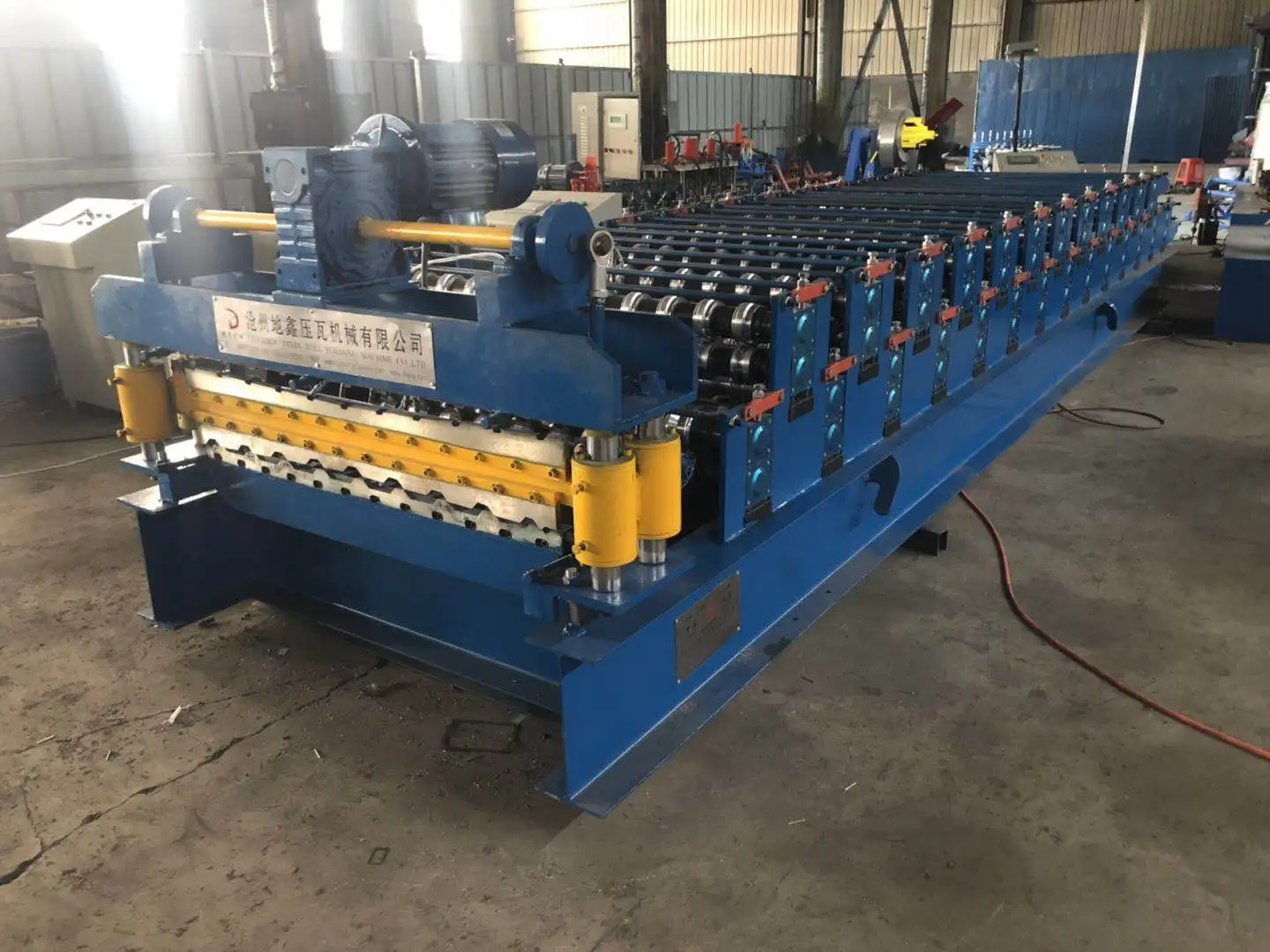

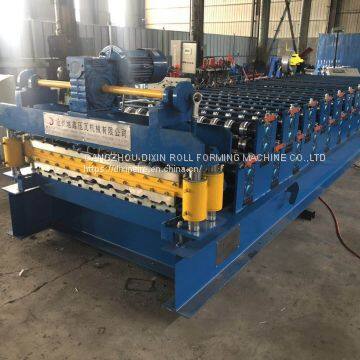

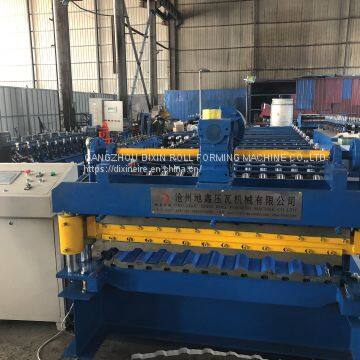

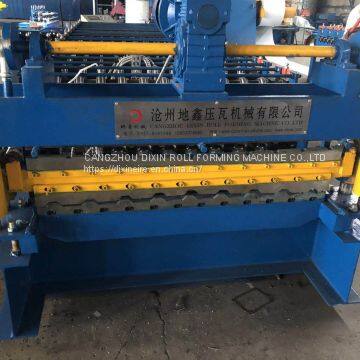

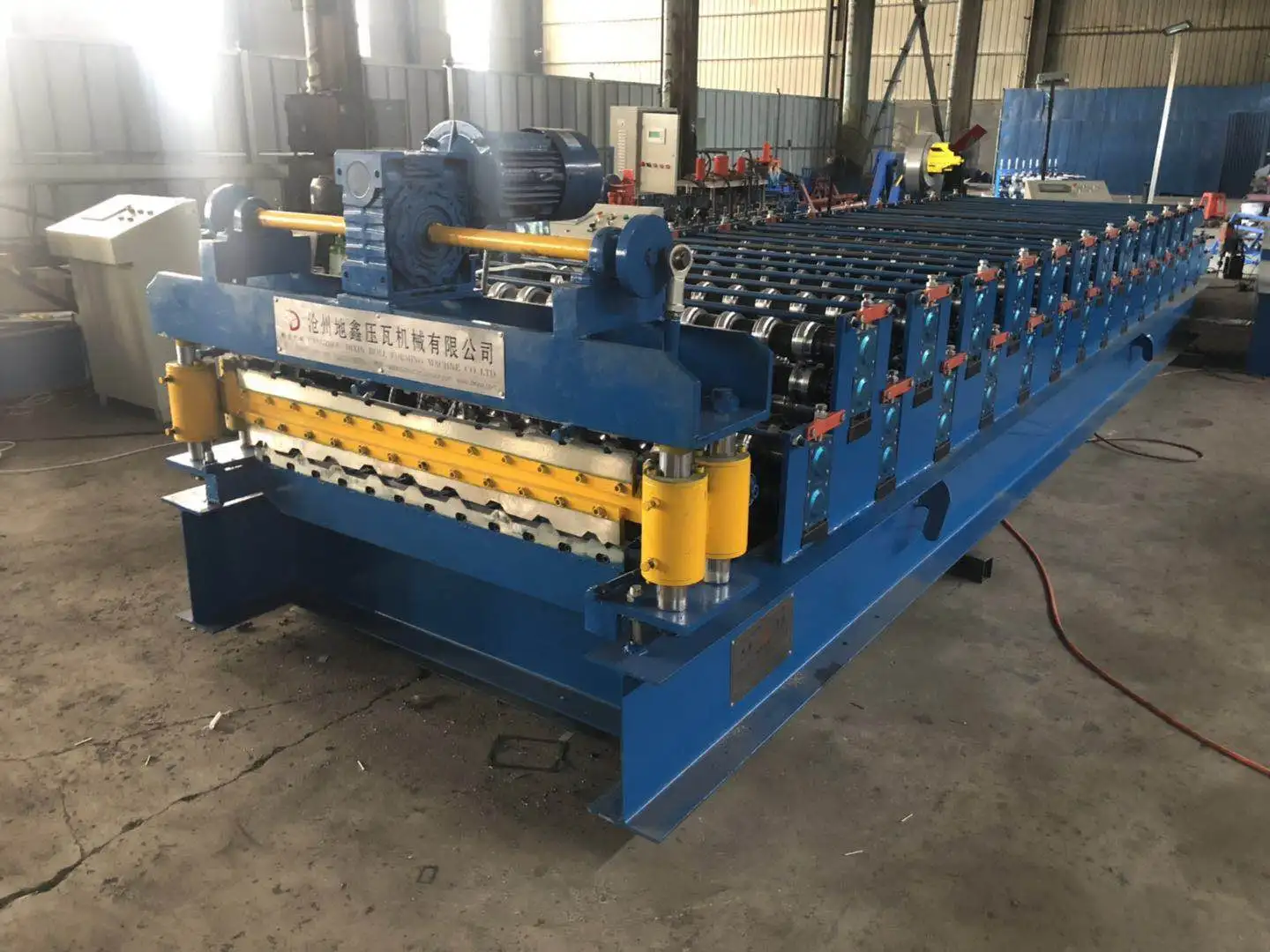

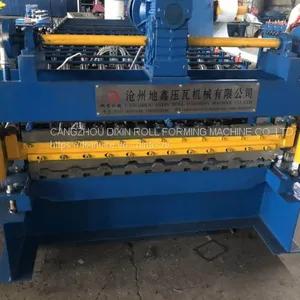

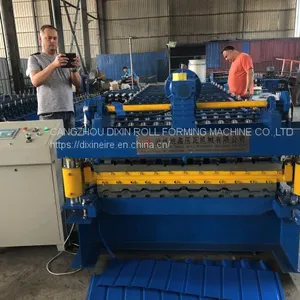

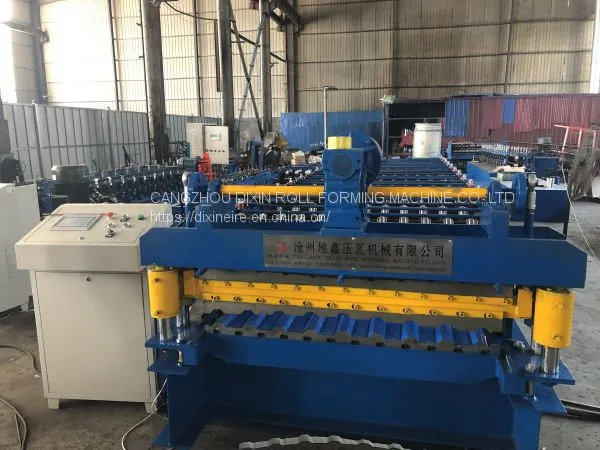

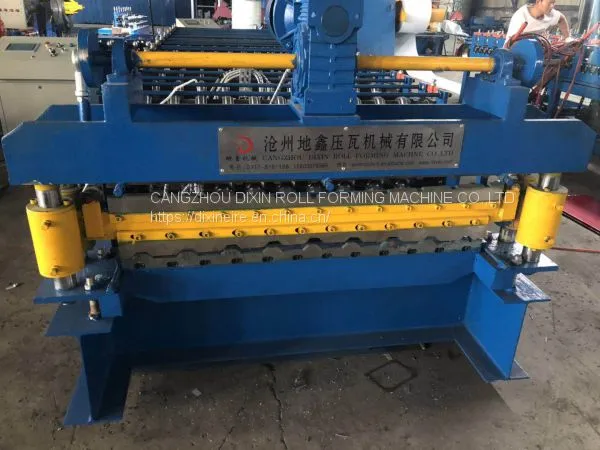

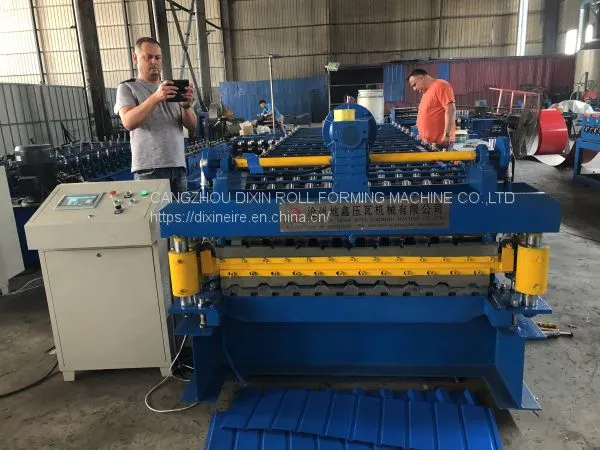

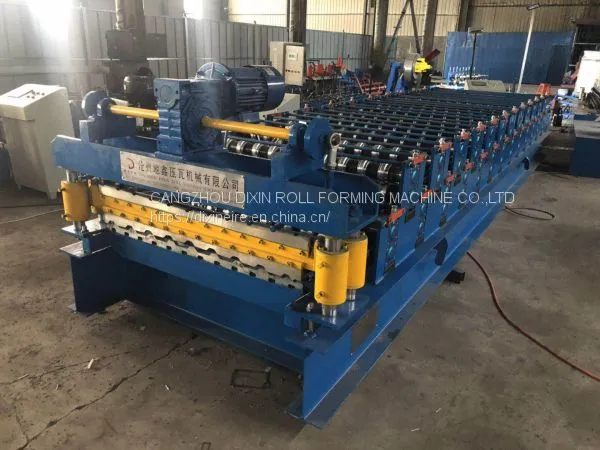

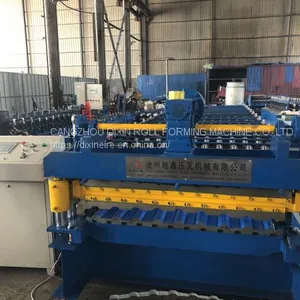

Professional Low Price double layer roof roll forming machine Tile pressing forming machine

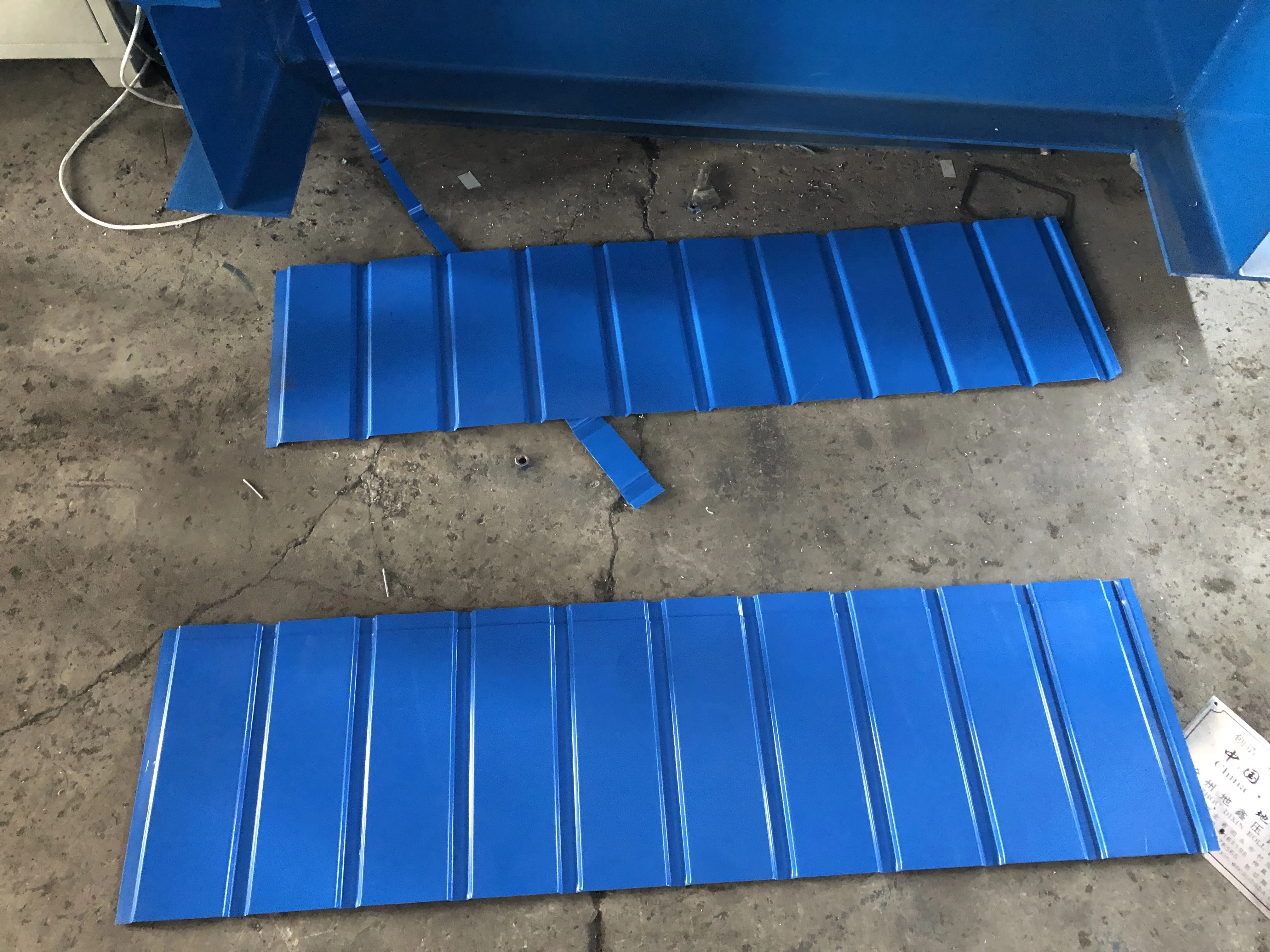

The finished product of Hydraulic Cutting And Pressing Glazed Metal Roof Tile Making Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
| 1 | Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
| 2 | Thickness of coil sheet | 0.3-0.8mm |
| 3 | Coil width | 1250mm |
| 4 | Effective width | 1000mm |
| 5 | Material of main frame | 400H steel structure, strong and durable |
| 6 | Diameter of Soild shaft | 70mm, high grade 45# steel |
| 7 | Roller |
High grade 45# steel, quenched and tempered treatment, hard chrome plated 0.05-0.07mm |
| 8 | Thickness of middle plate | 18mm, 45# steel plate |
| 9 | Forming station | 23 rows |
| 10 | Drive type | By chain(1.0 inch), link bearing model 6210 |
| 11 | Power of main motor | 5.5 kw, Lichao, Shanghai, with reducer |
| 12 | Sidewall connection bar | 25mm, zinc plated |
| 13 | Forming speed | About 12-18m/min |
| 14 | Hydraulic pump station | 5.5 kw, 40# hydraulic oil |
| 15 | PLC | Mitsubishi, Japan |
| 16 | Material of razor blades | Cr 12, quenching 58-62℃ |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm. |
| 18 | Switch | CHNT |
| 19 | Frequency changer | SAJ |

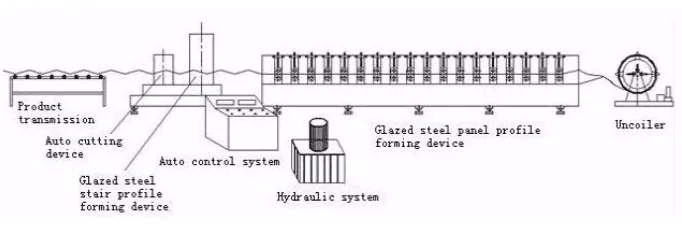

Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table
Our machines are sold to the USA market, and feedback very well.
Our main products cover corrugated tile roll forming machine, trapezoidal panel roll forming machine,glazed roofing roll forming machine, C purlin roll forming machine, roll shutter door roll forming machine and so on.
We also can design and produce machines according to customer’s requirement.
If you interested any products, please contact me for further information.
a. Need one 20 or 40 ft container, according to your final drawing.
b. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is
covered with anti-rust oil.
c. Spare parts in carton box.
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
If you want to know about more details about our machine ,Please Contact Eire Mobile /what'sapp/Wechat :8615227510182
Quality first, service first, your satisfaction is the driving force of our progress.
