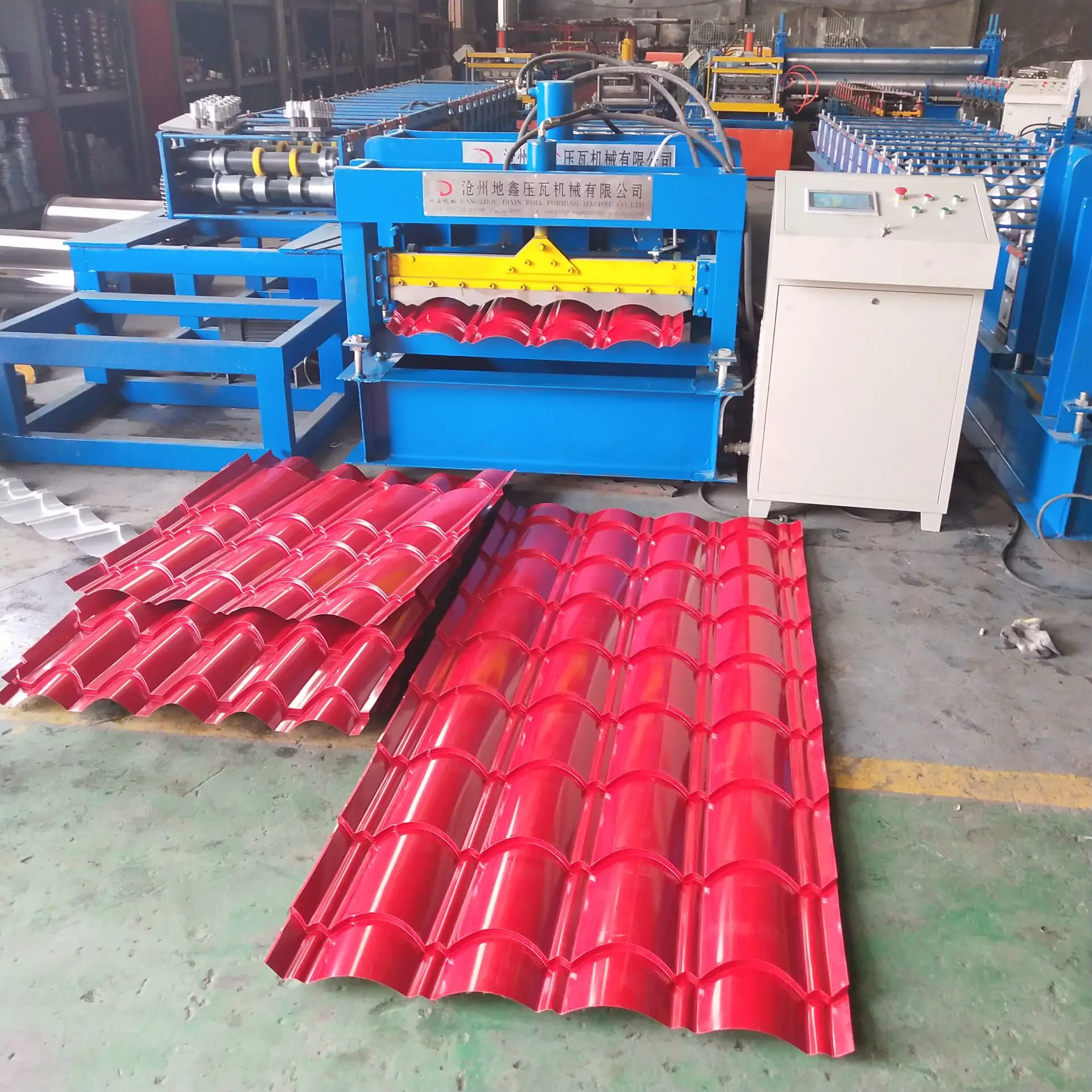

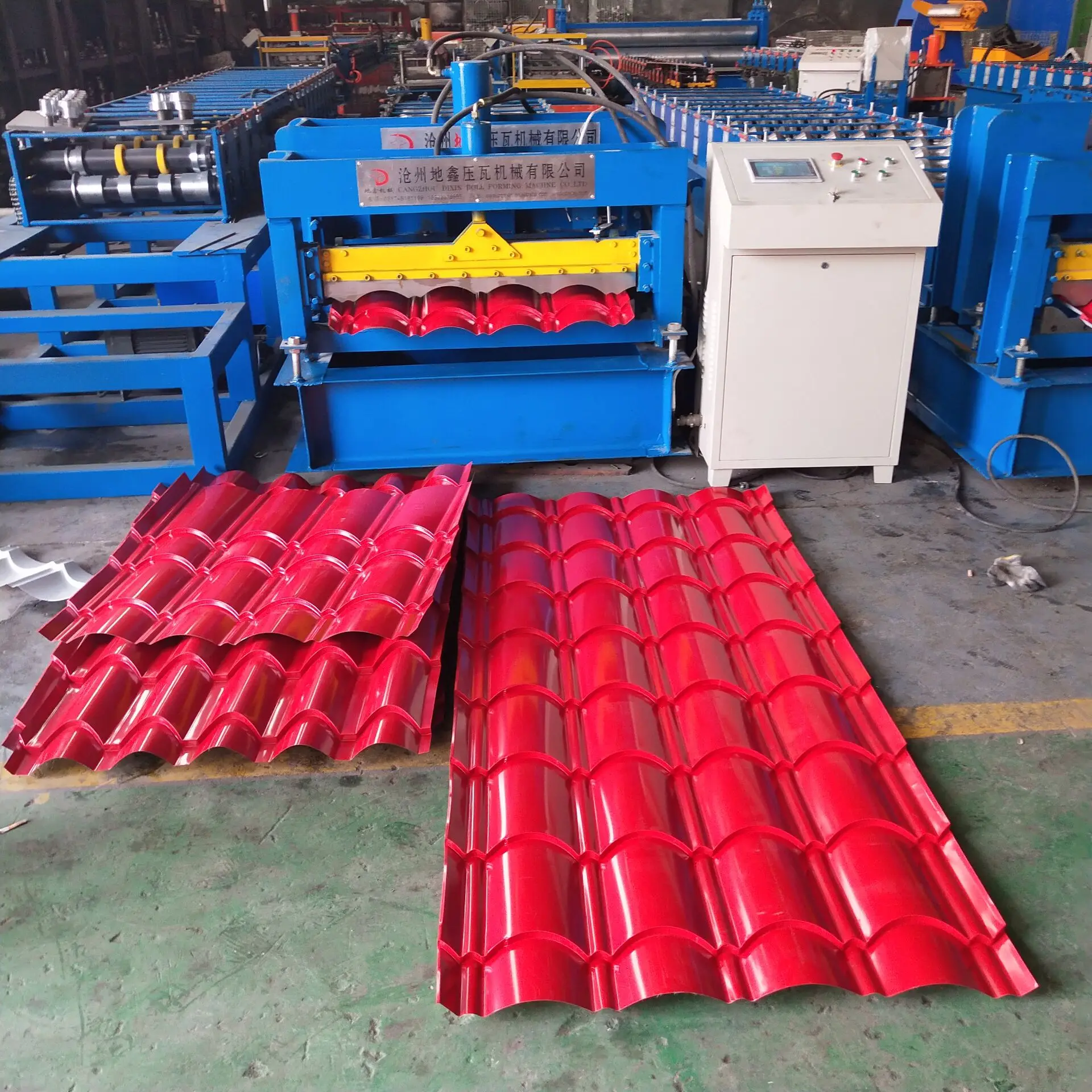

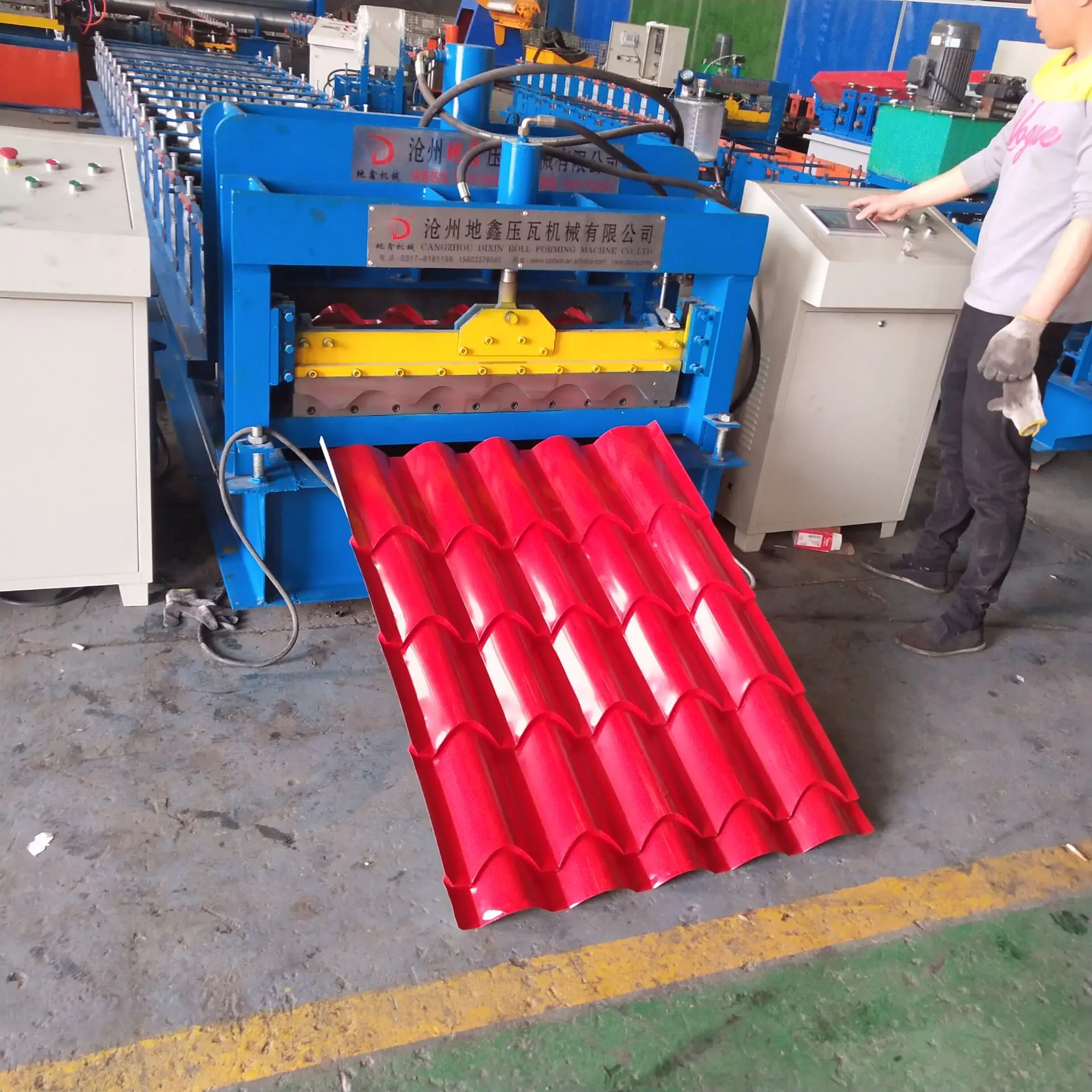

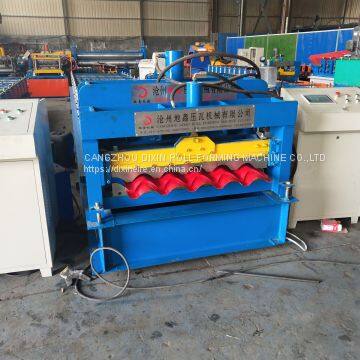

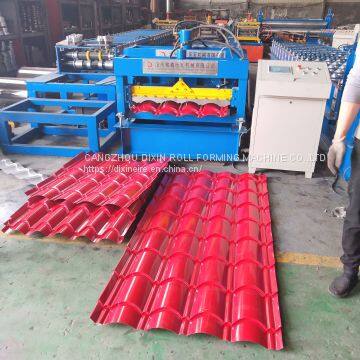

Color Steel glazed tile forming machine Glazed Tile Roll Forming Machine metal sheet roll forming machine
Machine Parameter
Suitable material |
PPGI/GI/PPGL/Al |
Main motor power |
5.5KW |
Hydraulic station power |
5.5KW |

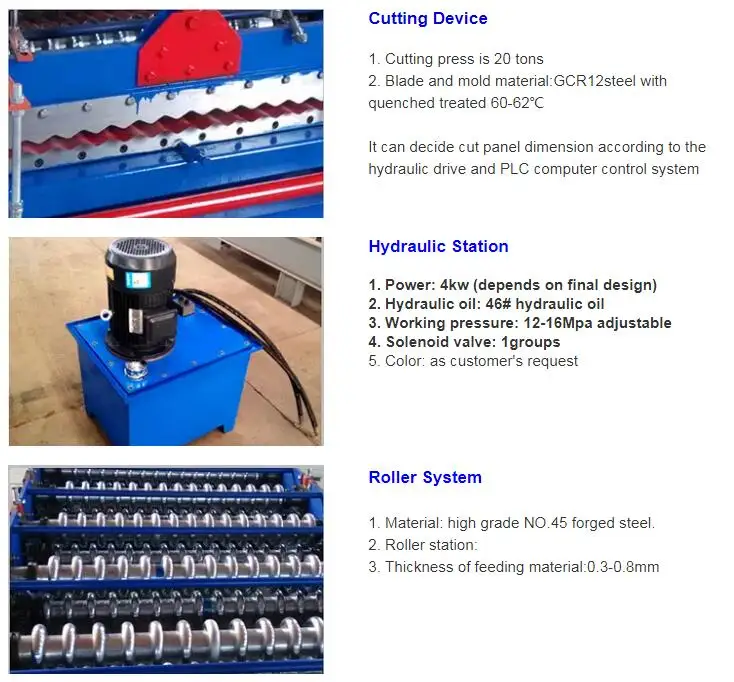

Cutting type |
Hydraulic Cutting with two Guide Pillars and two cylinders |
Pressing type |
Hydraulic Pressing with four Guide Pillars and one cylinder |
Shaft type |
Solid 70mm with 45# steel and key-way processing |
Roller processing |
High grade 45# steel with forging treatment, CNC lathe, then polished and chromed plated |
PLC |
Delta/Mitsubishi |
Computer screen |
Delta/Touch-win |
Board thickness |
16mm |
Machine frame |
400 H-beam |
Chain size |
1 Inch |

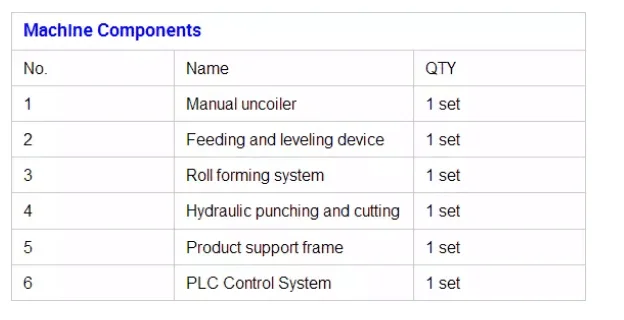

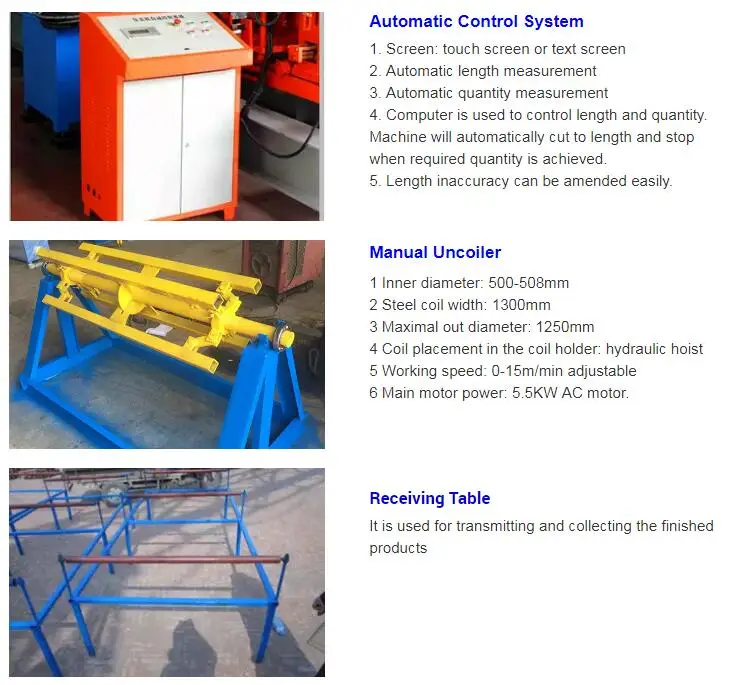

Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table
All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
It is very easy to install the equipment and suitable for producing in the factory.

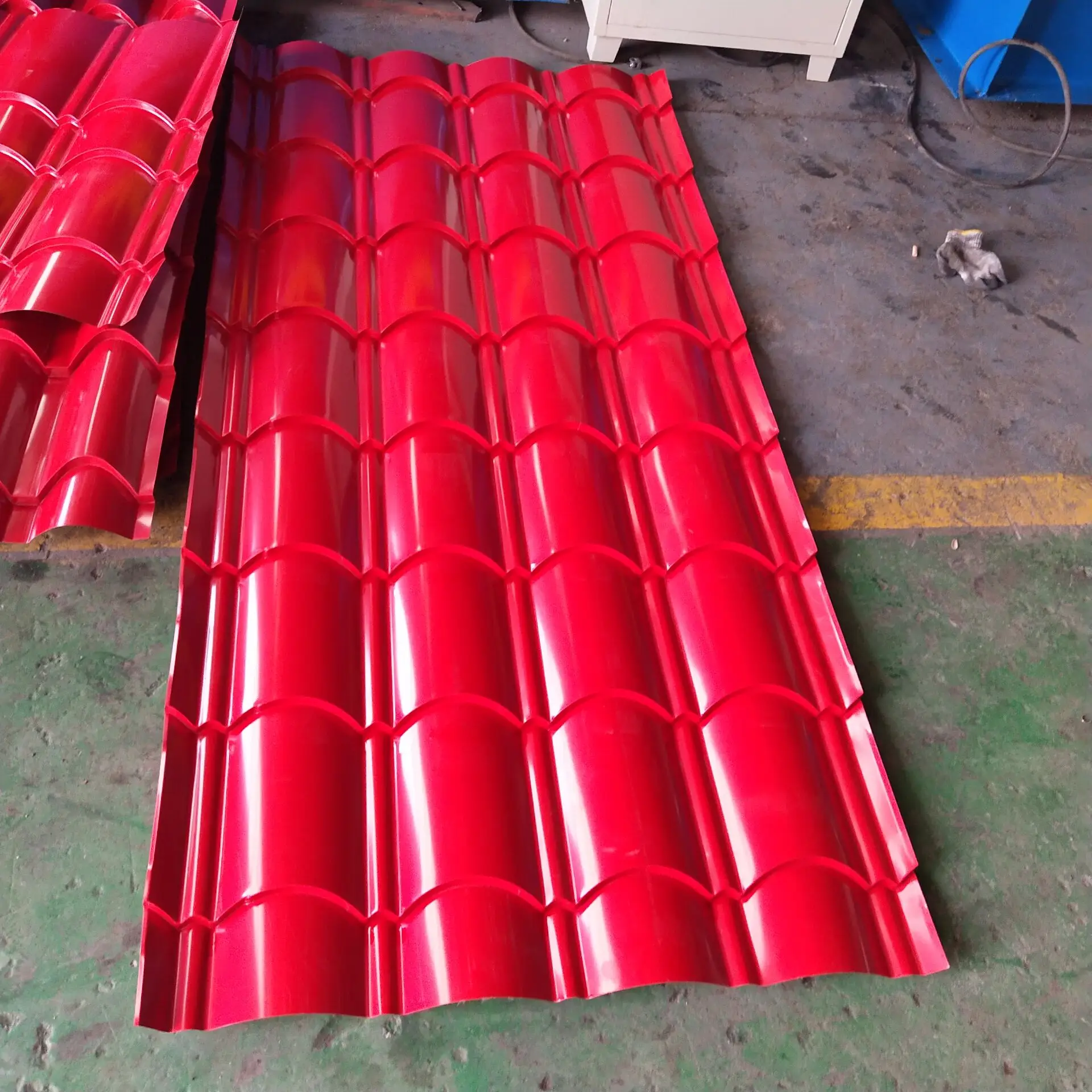

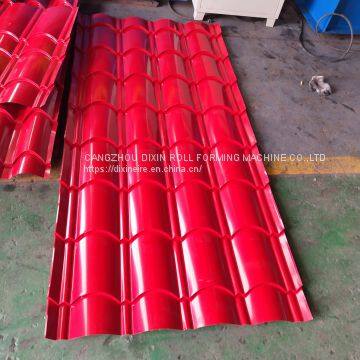

The Panels made by our Roll Forming Machine have beautiful appearance and bright color.

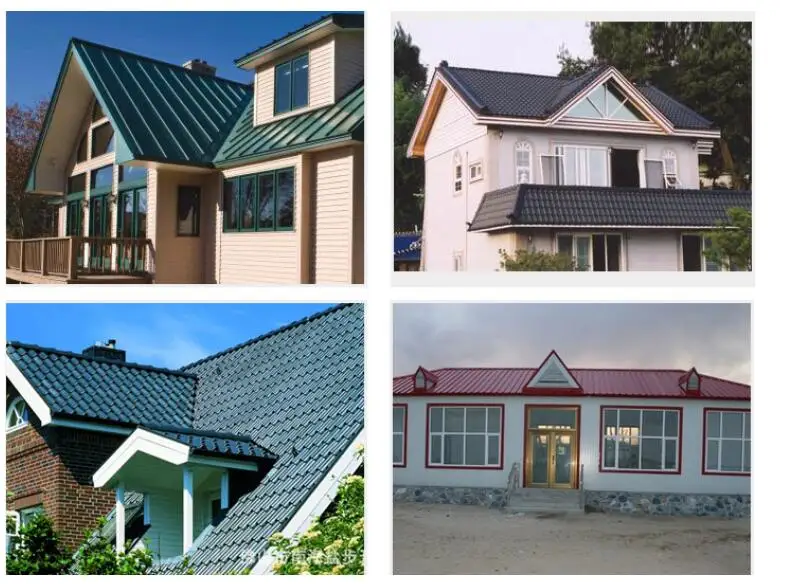

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
Guarantee period: one year free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets.
If you have any questions for roll forming machine ,send us your Inquiry Details in the Below, Click "Send" Now!We will be 24 hours services for you .
