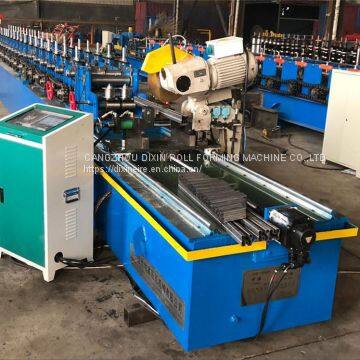

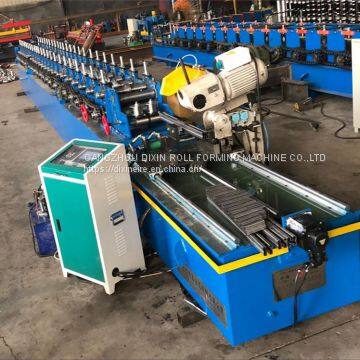

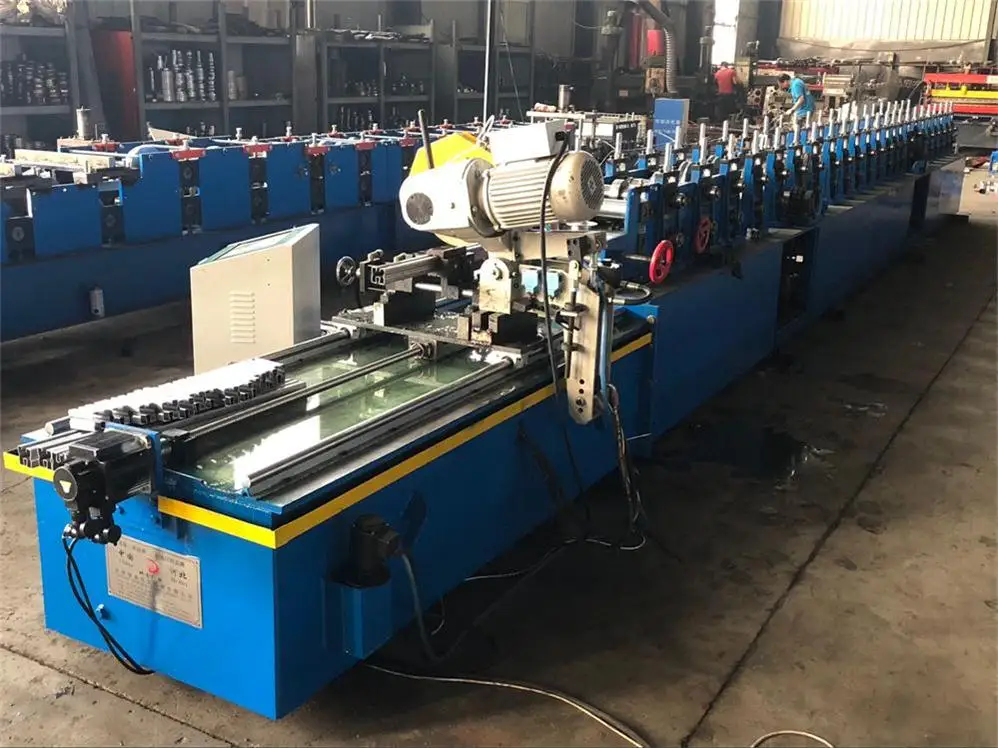

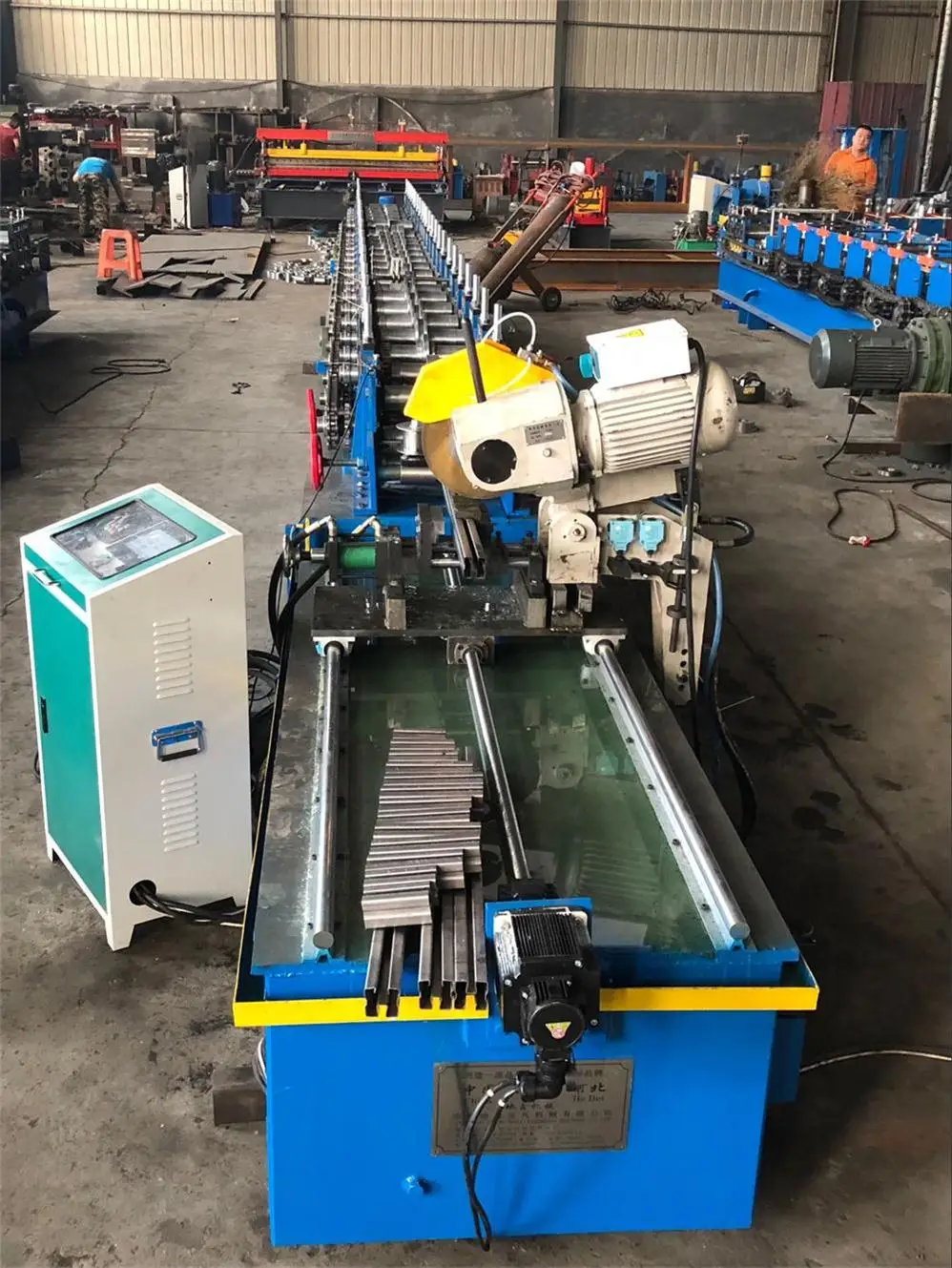

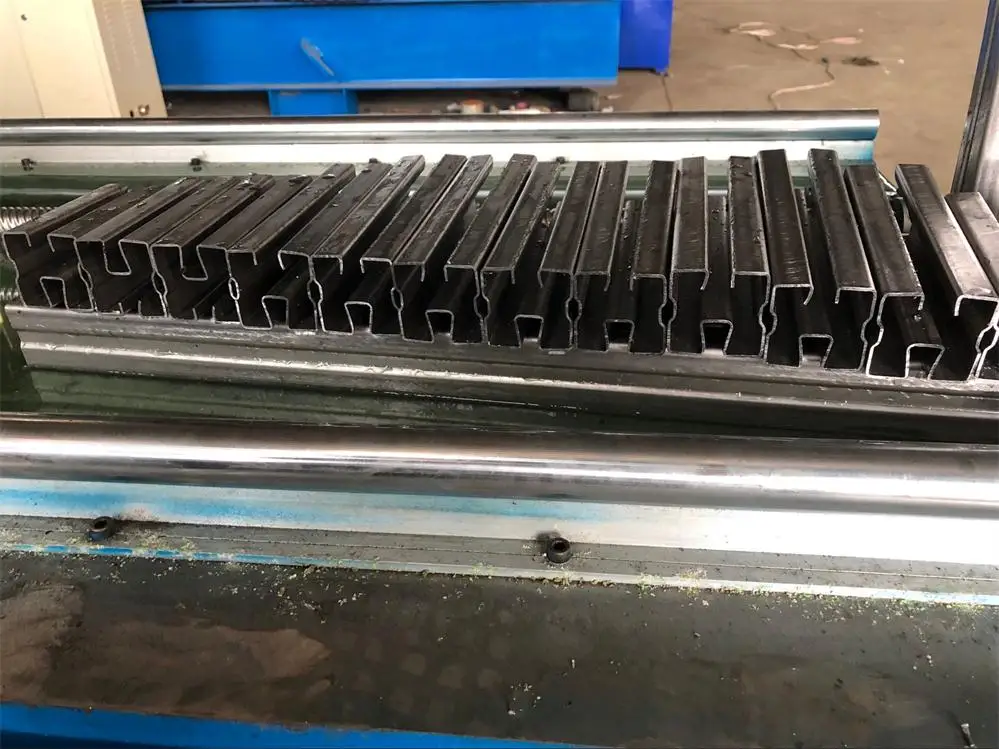

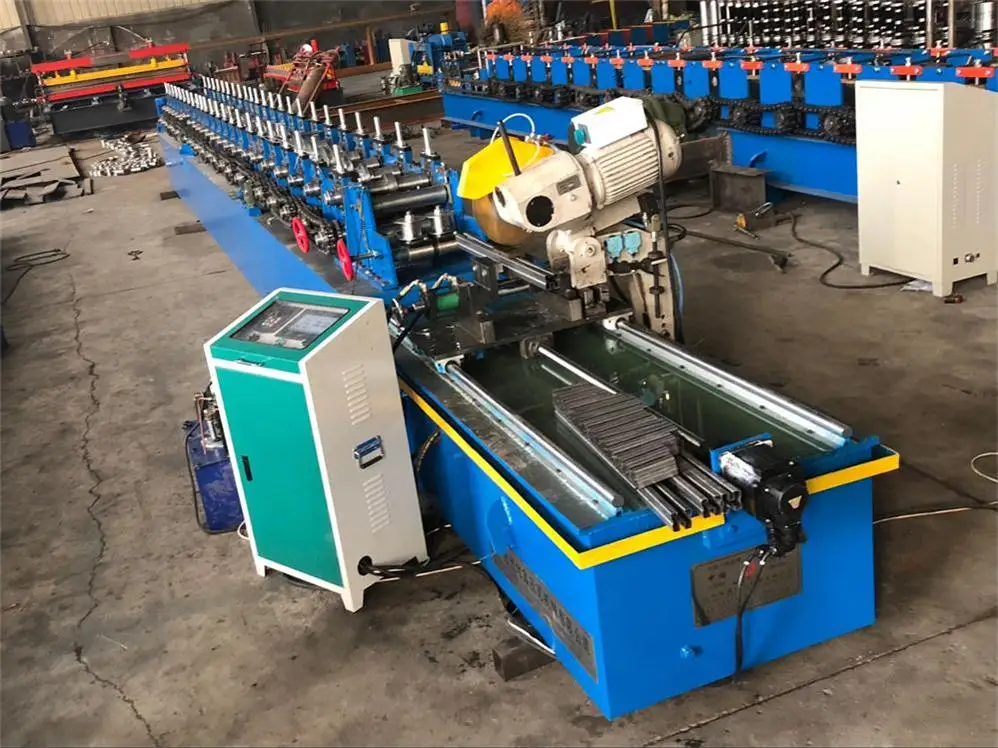

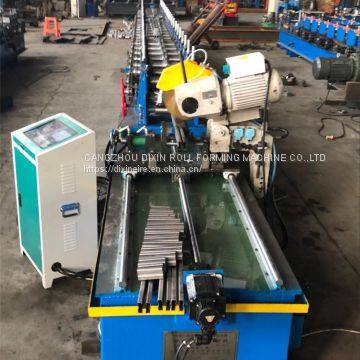

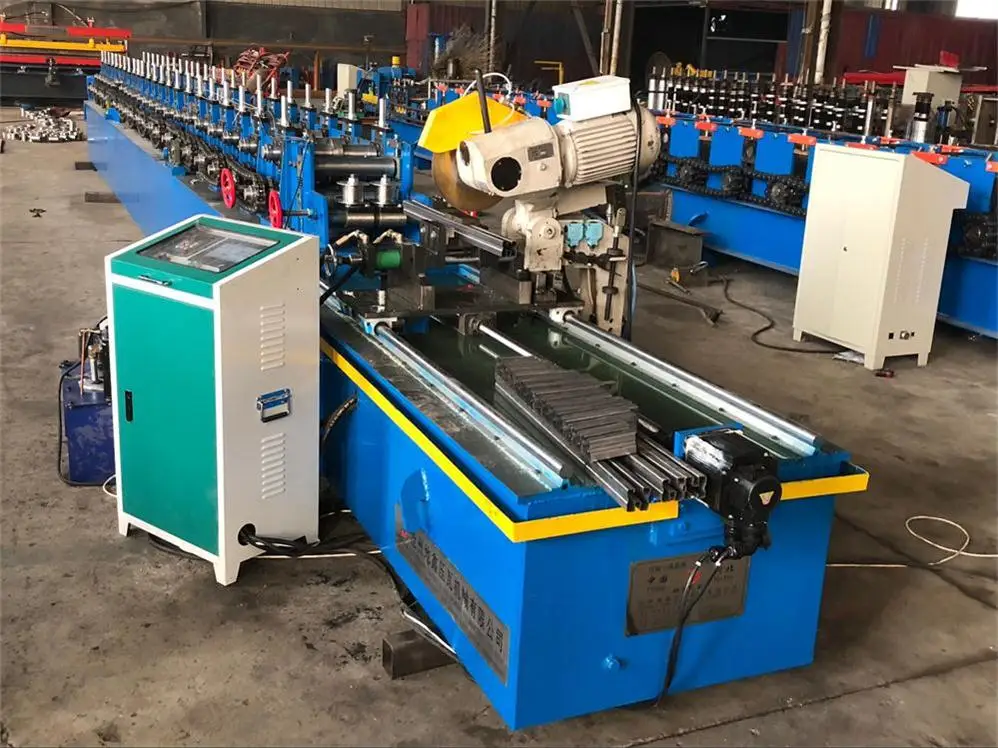

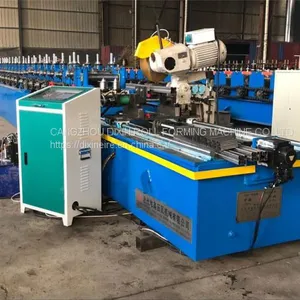

New metal roof panel light steel keel cd ud stud track profile roll forming machine

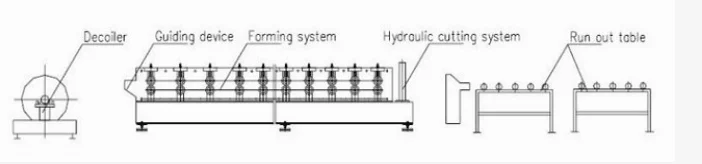

Work flow
Machine Parameter
Light steel keel forming machine with steel as a raw material, by continuous cold rolling molding to produce complex profiles section, type multiple, versatile. We can according to customer design, manufacture different specifications of cold-formed, paint unit equipment.
Light steel keel molding machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material. Used in hotels, terminals, bus terminal, railway stations, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.
Manual Un-coiler |
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
|
Leveling Device |
◊ Ensure the material level and straight ◊ The width can be adjusted |
Auto Main Forming System |
◊ Max Feeding width:1220 mm ◊ Product width: 1000 & 1020 mm ◊ Thickness of sheet: 0.2-1.0mm ◊ Motor Power: 5.5 kw forming system ◊ Roller material: C45 steel ◊ Diameter of shaft: Upper level 95 mm ◊ Base Frame: 360 H steel welded.. |
Hydraulic Cutting Device |
◊ Cutting way: pause to cut. ◊ Oil pump station 1set. ◊ Hydraulic power: 4 kw hydraulic system. ◊ Blade Material: CR12 with heat treatment HRC60-62. |
Electrical System |
◊ Control system: HMI & PLC control panel. ◊ Power: 440V 50Hz (as per local requirement) |
Run-out Table |
◊ Frame: 8# steel groove welded ◊ Roller type. ◊ Quantity: 1 pc |

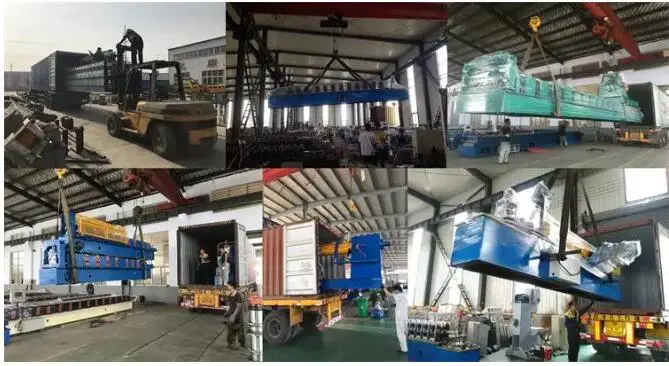

> Plastic Packing / Common Packing. Water-proof, Rust Prevention and Dust Prevention.
>By sea or other ways. In general, by sea, the port of loading is XINGANG PORT. It is only need 2 hours from our Company and Factory to Xingang Port, Tianjin City.

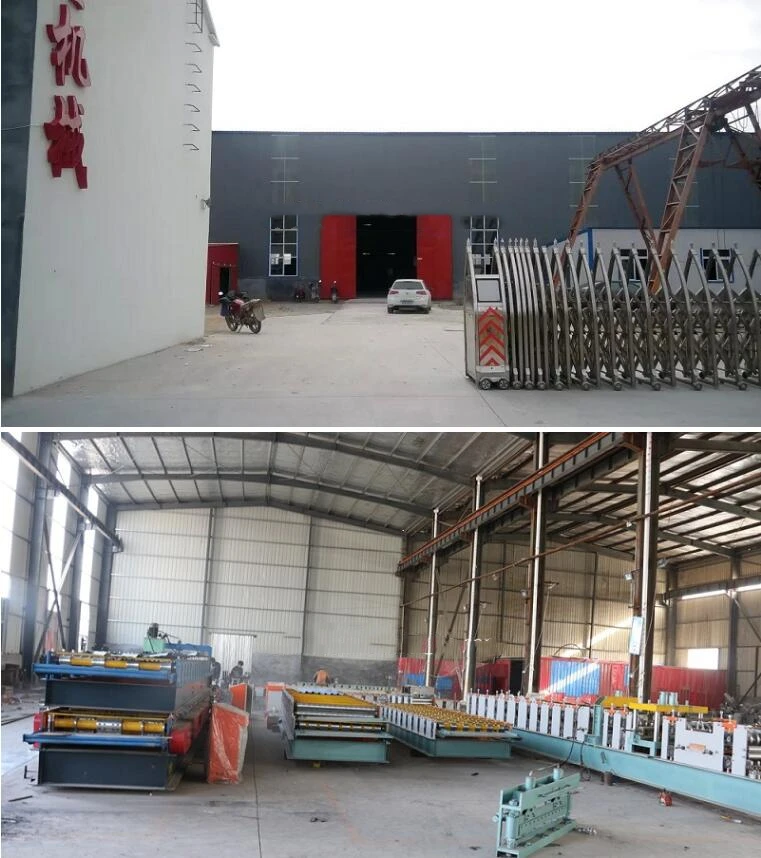

Cangzhou Dixin Roll Forming Machine Co.,Ltd was founded in 1989 and has become a recognized leader in the manufacture of Cold Roll forming machines and equipments
Our excellent reputation for sound and innovative engineering and 20 years of experience have brought us recognition for offering our customers the ultimate in efficiency for roll forming equipments and toolings.
1.We can make and design all kinds of roll forming machine according to customer's requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
Our machines are sold to the USA market, and feedback very well.
Our main products cover corrugated tile roll forming machine, trapezoidal panel roll forming machine,glazed roofing roll forming machine, C purlin roll forming machine, roll shutter door roll forming machine and so on.
We also can design and produce machines according to customer’s requirement.
If you interested any products, please contact me for further information.
If you have any questions for roll forming machine ,send us your Inquiry Details in the Below, Click "Send" Now!We will be 24 hours services for you .
