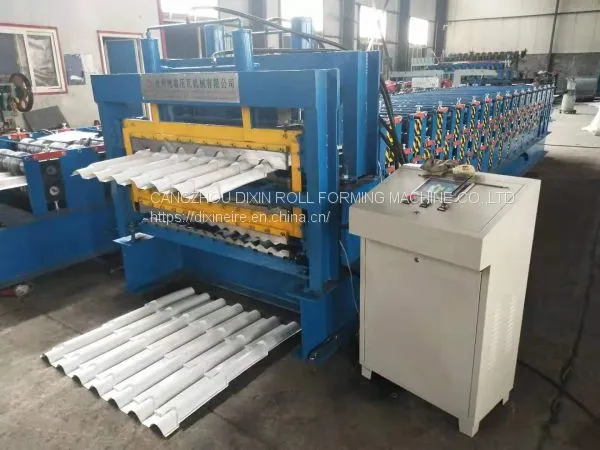

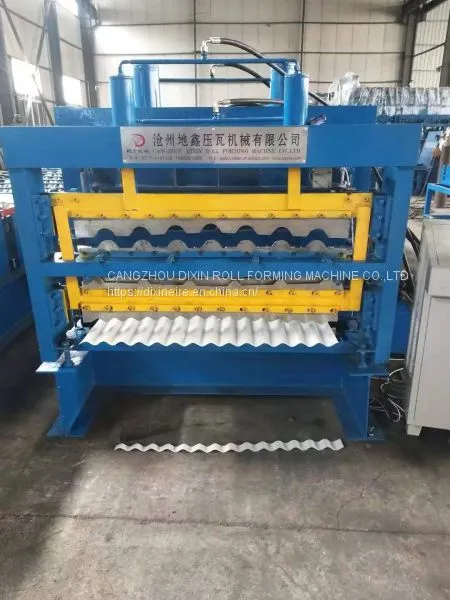

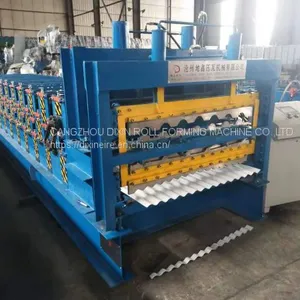

Three Layer Corrugated Roof Tile Roll Forming Machine Aluminum Metal Roofing Sheet Making Machine
Drawing

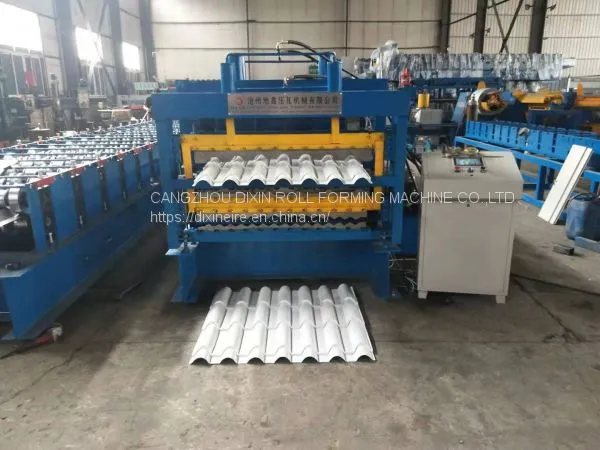

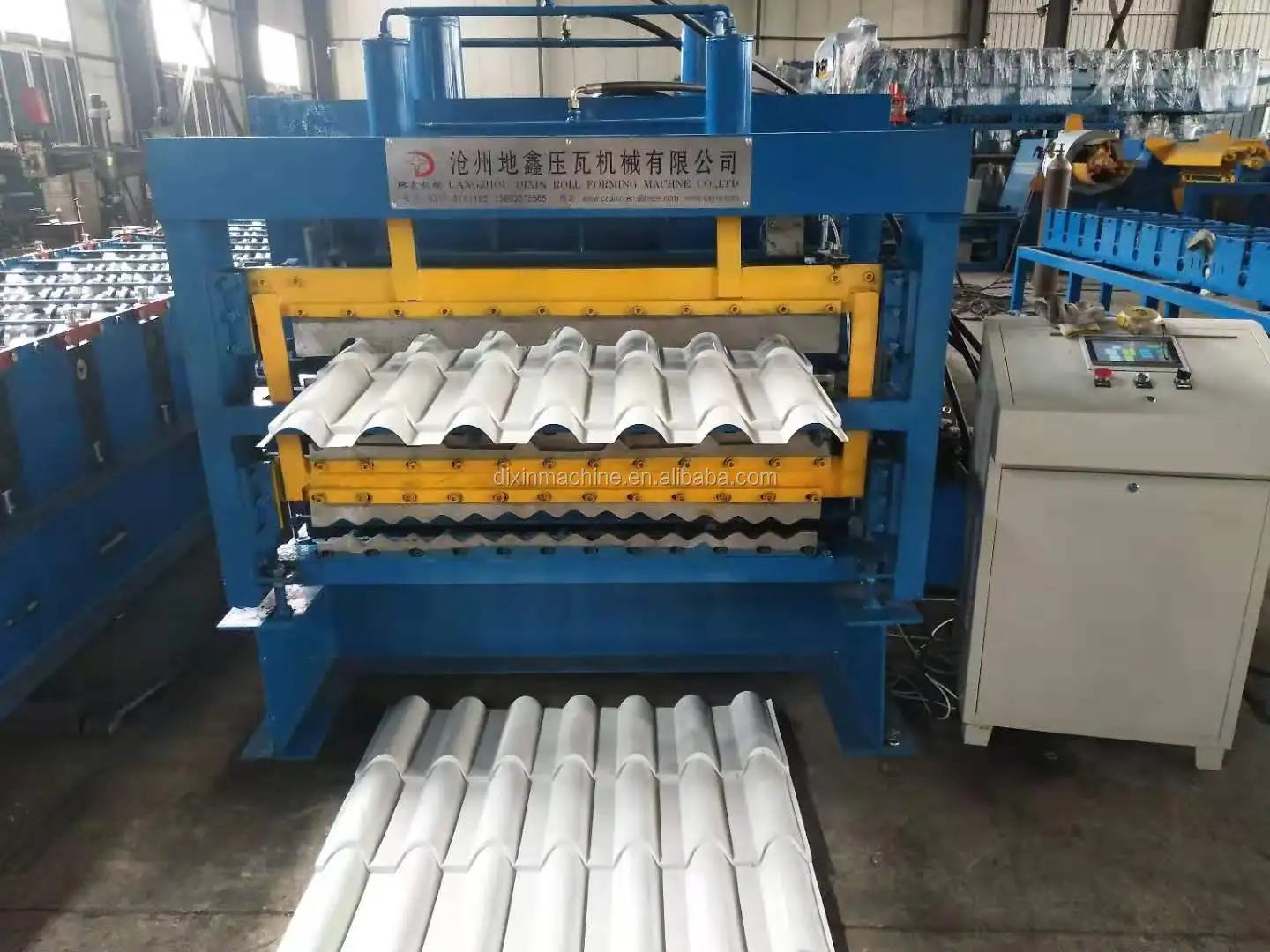

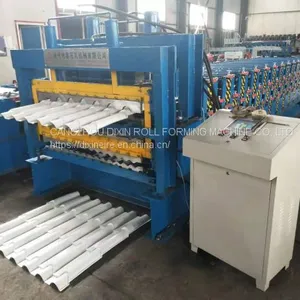

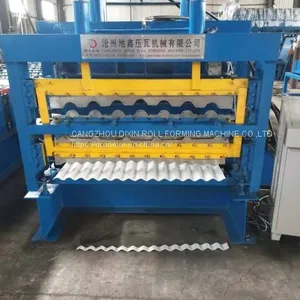

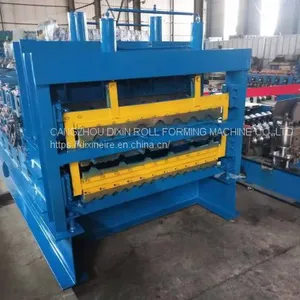

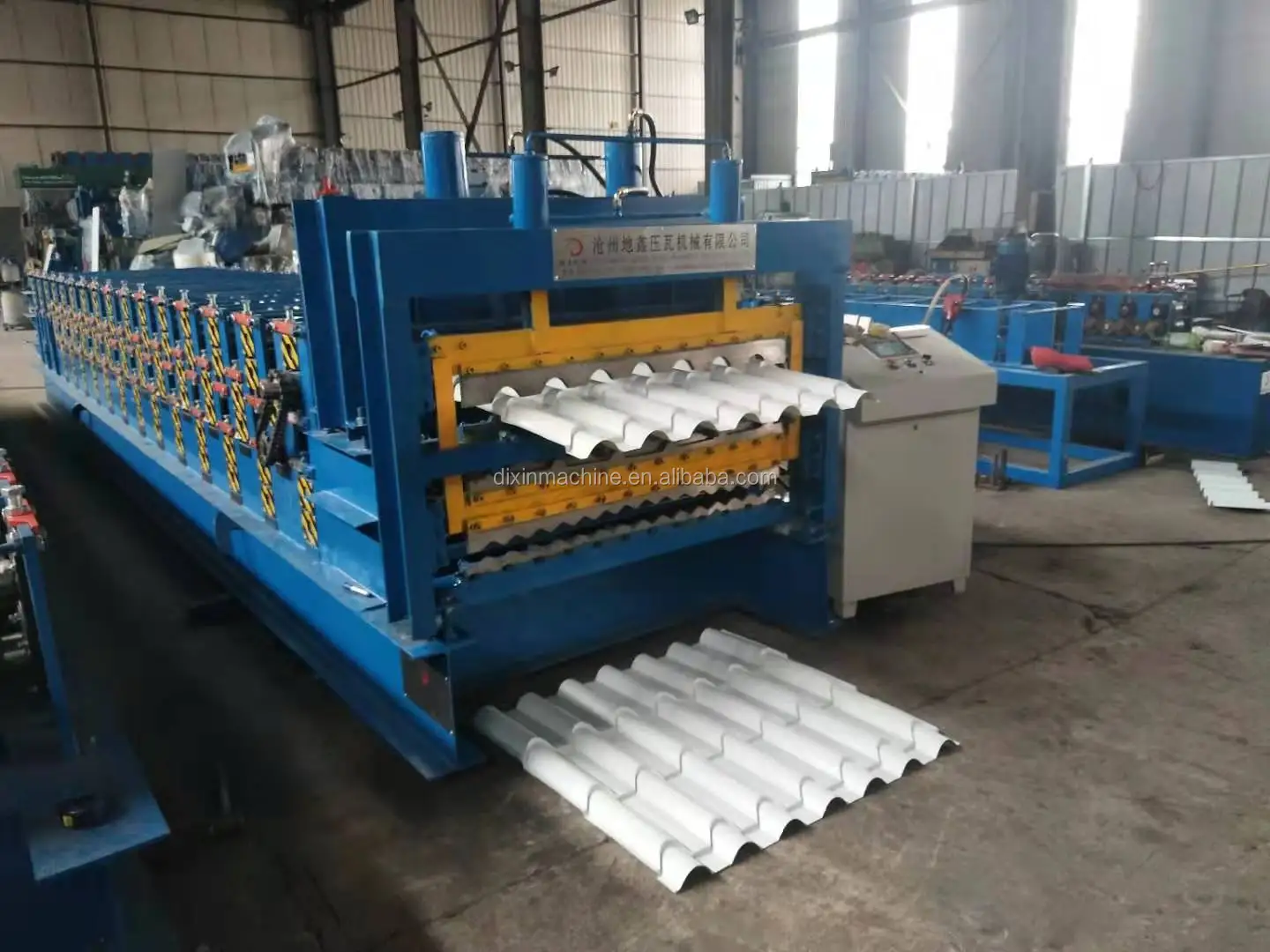

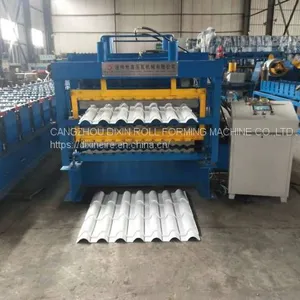

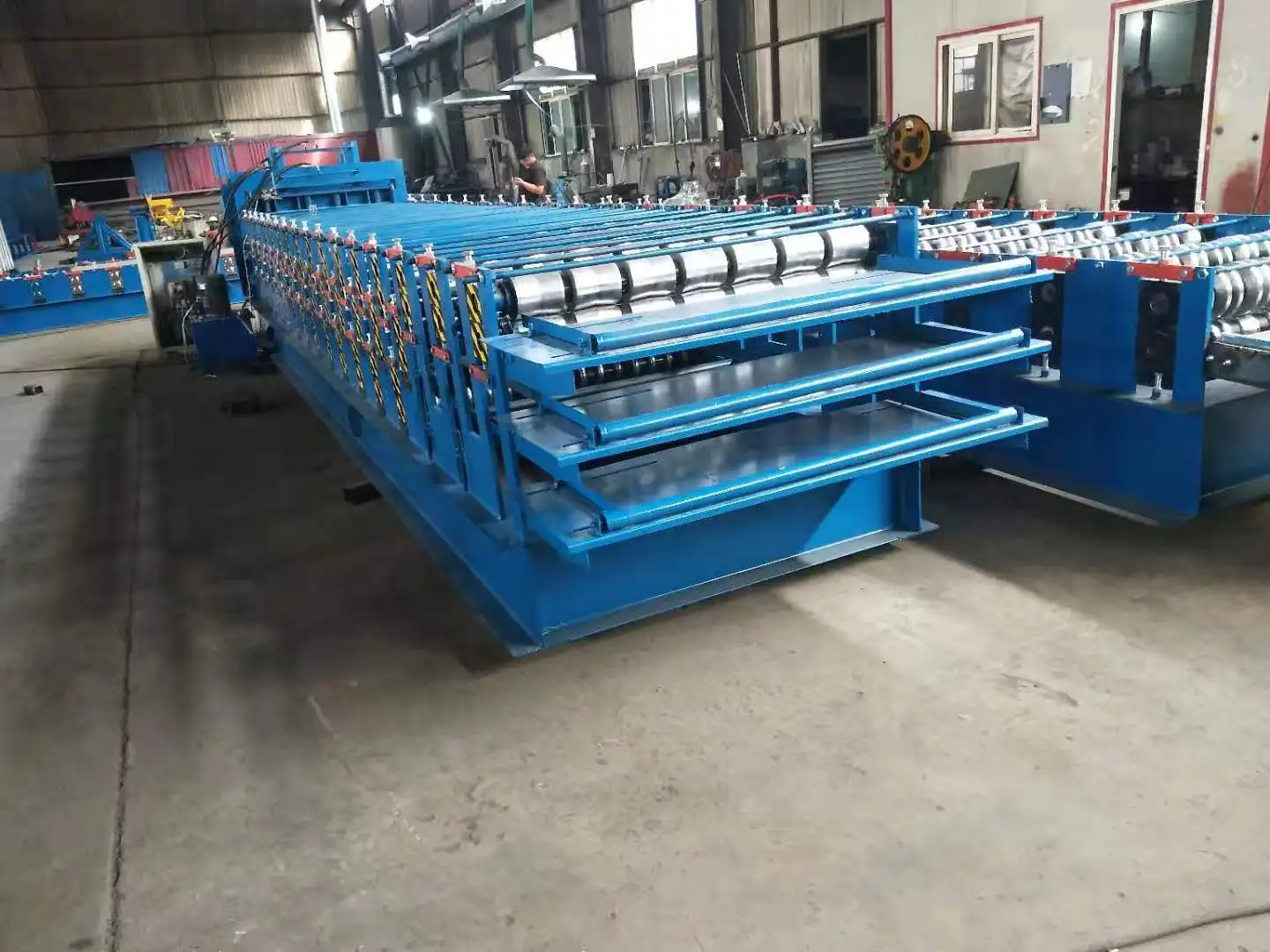

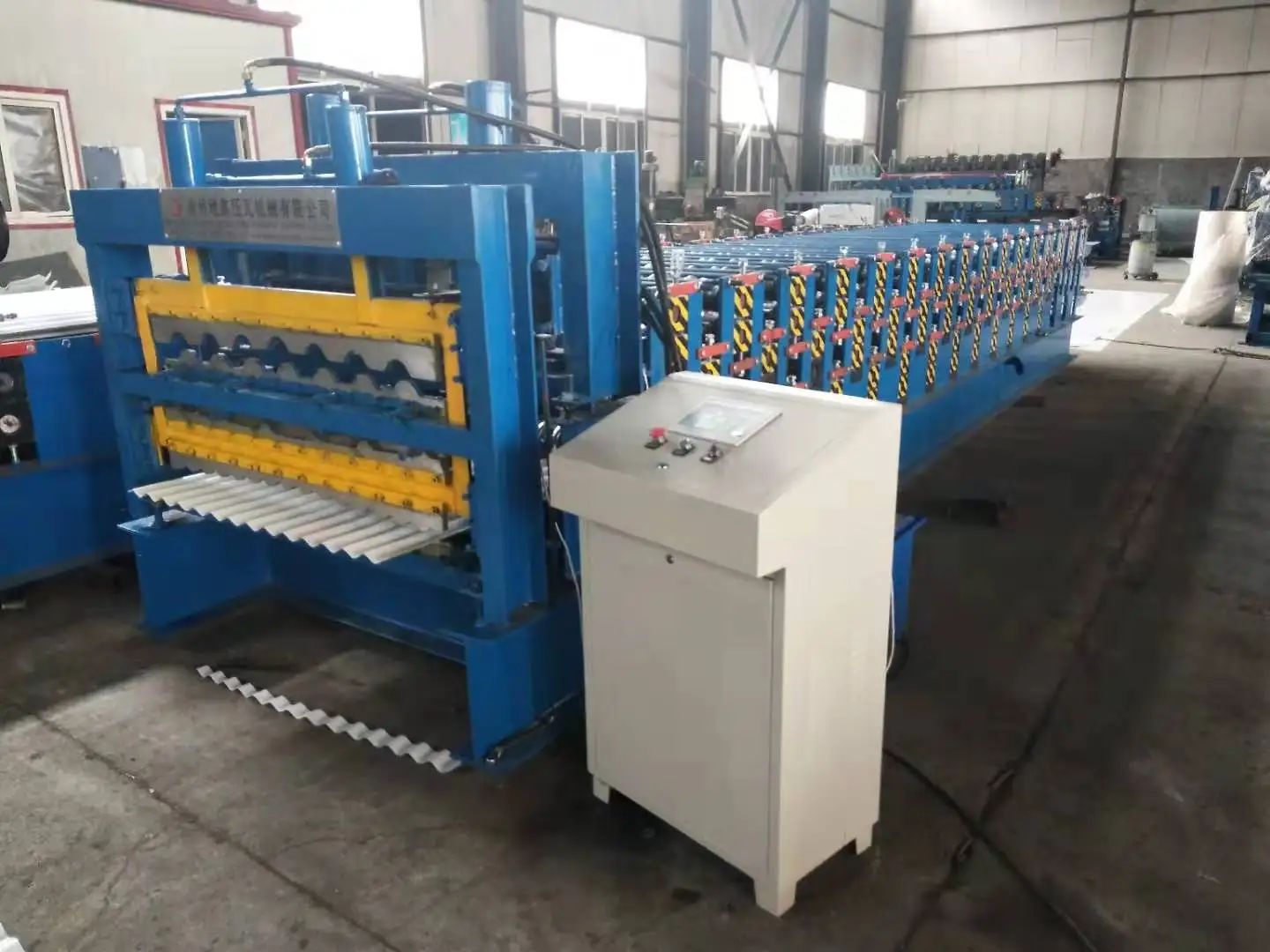

Machine Pictures
Machine Parameter
Raw material | |
Processing material |
Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| Processing thickness (mm) | 0.3-1.0mm or as your customized |
| Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| Material of shafts | 45# steel |
| Diameter of shafts | 70mm or as your customized |
| Forming speed | 8-12 m/min or as your customized |
| Under frame | 350 H-beam |
| Sidewall | 16mm |
| Connect bar | 25mm, zinc plated |
| Forming steps | 10-18 or as your customized |
| Control system | Delta PLC and Inverter |
| Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| Drive mode | Chain and sprocket, chain size 1 inch |
| Main motor | 3-5.5kw |
| Hydraulic pump station | 3-5.5kw |
| Cutting model | Hydraulic profile cutting |
| Dimension of the machine | 7.5m-11m×1.5mm×1.2m |
| Weight of the machine | 3.5 ton -6 ton |
Cangzhou Dixin Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packedwith waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine isused in China,we will install and debug the machine for free;if it is used at abroad,we willsend the professional technician to debug. Buyers should take all the fees for technicianstravelling abroad.
- 3 AlI the parts in the roll forming machine is free to maintain all the life,if in 18 months ourcompany bear the cost for exchanged the broken part like the new parts cost and expresscost,if more than 18 month,we also free to maintain the broken parts but for send the newparts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chi-nese and English) to you with the machine,they can teach you how to operater themachines.
1. Professional in Roll Forming Machine
A. Design. We have our expert engineer to design your machine after the confirmation;
B. Material selection. We focus on every parts of the material, and we have our own workshop for the parts;
C. Assembling and installation. We have many skillful technicians to finish the work;
D. Testing. Before delivery the machine, we will test the machine for hundreds of times, for we can never bear the defects appear.

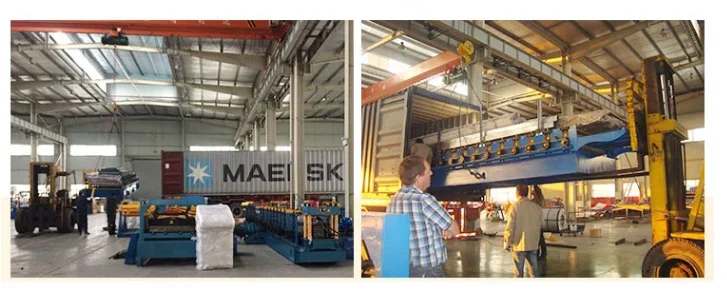

E. Delivery. We will choose the safe and suitable seaworthy packing to load the machines and protect the goods from the strains of long sea voyage.
2. Reliable After-sales services
A. Oversea after-sales is available;
B. Customers come to our factory for training installation and debugging and maintaining are available;
C. Long-distance online video teaching is available.
Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table
Our company has the most professional technical team and more than 10 years of rich manufacturing experience,Customer satisfaction is our development inexhaustible power, always adhere to the quality first, integrity first!
If you have any questions for roll forming machine ,send us your Inquiry Details in the Below, Click "Send" Now!We will be 24 hours services for you .
