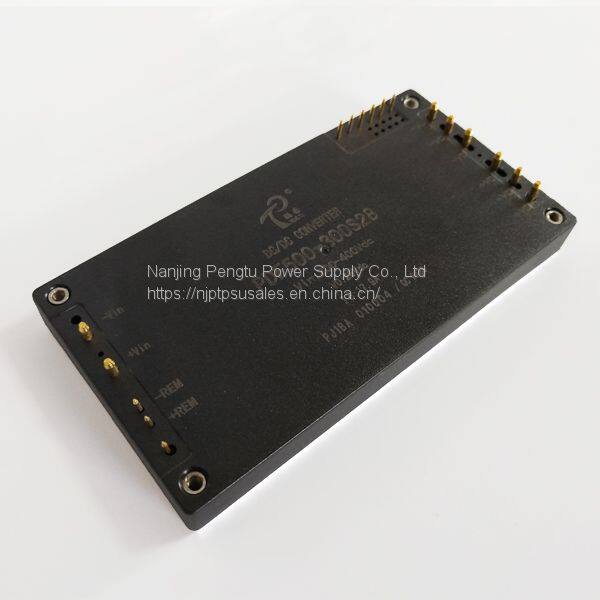

PDF series 300-500W single 12/24/48V power converter

PDF series 300-500W single 12/24/48V power converter.Product details are as follows:

※Features

●Wide range of input voltage

●Design for high reliability,long lifetime

●Under-voltage protection for input

●Full load efficiency up to 88%

●High voltage input,high output power

●Wide range of power,easy toupgrade

Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.

※Input Characteristic

Voltage Range

24VDC (Normal Rated Value): 18～36 VDC

48VDC (Normal Rated Value): 36～72 VDC

110VDC (Normal Rated Value): 66～154 VDC

300VDC (Normal Rated Value):200-400 VDC

※Output Characteristic

●Voltage set-point accuracy ……±2%

●Line Regulation (full load) ……±0.5%

●Load regulation (20%-100%load) ……±0.5%

※General Characteristic

●Switching frequency ………200-350 KHz

●Isolation resistance ………200 MΩ

※Isolation voltage

●Input-output: >1500 VDC

●Input-case: >1050 VDC

●Output-case: >500 VDC

※Environmental Characteristic

●Substrate Working Temperature ………Industry: -40-+100℃

●Storage temperature ……………………Industry: -45-+105℃

※REM Features

Positive Logic:High level or no connect working

※Dimensions:116.80*61.00*12.70mm

※Protection Features

●Input under voltage protection      ●Output short circuit protection

●Input over voltage protection       ●Output over current protection

●Output over voltage protection       ●Over temperature protection

※Model selection

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.

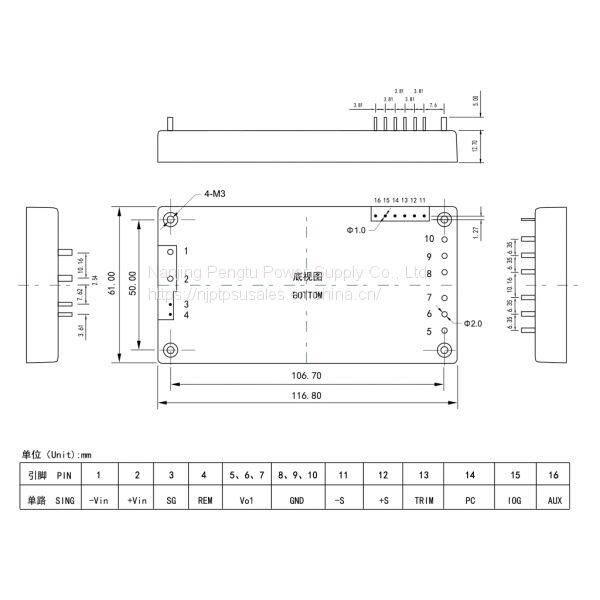

※Mechanical Drawing & Pin definition
