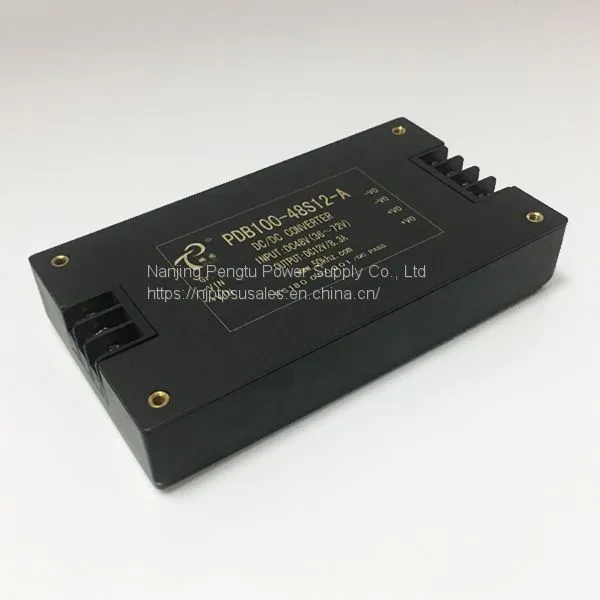

PDB-A series 30-100W single 12/24V power converter.Product details are as follows:
※Features
●Π type input filter
●High power density
●2X,4X voltage input
●Design for high reliability,long lifetime
●Easy installation, dual side pin out
●Attractive outline design
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9～18 VDC
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value):66-154 VDC
18VDC (Normal Rated Value):9～36VDC(Quadruple input)
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (full load) ……±0.5%
●Load regulation (20%-100%load) ……±0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………2～10A for option
●Output Voltage ………………………………5～48V
●Power ……………………………………………30-100w
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃
※Dimensions:116.40*65.00*21.50mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection ●Output over current protection
●Over temperature protection
※Model selection
Input V. (Vdc) |
Input V. range (vdc) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (Typ) |
Models |
|
SING |
18 |
9-36 |
12 |
6.25 |
120 |
83% |
PDB75-18S12-A |
18 |
9-36 |
24 |
3.13 |
200 |
84% |
PDB75-18S24-A |
|
24 |
18-36 |
12 |
8.33 |
120 |
84% |
PDB100-24S12-A |
|
24 |
18-36 |
24 |
4.16 |
200 |
86% |
PDB100-24S24-A |
|
48 |
36-72 |
12 |
8.33 |
120 |
85% |
PDB100-48S12-A |
|
48 |
36-72 |
24 |
4.16 |
200 |
86% |
PDB100-48S24-A |
|
110 |
66-154 |
12 |
8.33 |
120 |
84% |
PDB100-110S12-A |
|
110 |
66-154 |
24 |
4.16 |
200 |
86% |
PDB100-110S24-A |
|
DUAL |
24 |
18-36 |
05&12 |
3&4 |
80&120 |
82% |
PDB75-24D05&12-A |
48 |
36-72 |
12&24 |
1.5&2 |
120&200 |
83% |
PDB75-48D12&24-A |
|
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.

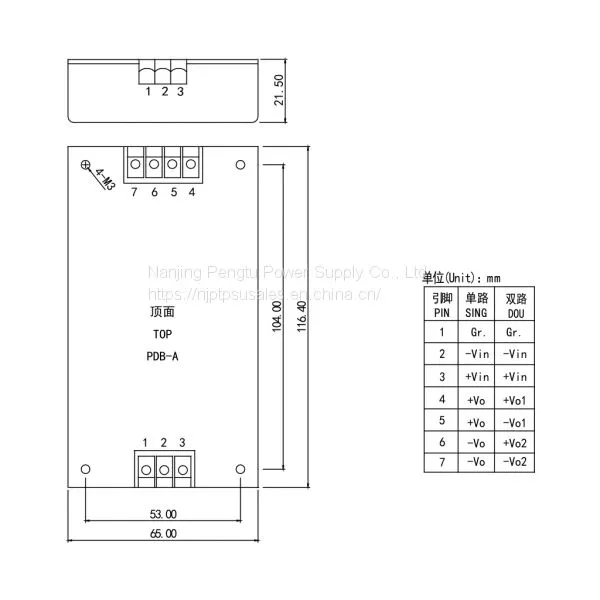

※Mechanical Drawing & Pin definition
