PDH Series 100-200W Half brick dc dc converter.Product details are as follows:
※Features
●Industry standard half brick
●Wide input voltage
●High voltage isolation
●Control and Trim functions
●High Efficiency
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value): 66～154 VDC
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (full load) ……±0.5%
●Load regulation (20%-100%load) ……±0.5%
●Trim Range ……±10%
※General Characteristic
●Switching frequency ………200-350 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -40-+100℃
●Storage temperature ……………………Industry: -45-+105℃
※REM Features
Positive Logic:High level or no connect working
Output voltage remote compensation max:105%Vo

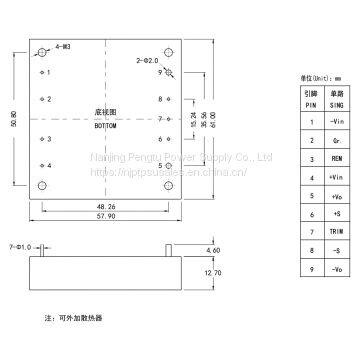

※Dimensions:61.00*57.90*12.70mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection ●Output over current protection
●Output over voltage protection ●Over temperature protection
※Model selection
Input V. (Vdc) |
Input V. range (vdc) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (Typ) |
Models |
|
Single |
24 |
18-36 |
3.3 |
30.3 |
80 |
86% |
PDH100-24S3.3 |
24 |
18-36 |
05 |
20 |
100 |
87% |
PDH100-24S05 |
|
24 |
18-36 |
12 |
8.33 |
120 |
88% |
PDH100-24S12 |
|
48 |
36-72 |
05 |
20 |
100 |
87% |
PDH100-48S05 |
|
48 |
36-72 |
12 |
12.5 |
120 |
88% |
PDH150-48S12 |
|
110 |
66-154 |
12 |
12.5 |
120 |
88% |
PDH150-110S12 |
|
110 |
66-154 |
24 |
6.25 |
200 |
88% |
PDH150-110S24 |
|
110 |
66-154 |
48 |
4.16 |
300 |
89% |
PDH200-110S48 |
|
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
