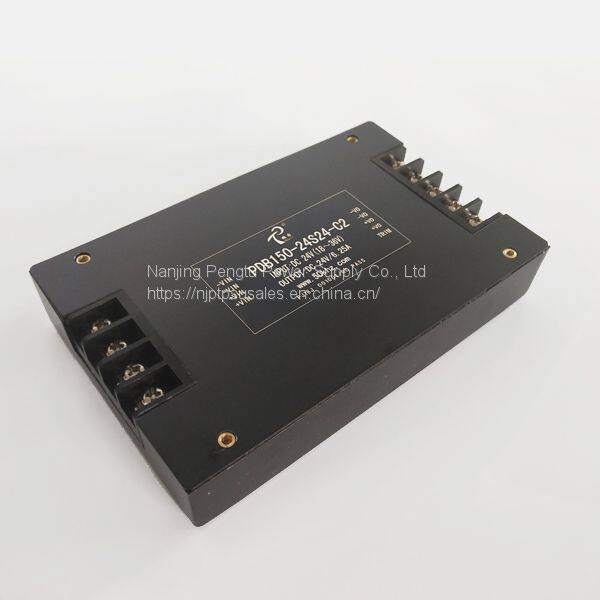

PDB-C2/C4 series 40-200W single/dual 12/24/48V power converter.Product details are as follows:
※Features
●Π type input filter
●High power density
●Full load efficiency up to 85%
●Design for high reliability,long lifetime
●Natural cooling,heat sink attachable
●Fast dynamic response
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9～18 VDC
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value):66-154 VDC
18VDC (Normal Rated Value):9～36VDC(Quadruple input)
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Output voltage range ………………±10%
●Line Regulation (main) ……±0.5%
●Load regulation (main) ……±0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………2～20A for option
●Output Voltage ………………………………5～48V
●Power ……………………………………………40-200w
※General Characteristic
●Switching frequency ………160-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃
※Dimensions:139.00*88.00*27.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection ●Output over current protection
●Over temperature protection
※Model selection
Input V. (Vdc) |
Input V. range (vdc) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (Typ) |
Models |
|
SING |
18 |
9-36 |
12 |
8.33 |
120 |
83% |
PDB100-18S12-C2 |
18 |
9-36 |
24 |
4.16 |
200 |
84% |
PDB100-18S24-C2 |
|
24 |
18-36 |
12 |
12.5 |
120 |
85% |
PDB150-24S12-C2 |
|
24 |
18-36 |
24 |
6.25 |
200 |
86% |
PDB150-24S24-C2 |
|
48 |
36-72 |
12 |
12.5 |
120 |
84% |
PDB150-48S12-C2 |
|
48 |
36-72 |
24 |
6.25 |
120 |
86% |
PDB200-48S24-C2 |
|
110 |
66-154 |
12 |
12.5 |
120 |
84% |
PDB150-110S12- C2 |
|
110 |
66-154 |
24 |
8.33 |
200 |
86% |
PDB200-110S24-C2 |
|
110 |
66-154 |
48 |
4.16 |
300 |
86% |
PDB200-110S48-C2 |
|
550 |
200-800 |
24 |
3.13 |
200 |
78% |
PDB75-550S24-C4 |
|
600 |
400-800 |
12 |
8.33 |
120 |
80% |
PDB100-600S12-C4 |
|
650 |
100-1200 |
15 |
2.67 |
150 |
76% |
PDB40-650S15-C4 |
|
800 |
300-1300 |
24 |
4.16 |
200 |
86% |
PDB100-800S24-C4 |
|
24 |
18-36 |
05&12 |
10&8.33 |
100&120 |
82% |
PDB150-24D05&12- C2 |
|
DUAL |
24 |
18-36 |
12&24 |
4&4.16 |
120&200 |
84% |
PDB150-24D12&24 C2 |
24 |
18-36 |
05&24 |
10&4.16 |
100&200 |
83% |
PDB150-24D05&24-C2 |
|
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.

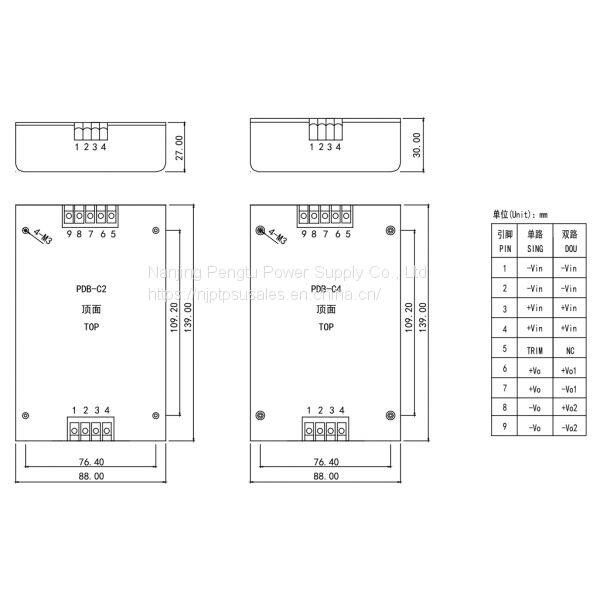

※Mechanical Drawing & Pin definition
