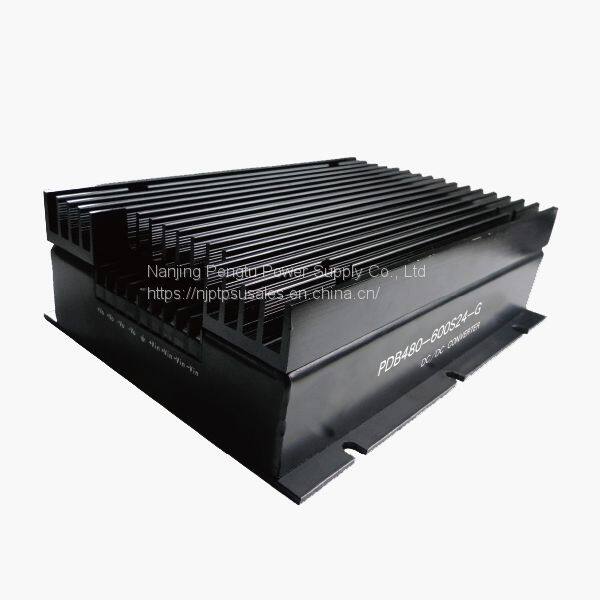

PDB-G Series 400-500W Single 12/24/48V Power Supply Converter

PDB-G series 400-500W single 12/24/48V power supply converter.Product details are as follows:

※Features

●Π type input filter

●2X voltage input

●Output short circuit protection

●Easy installation, single side pin out

●Best case attaching mode

●Design for high reliability, long lifetime

Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.

※Input Characteristic

Voltage Range

24VDC (Normal Rated Value): 18～36 VDC

48VDC (Normal Rated Value): 36～72 VDC

110VDC (Normal Rated Value):66-154 VDC

600VDC (Normal Rated Value):400～800VDC

※Output Characteristic

●Voltage set-point accuracy ……±2%

●Line Regulation (main) ……±0.5%

●Load regulation (main) ……±0.5%

●Output Current Limiting ………………120%(Tye)

●Output Current ………………………………5～40A for option

●Output Voltage ………………………………5～110V

●Power ……………………………………………400-500w

※General Characteristic

●Switching frequency ………100-200 KHz

●Isolation resistance ………200 MΩ

※Isolation voltage

●Input-output: >1500 VDC

●Input-case: >1050 VDC

●Output-case: >500 VDC

※Environmental Characteristic

●Substrate Working Temperature ………Industry: -25-+85℃

MilitaryⅠ:-40-+85℃

MilitaryⅡ:-55-+85℃

●Storage temperature ……………………Industry: -45-+105℃

                         Military:-55-+105℃

※Dimensions:200.00*148.00*59.00mm

※Protection Features

●Input under voltage protection       ●Output short circuit protection

●Input over voltage protection        ●Output over current protection

●Over temperature protection

※Model selection

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.

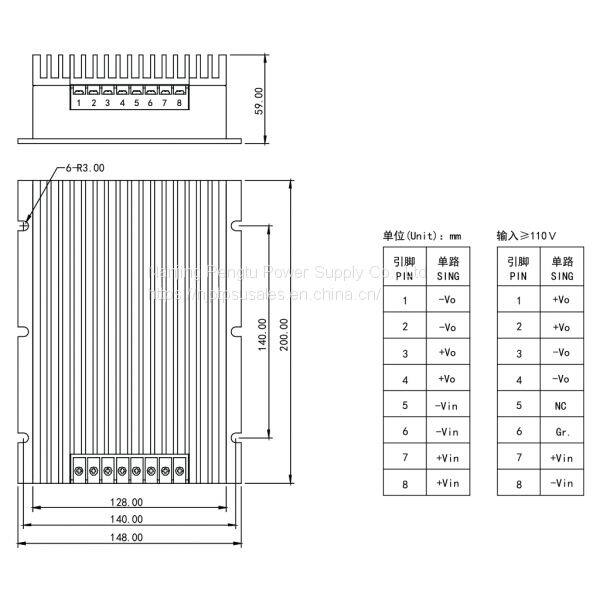

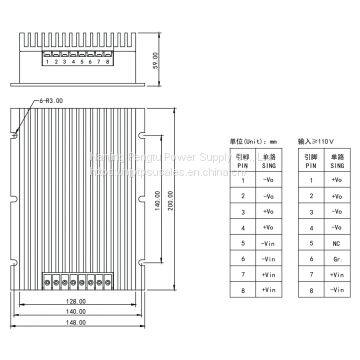

※Mechanical Drawing & Pin definition
