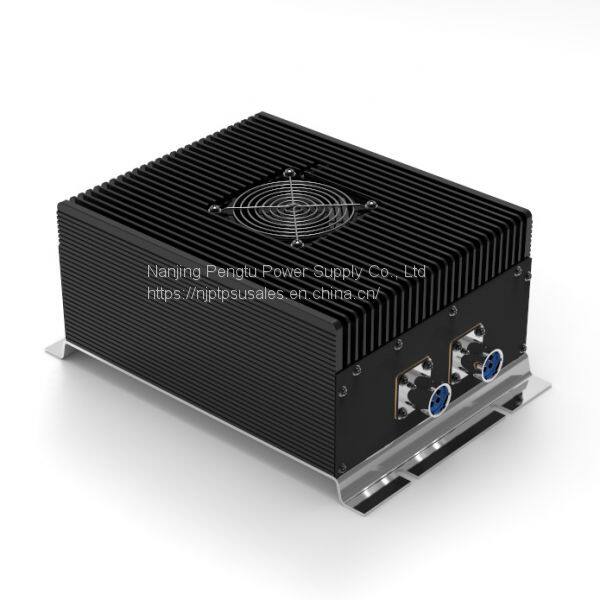

PDE-F series 1000-1500W single 24/48/110V converter.Product details are as follows:
※Features
●Π type input filter
●High Output current and power
●Design for high reliability, long lifetime
●Wide range of power, easy to upgrade
●Easy installation
●Full load efficiency up to 90%
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
24VDC (Normal Rated Value): 18 ~ 36 VDC
48VDC (Normal Rated Value): 36 ~ 72 VDC
110VDC (Normal Rated Value): 66 ~ 154 VDC
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (main) ……±0.5%
●Load regulation (main) ……±0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………5～100A for option
●Output Voltage ………………………………12～48V
●Power ……………………………………………1000-1500w
※General Characteristic
●Switching frequency ………160-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃
※Dimensions:288.00*195.00*124.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection ●Output over current protection
●Over temperature protection
※Model selection
Input V. (Vdc) |
Input V. range (vdc) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (Typ) |
Models |
|
SING |
24 |
18-36 |
24 |
41.67 |
200 |
86% |
PDE1000-24S24-F |
48 |
36-72 |
24 |
62.5 |
200 |
86% |
PDE1500-48S24-F |
|
110 |
66-154 |
48 |
20.8 |
300 |
86% |
PDE1000-110S48-F |
|
110 |
66-154 |
110 |
13.6 |
600 |
87% |
PDE1500-110S110-F |
|
Remark:(1) Output ripple noise (Peak-Peak) is adopted the module power supply test instruction on the page 59-60.
(2)Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.
※Mechanical Drawing & Pin definition
