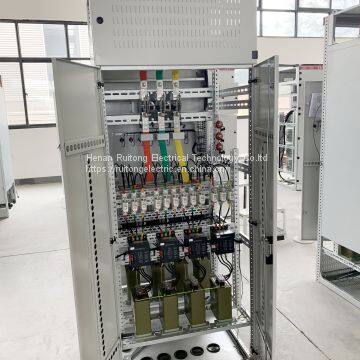

Help CenterTSVG Type Low-voltage Reactive Power Compensator Var Compensation Set
Related Products
-
Voltage Regulating Type Auto Var Compensator DTWUS$ 9899 - 9999MOQ: 1 Set -
SVC High Voltage Static Var Compensator Device For Reactive Power CompensationUS$ 12890 - 15980MOQ: 1 Set
-
Ruitong High Quality High-voltage Static Var Generator For Reactive Power CompensationUS$ 9899 - 9999MOQ: 1 Set
-
High-voltage Line Var Compensator GXWUS$ 7900 - 8999MOQ: 1 Set
-
Ruitong Low-voltage Static Var Generator For Reactive Power CompensationUS$ 9899 - 12890MOQ: 1 Set
|
Product Overview: The RT-TSVG type low-voltage var compensator is composed of a thyristor switching capacitor (TSC) unit and a static var generator (SVG) unit, controlled uniformly by a controller. Equipment procurement cost was instantly reduced by this way, and constant stepless reactive power regulation was realized as well. |
|
Product Features: -- The output reactive power can be continuously adjusted within the complete machine capacity; dynamic response time ≤ 20ms; -- The power factor can be up to 1 in the whole process (provided that the total compensation capacity is sufficient); -- SVG var generator branch can output reactive power in both directions; the remaining capacity of SVG var generator branch can enable active power filtering; -- TSC switching capacitor adopts the transient switching technology, which causes no inrush current; -- SVG var generator adopts the inversion doubling technology to reduce ripple current; -- Strict thermal design ensures safe and reliable system operation; multiple software and hardware anti-interference measures ensure strong anti-interference ability, and reliable operation; -- Self-checking function and overvoltage protection, over current protection and other hardware protection functions ensure stable and reliable operation of the equipment; -- Automatic detection of system voltage, current, and system power factors in active, reactive, pre-compensation, and post-compensation status. -- Digital control and parameter settings are displayed on a 7-inch touch screen with switchable Chinese and English display, capable of waveform display, harmonic content display and event recording; -- RS485 interface, standard MODBUS communication protocol, and computer remote monitoring; -- Automatic detection of system voltage, current, and system power factors in active, reactive, pre-compensation, and post-compensation status. -- Digital control and parameter settings are displayed on a 7-inch touch screen with switchable Chinese and English display, capable of waveform display, harmonic content display and event recording; |
|
-- Power factor: the power factor can be up to 1 in the whole process (provided that the capacity of the complete machine is sufficient); -- Response time: ≤ 20ms -- Switching inrush current: none; -- Audio noise: ≤50Db; -- Protection function: abnormal voltage protection, over current protection, over heating protection, system fault protection; -- Active power loss: full load loss -- Current detection mode: optional between source current detection or load current detection modes. |
