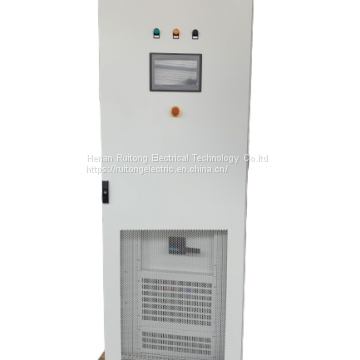

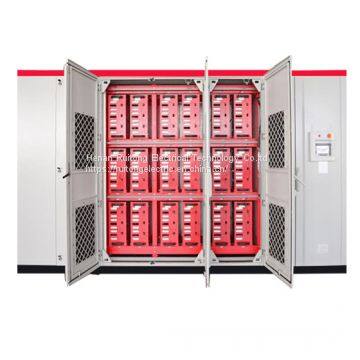

Help CenterSVC High Voltage Static Var Compensator Device For Reactive Power Compensation
Related Products
-
Ruitong High Quality High-voltage Static Var Generator For Reactive Power CompensationUS$ 9899 - 9999MOQ: 1 Set -
High-voltage Line Var Compensator GXWUS$ 7900 - 8999MOQ: 1 Set
-
Ruitong Low-voltage Static Var Generator For Reactive Power CompensationUS$ 9899 - 12890MOQ: 1 Set
-
Low-voltage Reactive Power Compensation Set TSC Type Reactive Power GeneratorUS$ 9980 - 15980MOQ: 1 Set
-
High-voltage Static Var Generator With IGBT System For Reactive Power CompensationUS$ 12690 - 25800MOQ: 1 Set
|
Product Overview: The high voltage static var compensator (SVC) is generally composed of a fixed capacitor bank (FC), an adjustable reactor and a control system. There are two different types of adjustable reactors: (1) Thyristor Controlled Reactor (TCR); (2)Magnetically Controlled Reactor (MCR). Working principle: The fixed capacitor bank provides capacitive reactive power-Qc under the fundamental wave, the controllable reactor provides inductive reactive power Qt, and the load reactive power is QI, then the grid-provided reactive power Q=QI-Qc + Qt. Due to the continuous and fast adjustment of Qt, the reactive power provided by the grid tends to zero or a certain value through the fast follow-up of the inductive reactive power of the controllable reactor.
|
|
Main Technical Parameters: -- Rated voltage: 6kV, 10kV, 35kV -- Rated frequency: 50Hz; -- Rated capacity: -- Dynamic adjustment range: 0 - 100%; -- Machine response time: ≤ 20ms; -- Control System: DSP Full Digital Controller -- Control mode: constant reactive power, constant power factor; -- Thyristor triggering mode: fiber triggering; -- Adjustment mode: three-phase adjustment separated phase adjustment |
