Help CenterRuitong High Quality High-voltage Static Var Generator For Reactive Power Compensation
Related Products
-
High-voltage Line Var Compensator GXWUS$ 7900 - 8999MOQ: 1 Set -
Ruitong Low-voltage Static Var Generator For Reactive Power CompensationUS$ 9899 - 12890MOQ: 1 Set
-
Low-voltage Reactive Power Compensation Set TSC Type Reactive Power GeneratorUS$ 9980 - 15980MOQ: 1 Set
-
High-voltage Static Var Generator With IGBT System For Reactive Power CompensationUS$ 12690 - 25800MOQ: 1 Set
-
DTW Type Voltage Regulating Type Auto Var Compensator DTWUS$ 20890 - 25980MOQ: 1 Set
|

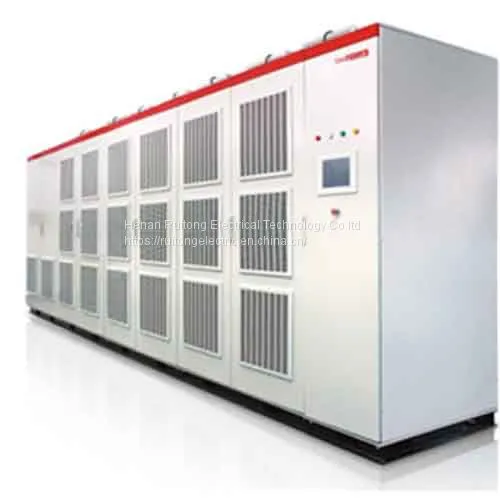

Product Overview: Ruitong RT-HSVG series high-voltage static var generator is a reactive power compensation system with the core of IGBT. It provides capacitive or inductive reactive power quickly and continuously, and realizes constant reactive power, constant voltage and constant power factor control at the checkpoint, ensuring the stable, efficient and high-quality running of the power system. In the distribution network, small and medium-sized RT-HSVG products are installed near the special loads (such as electric arc furnaces) to significantly improve the quality of power at the connection point between the load and the public grid, such as improving the power factor, overcoming the three-phase imbalance, eliminating voltage flicker and voltage fluctuations, and suppressing harmonic pollution. |
|
Main Technical Parameters: -- Rated operating voltage: 6kV, 10kV, 27.5kV, 35kV; -- Output reactive range: continuous change from inductive rated reactive power to capacitive rated reactive power; --Total harmonic distortion rate of output voltage (before grid connection): ≤ 5%; -- Total harmonic distortion rate of output current THD: ≤ 3%; -- Setting range of system voltage imbalance protection: 4% to 10%; -- Man-machine interface: Colored touch screen display in Chinese; relative humidity: monthly average no more than 90% (25℃) without condensation; -- Altitude: -- Rated capacity: ±1 - ±100Mvar; -- Response time: ≤ 5ms -- Overload capability: 1.2-time overload for 1min; -- Efficiency: rated operating condition ≥ 99.2%; --- Operating temperature: -20℃ - +40℃; -- storage temperature: -40℃ - +65℃; seismic intensity: ≤ 8 degrees. |
