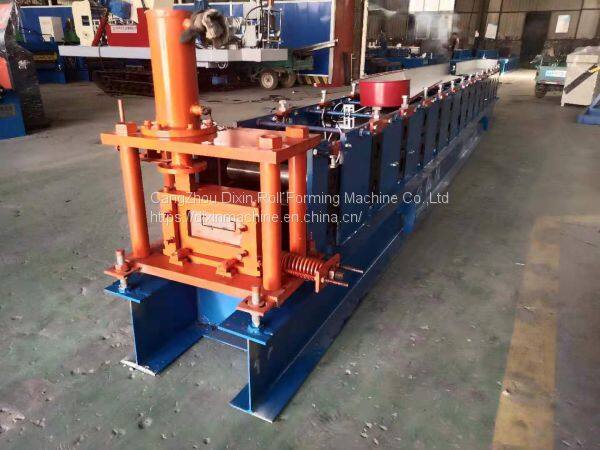

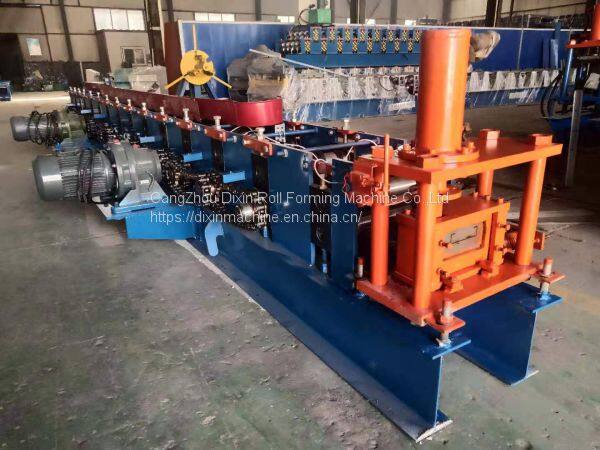

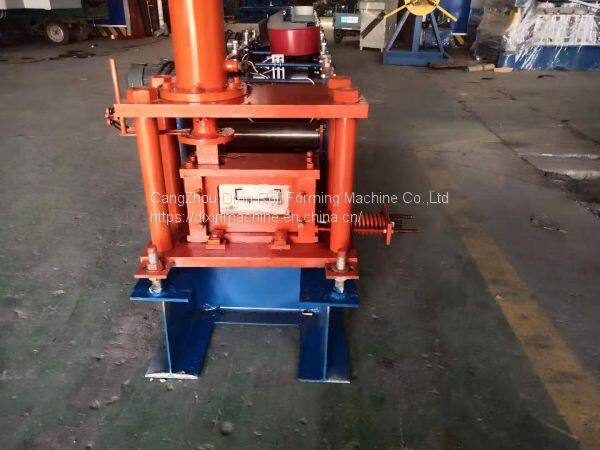

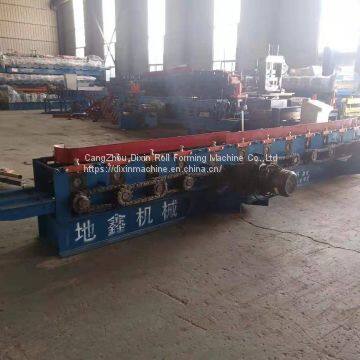

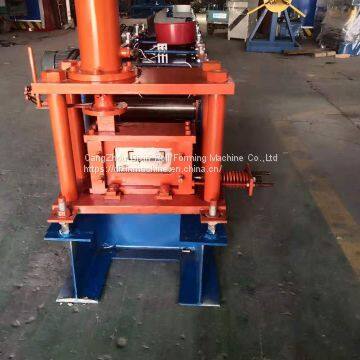

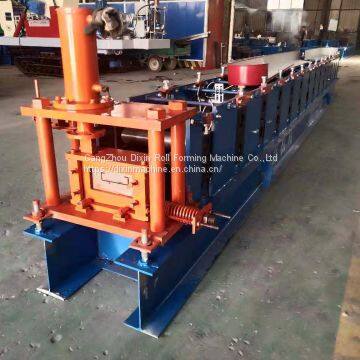

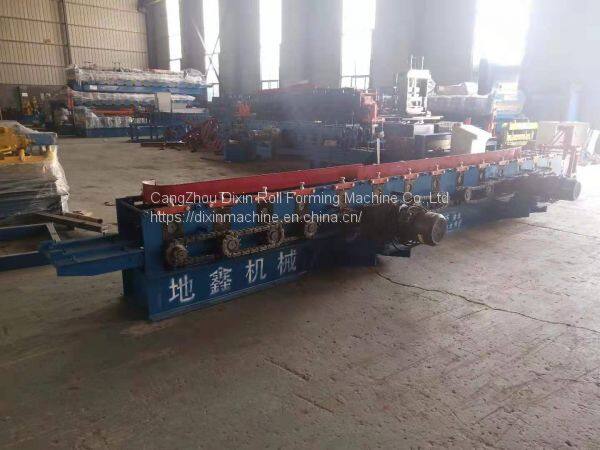

High Efficiency Steel Profile C purlin roll forming machine

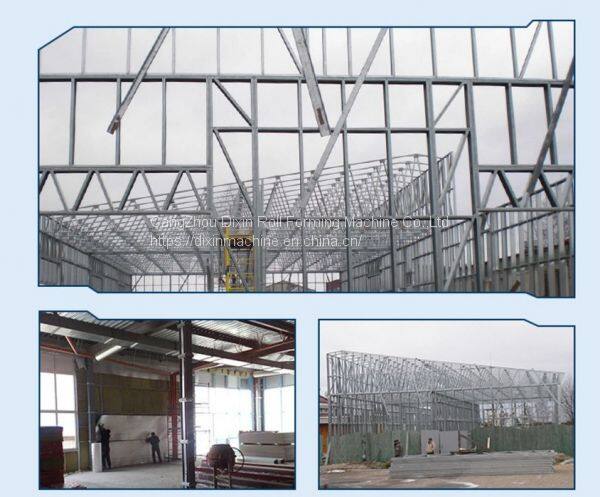

C purline formed by C purline forming machine,advantages of well compressive strength and flatness; automatioc measureing, cutting and punching; high-level of automation and conveniently installation.It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.
Technical parameter
| Raw material | metal steel sheet |
| Feeding width | depend on profile |
| Material thickness | 0.3-1.5mm |
| Roll steps | depend on profile and your require |
| Large frame | 350H-beam / 400H-beam / 450 H-beam |
| Roller shaft diameter | φ70mm / φ75mm / φ80mm |
| Middle plate | 16-25mm |
| Chain size | 1 inch / 1.2 inch / 1.5 inch |
| Voltage power supply | customized |
| Roll forming motor | 4KW |
| Pump station power | 3KW |
| Transducer power | 5.5KW |
| Cutting blade material | Cr12 |
| Control system | PLC control system |
| Production capacity | 0-12m/min |
| Warranty | 12 month |
| Maintain | easily: timely adding oil |
| Package | seaworthy packing |
We are well recognized manufacturer and supplier of Cold Roll Forming Machine which are supplied to various industries across the nation. Our products are technically advance and designed with the use of latest standard features and functions. These products are highly durable and easy to use. We guarantee superior quality which are duly tested and provided in stipulated time frame.
Service
1. We can produce the specialmachine,send your drawing to us,we can desgin for you.
2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100
4. Engineer available to service machinery overseas.
5. If you come to visit our factory ,we can book the room for you,car pick up to send.
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
If you have any questions please contact me
1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
machine in my factory?
2.How to visit our company:
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou West station (1 hour),then we can pick up you.
B.Fly to Tianjin Airport: By high speed train From Tianjin West station to Cangzhou West station ,then we can pick up you.
