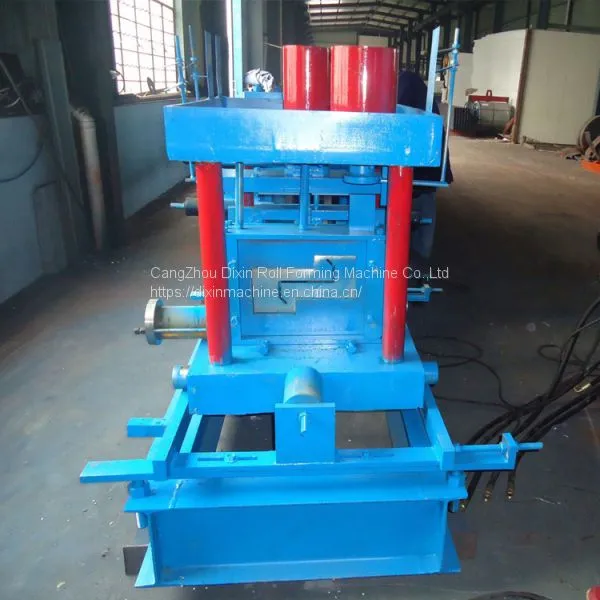

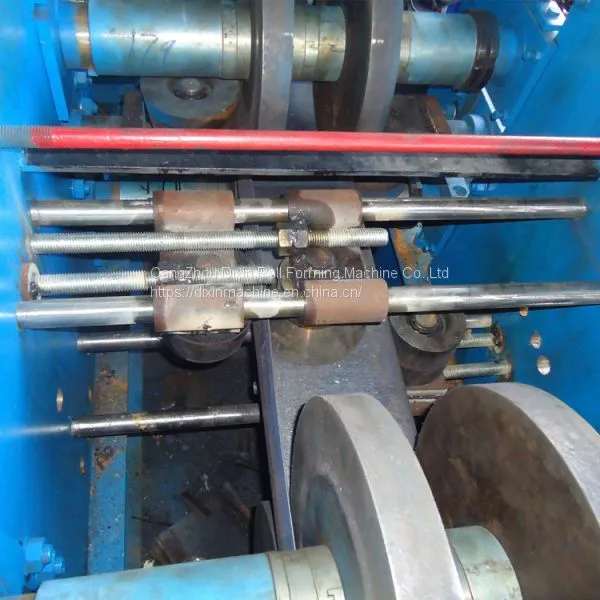

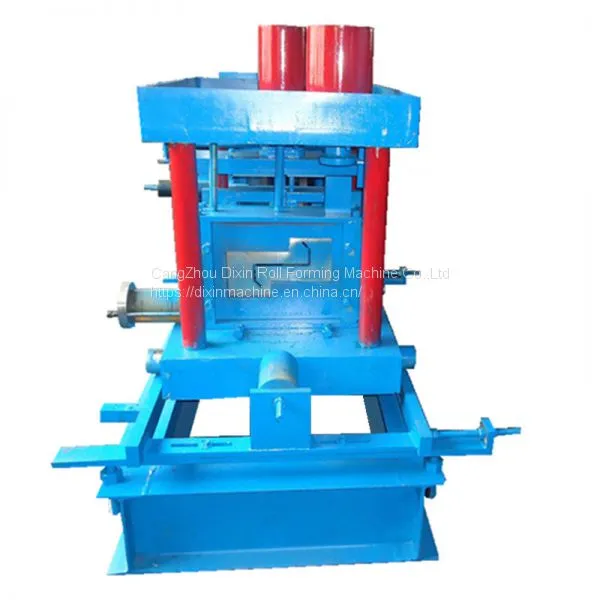

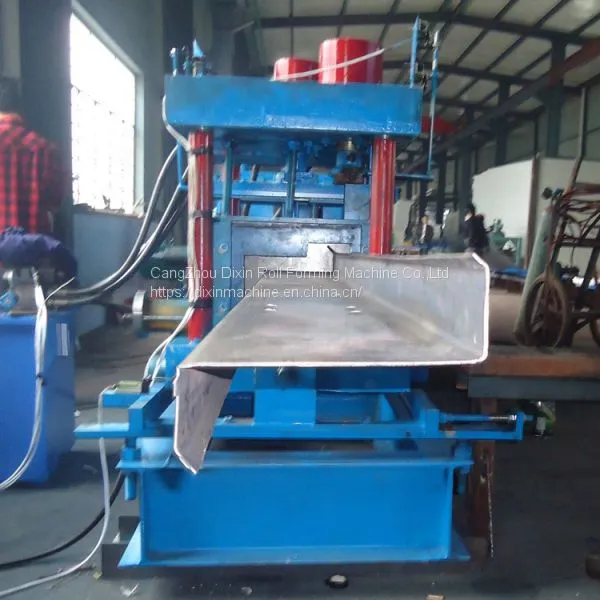

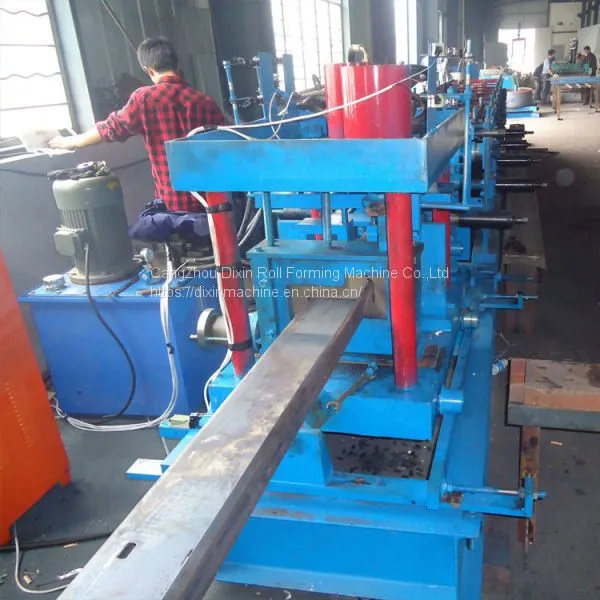

Automatic Z Purlin Steel Profile Automatic Roll Forming Machine

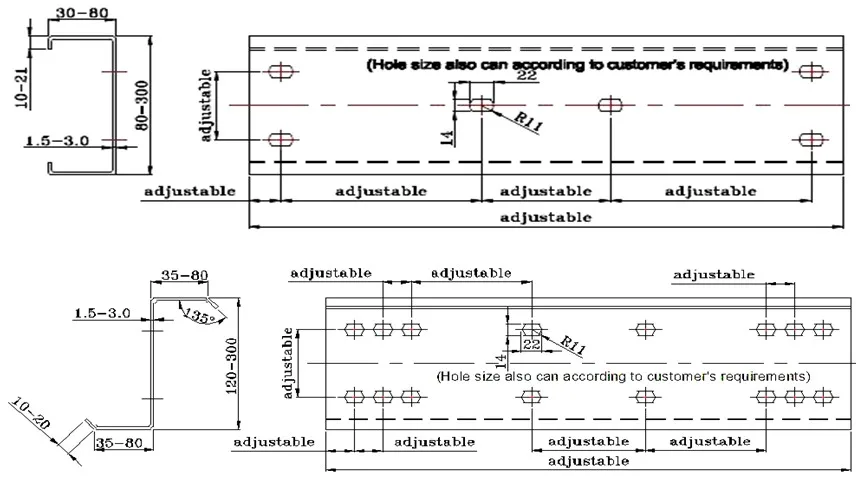

C/Z purlin interchangeable rollformer can produce C, Z profiles. Produce from C to Z purlin by switch one side roller, only need about 15 minutes. This machine also can adjust roller horizontal distance to achieve C or Z purlins of the width with high precision automatic. And also save time and increase production.
No. |
Item |
Specification |
1 |
Can Formed Material |
PPGI,GI,AI |
2 |
Equipment operation |
Automatic |
3 |
Voltage |
380V 60Hz 3Phase or as your requirement |
4 |
Thickness of sheet (mm) |
0.3-1.0mm |
5 |
Material width(mm) |
As your requirement |
6 |
Cover Width of the sheet after formed |
as your drawing |
7 |
The size of the roll forming machine |
6000mmx800mmx1400mm |
8 |
Speed |
8-15m/min |
9 |
Diameter of shaft |
45mm |
10 |
Weight of the Machine |
3000-3500KGS |
11 |
Material of rollers |
C45 steel quenched and chromed |
12 |
Motor brand |
Siemens or Guomao |
13 |
PLC |
Siemens or Delta or Mitsubushi |
14 |
Total power (kw) |
11kw |
15 |
Power of hydraulic system |
5.5kw |
16 |
Power of main molding core |
5.5kw |
working flow
Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,or Shanghai ,how to visit your company?
A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
