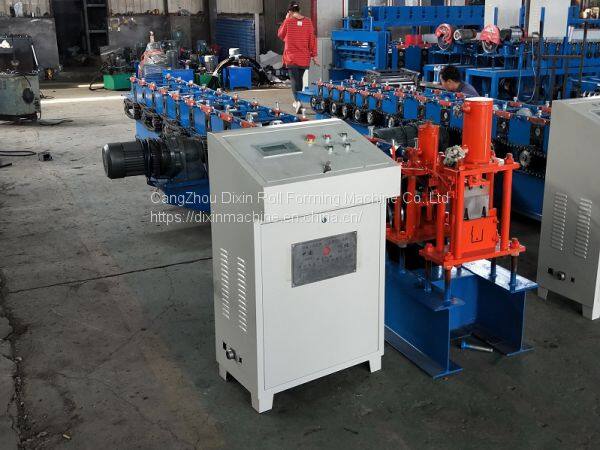

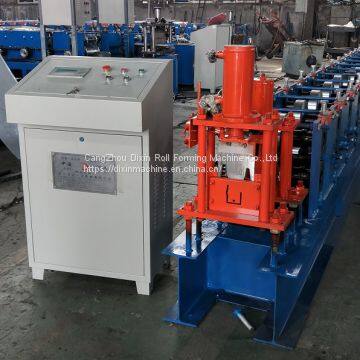

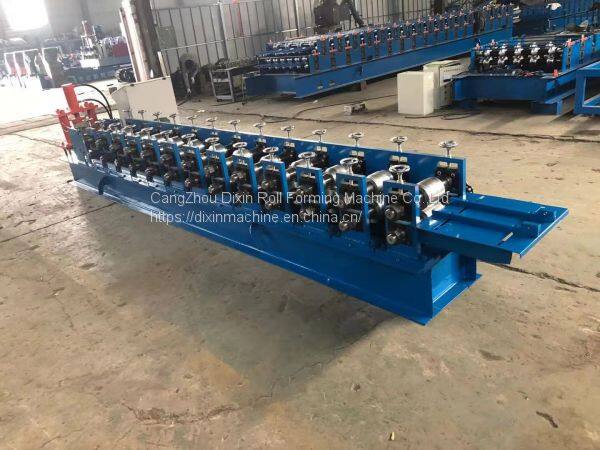

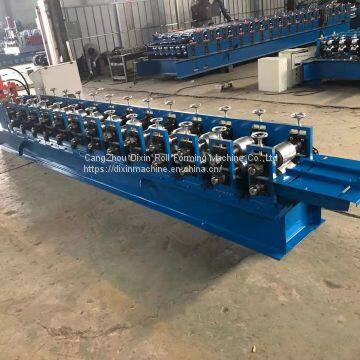

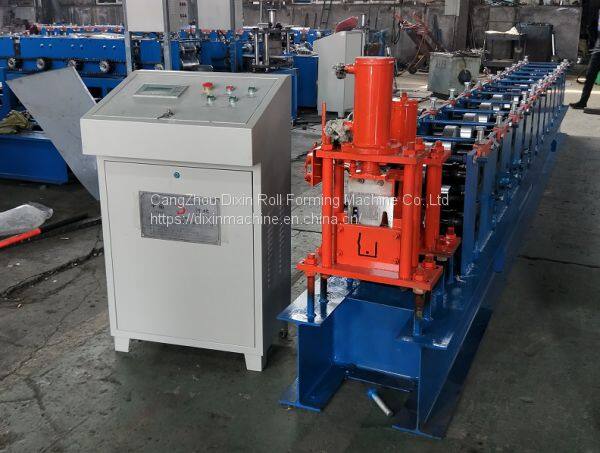

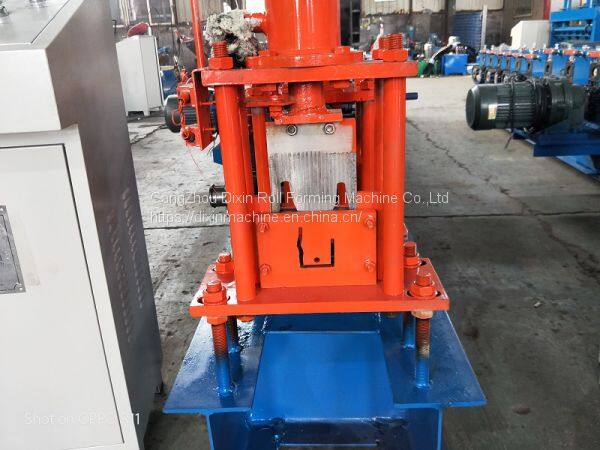

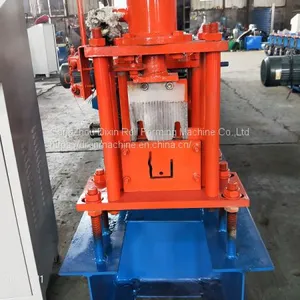

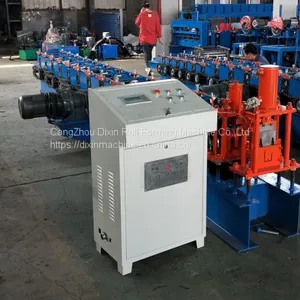

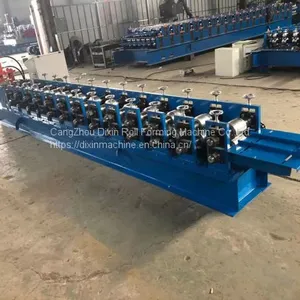

Light Steel Profile Keel Making Equipment Light gauge forming machine
More about us
We can customize your panel profile drawing well.
We have the most excellent technician.
Dixin automatic a very convenient machine building material making machinery steel sheet roof & Wall panel forming machine
Technical parameter
| 1 | Main motor power | 4kw/3 phase (or as your request) |
| 2 | Hydraulic motor power | 3kw |
| 3 | Hydraulic pressure | 10~12MPa |
| 4 | Voltage | 380V/3 phase/50HZ (or as your request) |
| 5 | Control System | PLC Delta /Panasonic/Siemens/Schneider |
| 6 | Main Frame | 300/350mm H-Beam |
| 7 | Backboard Thickness | 17/20mm |
| 8 | Chain size | 1/2inch |
| 9 | Feeding material | color steel coils |
| 10 | Feeding thickness | 0.3~0.8mm |
| 11 | Feeding width | Better as your profile or from our design |
| 12 | Effective width | Better as your profile or from our design |
| 13 | Productivity | 0-3min |
| 14 | Roll station | 11~20 roll steps(according to different design) |
| 15 | Roller diameter | 75mm (according to different design) |
| 16 | Roller material | 45#steel |
| 17 | Cutter material | Cr12 |
| 18 | Cr-Plating size | 0.05mm |
| 19 | Overall size | 5000mm*1000mm*1500mm |
| 20 | Total weight | 2~5T |
Working flow

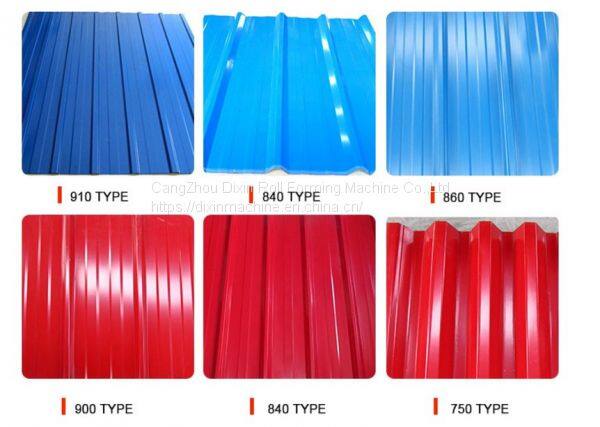

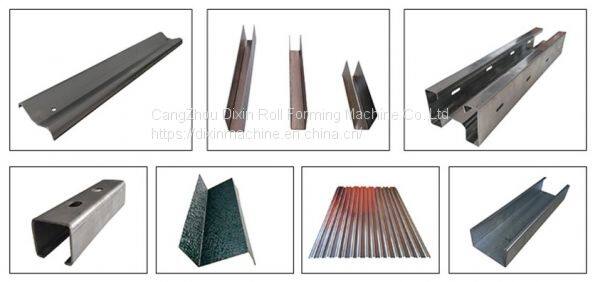

More type maybe you need
In the current industry leader in roll forming machine, can according to the requirements of customers design and production, we have more than 10 years of production experience, and products sold to all over the world, especially in South Asia, southeast Asia, the Middle East, Africa and South America, very popular, and receives the customer the consistent high praise, has many long-term cooperation customers, we pursue the quality of the service and machine experience, the constant pursuit of innovation and high-tech research and development, is committed to customers reduce costs, our sales mode of production is high, low profit.
Our company
Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
Our service
1. We can produce the specialmachine,send your drawing to us,we can desgin for you.
2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100
4. Engineer available to service machinery overseas.
5. If you come to visit our factory ,we can book the room for you,car pick up to send.
FQA
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,or Shanghai ,how to visit your company?
A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
