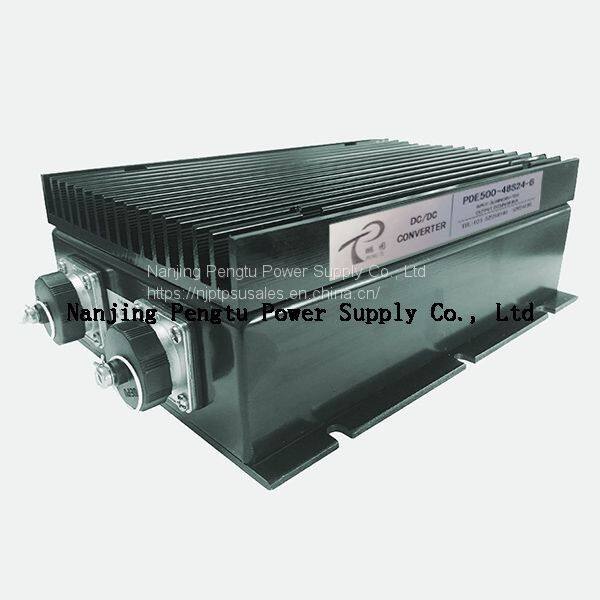

PDE-B Series dc to dc converter 24v/48v/110v.Product details are as follows:
※Features
●Π type input filter
●2X voltage input
●Output short circuit protection
●Easy installation
●Best case attaching mode
●Design for high reliability,long lifetime
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value):66-154 VDC
600VDC (Normal Rated Value):400～800VDC
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (main) ……±0.5%
●Load regulation (main) ……±0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………5～40A for option
●Output Voltage ………………………………12～110V
●Power ……………………………………………400-500w
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃
※Dimensions:200.00*148.00*69.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Over temperature protection ●Output over current protection
※Model selection
Input V. (Vdc) |
Input V. range (vdc) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (Typ) |
Models |
|
SING |
24 |
18-36 |
24 |
20.8 |
200 |
90% |
PDE500-24S24-B |
48 |
36-72 |
24 |
20.8 |
200 |
90% |
PDE500-48S24- B |
|
110 |
66-154 |
24 |
20.8 |
200 |
91% |
PDE500-110S24-B |
|
600 |
400-800 |
24 |
20.8 |
200 |
92% |
PDE500-600S24-B |
|
600 |
400-800 |
48 |
10.4 |
300 |
92% |
PDE500-600S48-B |
|
600 |
400-800 |
110 |
4.5 |
600 |
92% |
PDE500-600S110-B |
|
DUAL |
48 |
36-72 |
12&24 |
8.3*12.5 |
120&200 |
86% |
PDE400-48D12&24-B |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.

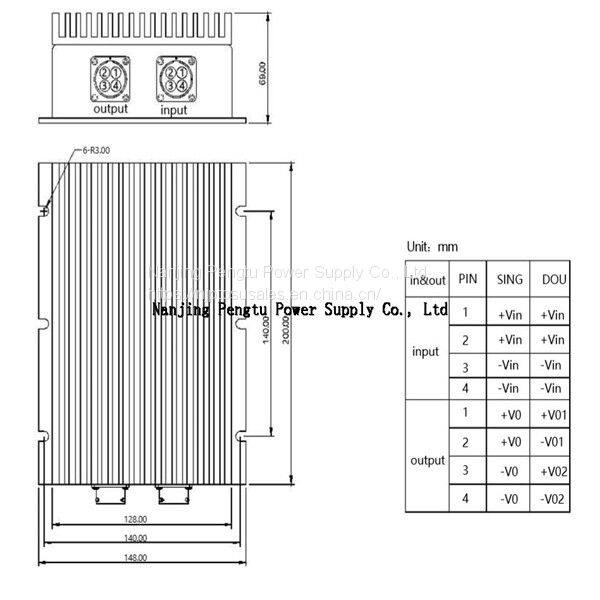

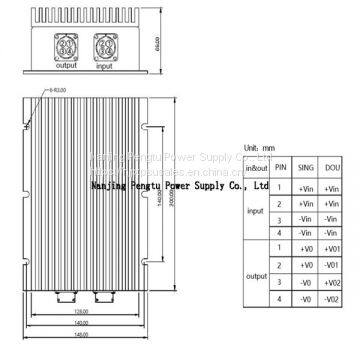

※Mechanical Drawing & Pin definition
