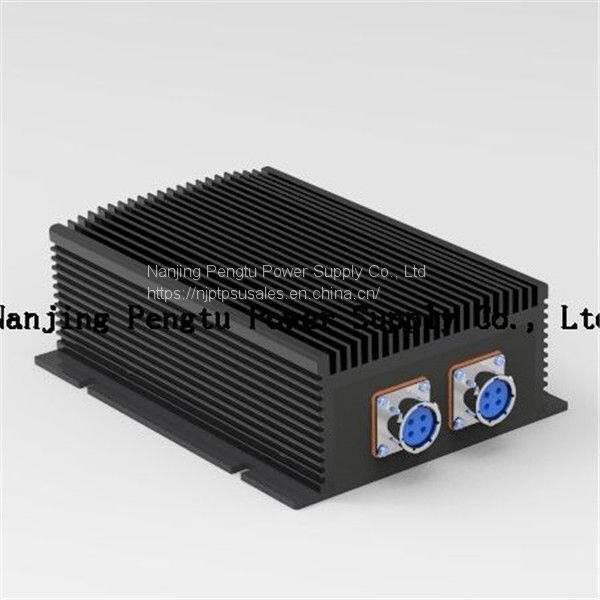

PDE-D series dc dc converter 48v to 24v 1000w

PDE-D series dc dc converter 48v to 24v 1000w.Product details are as follows:

※Features

●High Output current and power

●Design for high reliability, long lifetime

●Wide range of power, easy to upgrade

●Easy installation

●Full load efficiency up to 90%

Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.

※Input Characteristic

Voltage Range

24VDC (Normal Rated Value): 18 ~ 36 VDC

48VDC (Normal Rated Value): 36 ~ 72 VDC

110VDC (Normal Rated Value): 66 ~ 154 VDC

※Output Characteristic

●Voltage set-point accuracy ……±2%

●Line Regulation (main) ……±0.5%

●Load regulation (main) ……±0.5%

●Output Current Limiting ………………120%(Tye)

●Output Current ………………………………5～50A for option

●Output Voltage ………………………………5～48V

●Power ……………………………………………600-1000w

※General Characteristic

●Switching frequency ………160-200 KHz

●Isolation resistance ………200 MΩ

※Isolation voltage

●Input-output: >1500 VDC

●Input-case: >1050 VDC

●Output-case: >500 VDC

※Environmental Characteristic

●Substrate Working Temperature ………Industry: -25-+85℃

MilitaryⅠ:-40-+85℃

MilitaryⅡ:-55-+85℃

●Storage temperature ……………………Industry: -45-+105℃

                          Military:-55-+105℃

※Dimensions:240.00*182.00*81.00mm

※Protection Features

●Input under voltage protection       ●Output short circuit protection

●Input over voltage protection        ●Output over current protection

●Over temperature protection

※Model selection

Remark:(1) Output ripple noise (Peak-Peak) is adopted the module power supply test instruction on the page 59-60.

(2)Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.

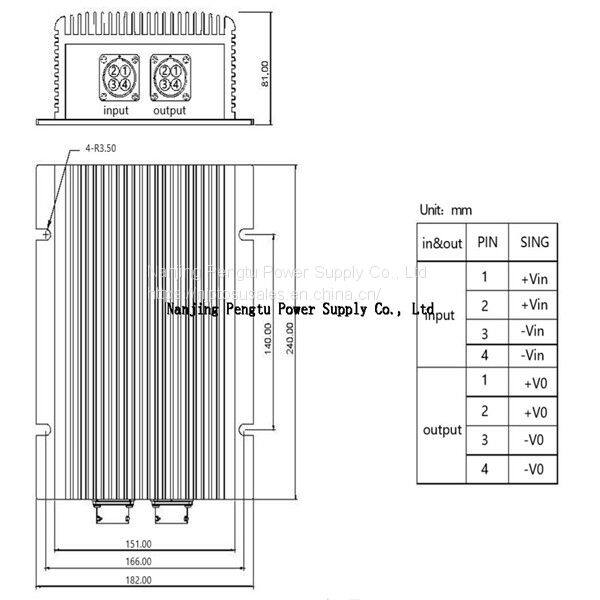

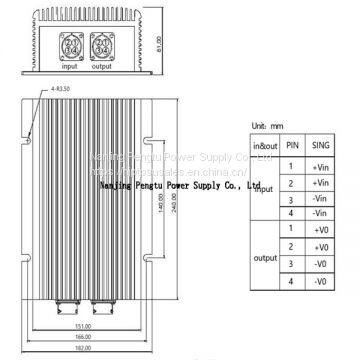

※Mechanical Drawing & Pin definition
