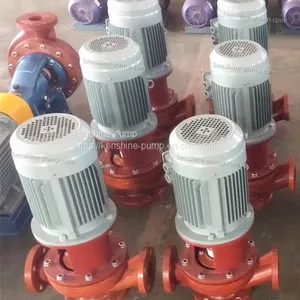

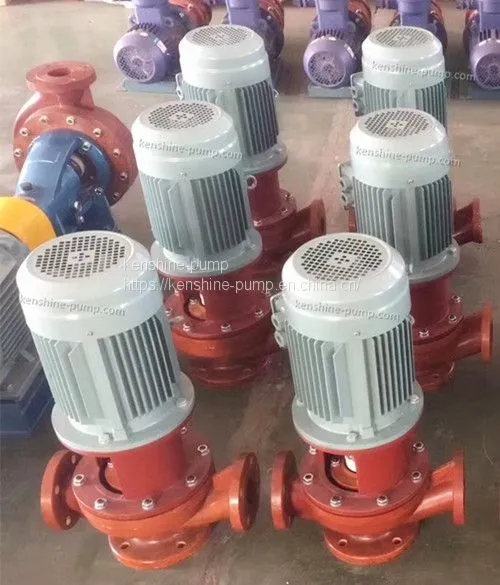

SL vertical fiberglass centrifugal pump is a new type of energy-saving fiberglass material centrifugal pump. SL vertical fiberglass centrifugal pump can be used in a variety of need to transport concentrated hydrochloric acid and concentrated sulfuric acid etc corrosive medium. It is the durable pump as a single stage single suction channel centrifugal pump.
The over-flow part for SL Vertical fiberglass centrifugal pump is made of modified phenolic glass fiber reinforced plastic after high temperature and high pressure. The pump has the advantages of super corrosion resistance, high temperature resistance, lightweight weight, high strength without deformation. Designed structure of the pump is advanced, simple and reasonable. The maintenance is very convenient with high efficiency, energy saving characteristics.
SL vertical fiberglass reinforced plastic centrifugal pump has a wide range of specific medium to transport a variety of concentrated hydrochloric acid, dilute sulfuric acid, non-oxidizing strong acid, organic acid, inorganic salts etc. SL Vertical fiberglass reinforced plastic centrifugal pump is widely used in chemical, petrochemical, pharmaceutical, pesticide, daily chemical, chemical fiber, water treatment, machinery, metallurgy, environmental protection and other industries in the field of corrosion resistance.
Model meaning:
SL40-20
SL: Vertical fiberglass centrifugal pump
40: pump inlet and outlet (mm)
20: pump head
| Model | Flow | Head | Speed | NPSH | Efficiency | Motor power |
| m/h3 | m | r/min | m | ％ | kw | |
| SL25-12.5 | 3.2 | 12.5 | 2900 | 3 | 37 | 0.55 |
| SL40-20 | 6.3 | 20 | 2900 | 3 | 45 | 1.1 |
| SL50-20 | 12.5 | 20 | 2900 | 3 | 57 | 2.2 |
| SL50-32 | 12.5 | 32 | 2900 | 3 | 47 | 3/4 |
